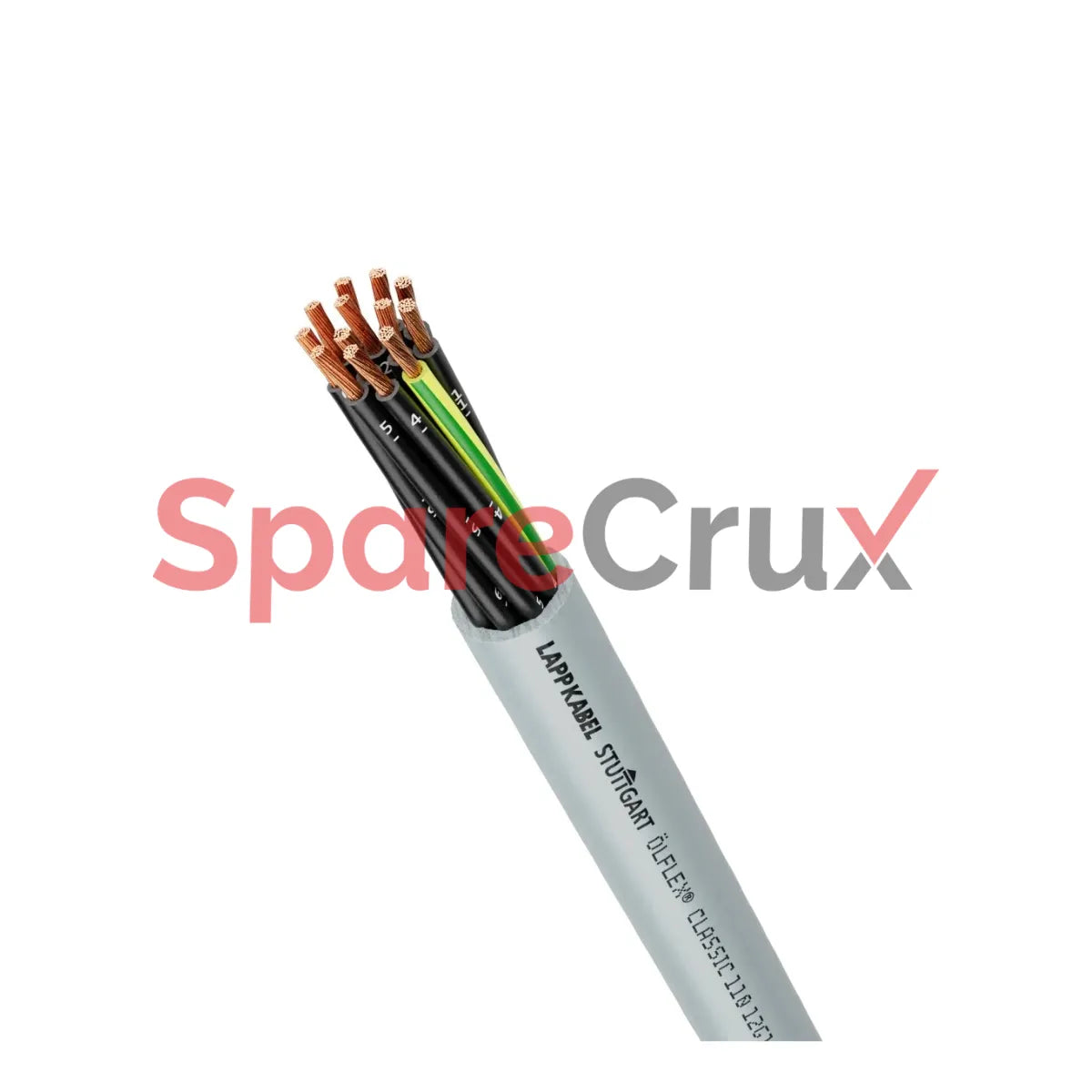

ÖLFLEX® CLASSIC 110 | LAPP GROUP | Power And Control Cable 3g0 5 U0u 300 500v Pvc

₹ 90.25

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

ÖLFLEX® CLASSIC 110

Original Equipment Manufacturer

LAPP GROUP

説明

Specification Details
Brand ÖLFLEX®
Product type Power and Control Cable
Weight 42 kg/km
Copper Index 14.4 kg/km
Nominal Voltage U0/U: 300/500 V AC rms according to IEC
Test Voltage 4 kV
Max. Conductor Resistance at 20°C 39 Ω/km
Mutual Capacitance (core/core, 800 Hz) Approx. 98 nF/km
Inductance (800 Hz) Approx. 0.722 mH/km
Cable Dimension 3G0.5
Conductor Cross-section 0.5 mm²
Conductor Material Bare Copper
Conductor Design IEC 60228 Class 5: Fine-wire
Including Protective Conductor Yes
Number of Cores 3
Stranding Type Layered Stranding
Shielded No
With Armouring No
Nominal Outer Diameter 5.1 mm
Shape of Cable Round
Application Area Flexible, Fixed Installation, Cable Chain, Torsion
For Continuous Flexing Yes
For Torsional Load Yes
Minimum Bending Radius (Fixed Installation) 4 × outer diameter (20.4 mm)
Minimum Bending Radius (Dynamic, Continuously Flexing) 15 × outer diameter (76.5 mm)
Minimum Bending Radius (Occasionally Moved) 10 × outer diameter (51 mm)
