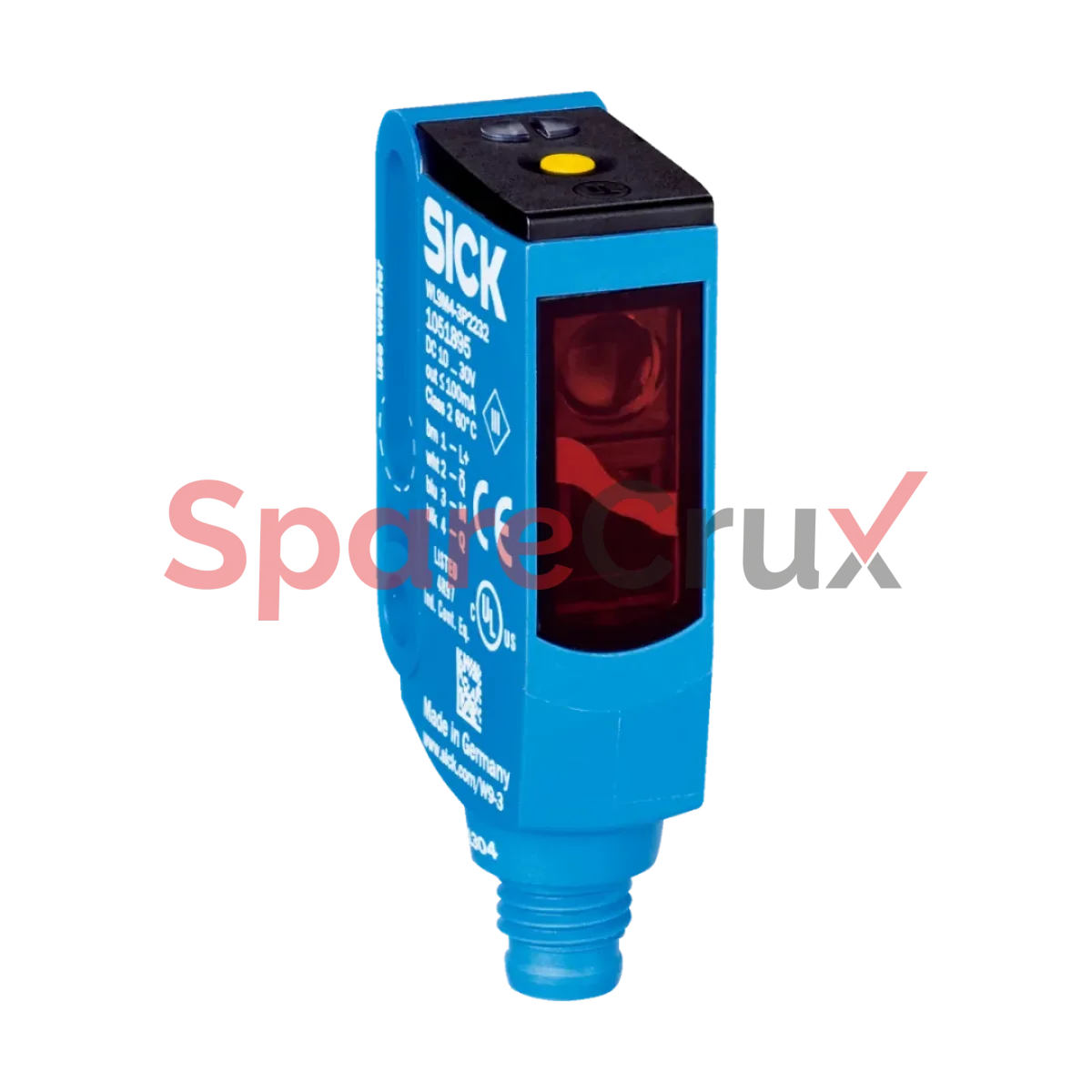

The WL9M4G-3P2232 is a compact, high-performance photoelectric sensor from SICK, designed to provide reliable object detection in various industrial applications. With a sensing range of up to 5 meters (with the PL80A reflector), this sensor is ideal for detecting transparent objects. It features a simple teach-in process, making setup effortless. Built with a robust housing and IP66/IP67/IP69K protection class ratings, the WL9M4G-3P2232 is perfect for use in harsh environments.
Product Specifications
Supply Voltage (UB): 10 V DC to 30 V DC
Ripple: < 5 Vpp
Current Consumption: 20 mA (without load)
Switching Output: PNP
Output Function: Complementary
Switching Mode: Light/dark switching
Output Current Imax: ≤ 100 mA
Response Time: < 0.5 ms
Switching Frequency: 1,000 Hz
Connection Type: Male connector M8, 4-pin
Housing Material: VISTAL® plastic
Optics Material: PMMA plastic
Protection Class: IP66, IP67, IP69K
Temperature Range: –40 °C to +60 °C (operating), –40 °C to +75 °C (storage)
Special Feature: Detects transparent objects
MTTFD: 1,232 years
Weight: 13 g
Service Life: 100,000 hours at +25 °C
LED Indicators: Yellow for status of received light beam, Green for power on
Applications
The WL9M4G-3P2232 is ideal for use in material handling, packaging, and assembly line applications, especially where transparent objects need to be detected.
The WL9M4G-3P2232 is a compact, high-performance photoelectric sensor from SICK, designed to provide reliable object detection in various industrial applications. With a sensing range of up to 5 meters (with the PL80A reflector), this sensor is ideal for detecting transparent objects. It features a simple teach-in process, making setup effortless. Built with a robust housing and IP66/IP67/IP69K protection class ratings, the WL9M4G-3P2232 is perfect for use in harsh environments.
Product Specifications
Supply Voltage (UB): 10 V DC to 30 V DC
Ripple: < 5 Vpp
Current Consumption: 20 mA (without load)
Switching Output: PNP
Output Function: Complementary
Switching Mode: Light/dark switching
Output Current Imax: ≤ 100 mA
Response Time: < 0.5 ms
Switching Frequency: 1,000 Hz
Connection Type: Male connector M8, 4-pin
Housing Material: VISTAL® plastic
Optics Material: PMMA plastic
Protection Class: IP66, IP67, IP69K
Temperature Range: –40 °C to +60 °C (operating), –40 °C to +75 °C (storage)
Special Feature: Detects transparent objects
MTTFD: 1,232 years
Weight: 13 g
Service Life: 100,000 hours at +25 °C
LED Indicators: Yellow for status of received light beam, Green for power on
Applications
The WL9M4G-3P2232 is ideal for use in material handling, packaging, and assembly line applications, especially where transparent objects need to be detected.
