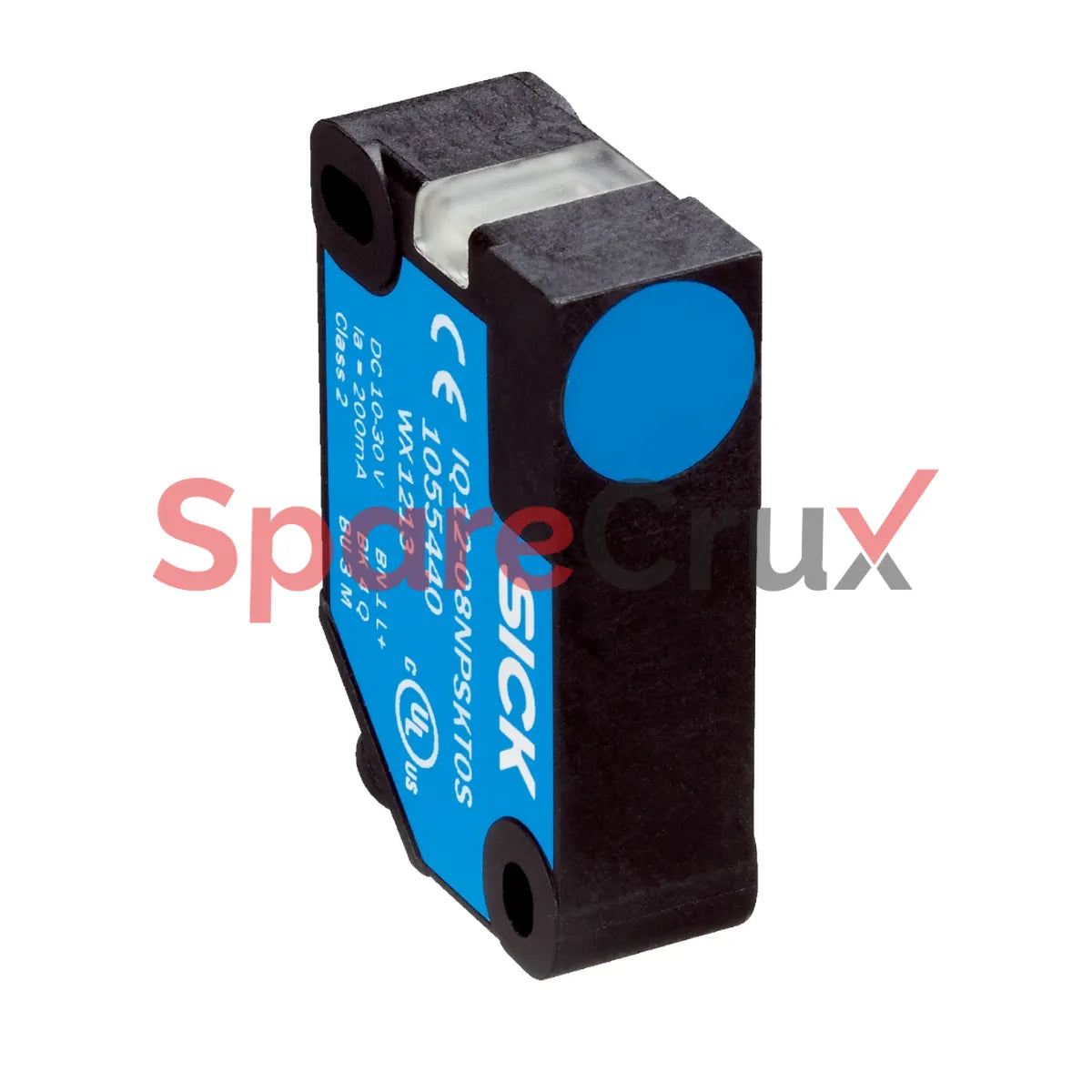

1055440 | SICK SENSORS | IQ12-08NPSKT0S Inductive Proximity Sensor

₹ 2,212.20

Get Best Price on WhatsApp

Product Description


Housing Rectangular
Dimensions (W × H × D) 12 mm × 40 mm × 26 mm
Sensing Range (Sn) 8 mm
Safe Sensing Range (Sa) 6.48 mm
Installation Type Non-flush
Switching Frequency 2,000 Hz
Connection Type Connector M8, 3-pin
Switching Output PNP
Output Function NO (Normally Open)
Electrical Wiring DC 3-wire
Enclosure Rating IP68
Supply Voltage 10 V DC … 30 V DC
Ripple ≤ 10 %
Voltage Drop ≤ 3 V
Time Delay Before Availability ≤ 100 ms
Hysteresis 5 % … 15 %
Reproducibility ≤ 2 %
Temperature Drift (of Sr) ± 10 %
EMC According to EN 60947-5-2

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


SPARECRUX is NOT an authorized distributor for SICK SENSORS

Manufacturer Part Number (MPN)

1055440

Original Equipment Manufacturer

SICK SENSORS

PDF Product Datasheet
  • 100% Tested & Verified Products

  • GST Invoice Available

  • Warranty Included

  • Trusted by 5000+ Industrial Buyers

Housing - Rectangular

Dimensions (W × H × D) - 12 mm × 40 mm × 26 mm

Sensing Range (Sn) - 8 mm

Safe Sensing Range (Sa) - 6.48 mm

Installation Type - Non-flush

Switching Frequency - 2,000 Hz

Connection Type - Connector M8, 3-pin

Switching Output - PNP

Switching Output Detail - PNP

Supply Voltage - 10 V DC ... 30 V DC

Ripple - ≤ 10 %¹

Voltage Drop - ≤ 3 V²

Time Delay Before Availability - ≤ 100 ms

Hysteresis - 5 % ... 15 %

Reproducibility - ≤ 2 %³ ⁴

Temperature Drift (of Sr) - ± 10 %

EMC - According to EN 60947-5-2

Continuous Current (Ia) - ≤ 200 mA

No Load Current - 10 mA

MTTFD - 1,730 years

DCavg - 0 %

TM (Mission Time) - 20 years

EU Declaration of Conformity - ✔

UK Declaration of Conformity - ✔

ACMA Declaration of Conformity - ✔

Moroccan Declaration of Conformity - ✔

China RoHS - ✔

cULus Certificate - ✔

ECLASS 6.0 - 27270101

ECLASS 7.0 - 27270101

ECLASS 8.0 - 27270101

ECLASS 9.0 - 27270101

ECLASS 10.0 - 27270101

ECLASS 11.0 - 27270101

ECLASS 12.0 - 27274001
