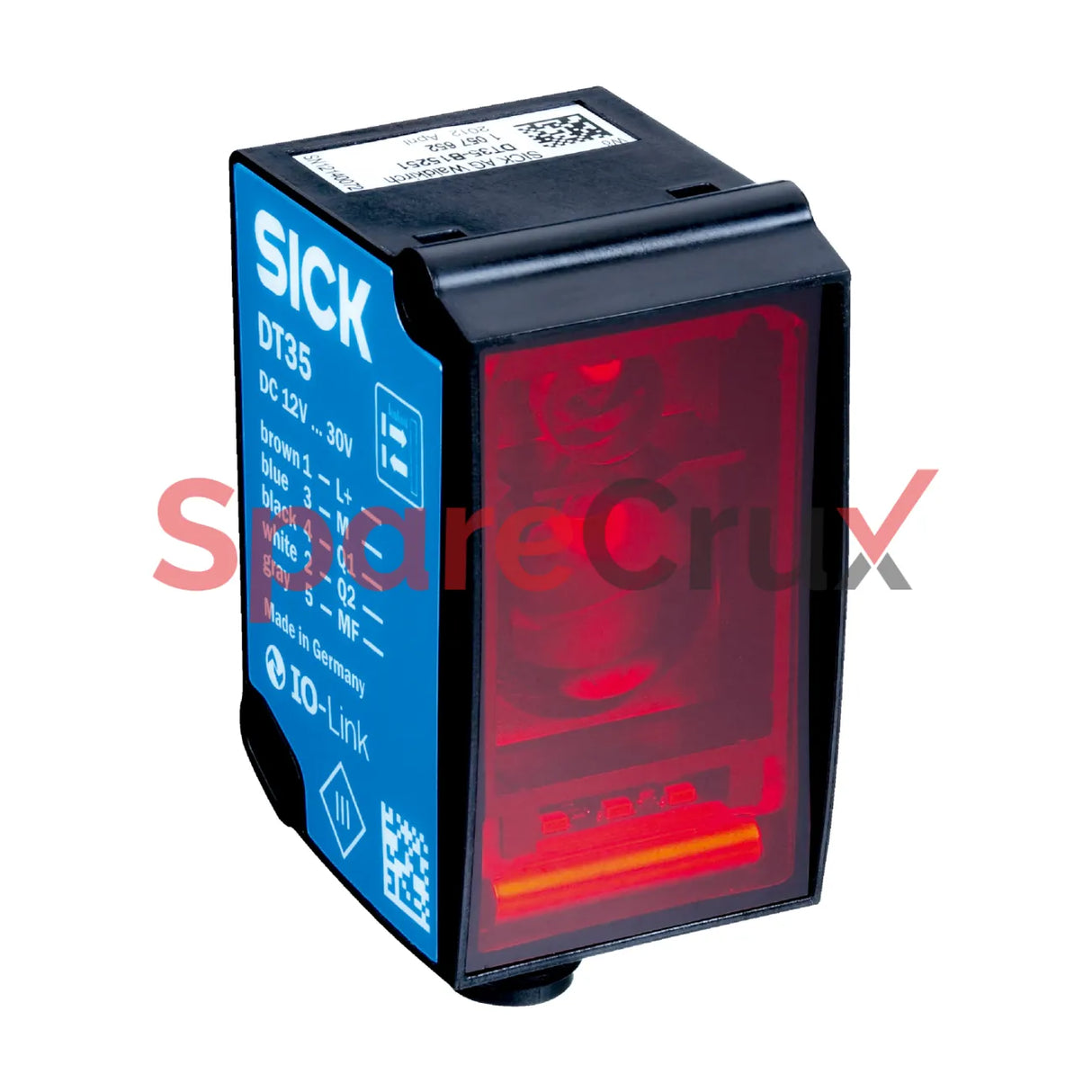

1057653 | SICK SENSORS | DT35-B15851 Laser Distance Sensor

₹ 29,643.20

●   Available for backorder, with an estimated lead time of 8 to 12 weeks.

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

1057653

Original Equipment Manufacturer

SICK SENSORS

Descripción
Target Natural objects
Resolution 0.1 mm
Repeatability ≥ 0.5 mm 2) 3) 4)
Measurement accuracy Typ. ± 10 mm 4)
Response time 2.5 ms ... 96.5 ms, 2.5 ms / 6.5 ms / 12.5 ms / 24.5 ms / 96.5 ms 5) 6)
Switching frequency 333 Hz / 100 Hz / 50 Hz / 25 Hz / 6 Hz 5) 6)
Output time 1 ms ... 32 ms, 1 ms/2 ms/4 ms/8 ms/32 ms 5) 7)
Light source Laser, infrared 8)
Infrared light
Type of light Infrared light
Supply voltage UB DC 12 V ... 30 V 1) 2)
Power consumption ≤ 1.7 W 3)
Ripple ≤ 5 Vpp 4)
Initialization time ≤ 500 ms
Warm-up time ≤ 20 min
Indication LEDs
Enclosure rating

IP65
