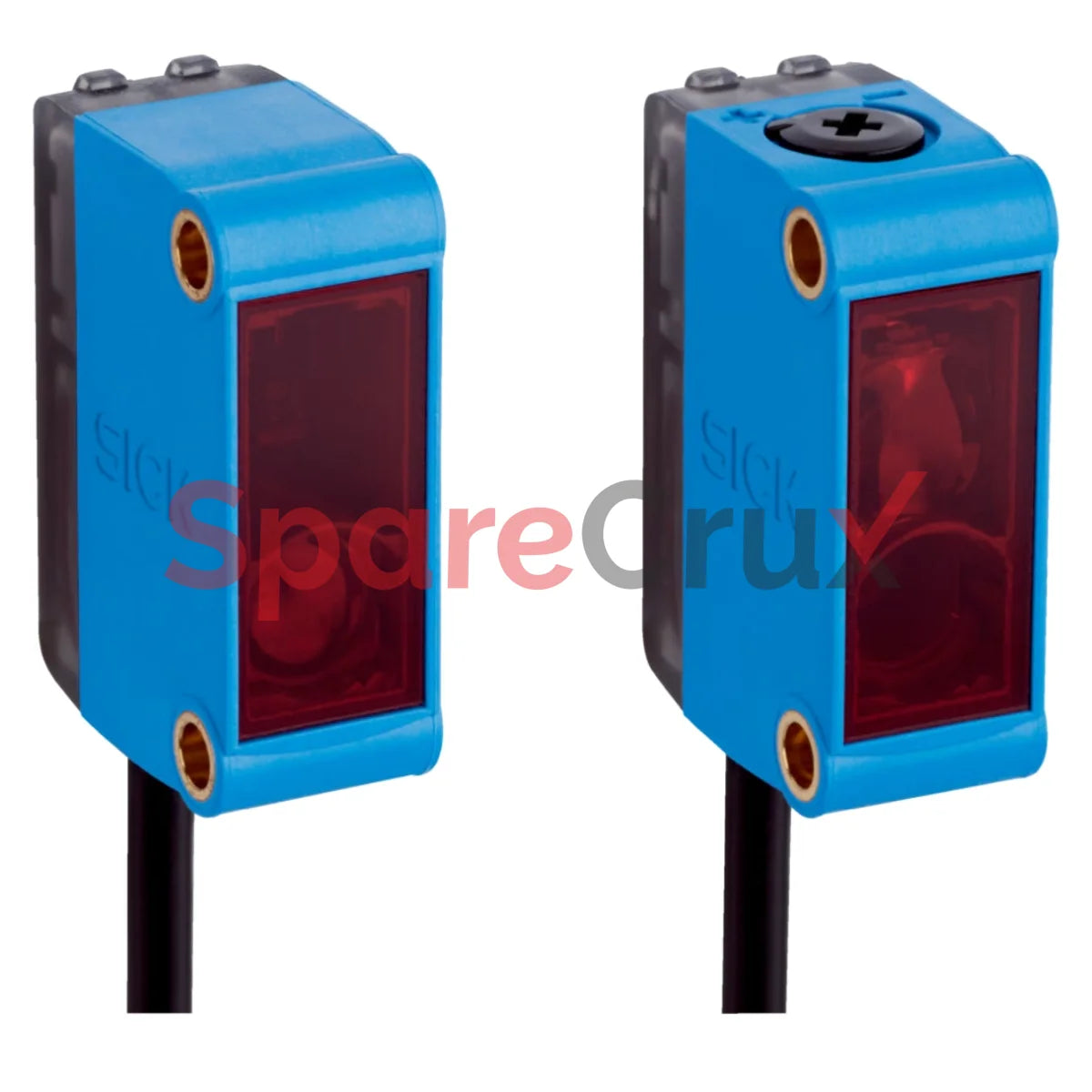

1060795 | SICK SENSORS | GSE6-N1212 Through Beam Photoelectric Sensor

₹ 4,253.40
Get Best Price on WhatsApp

Product Description

The GSE6-N1212 is a miniature photoelectric sensor from SICK's G6 series, designed for precise object detection in confined spaces. It features a diffuse mode with background suppression, ensuring reliable performance even in challenging environments.

  • Sensing Mode: Diffuse mode with background suppression
  • Operating Distance:
    • Minimum: 30 mm
    • Maximum: 300 mm
  • Light Source: Red LED
  • Output Type: PNP, Normally Open (NO)
  • Supply Voltage: 10 V to 30 V DC
  • Housing Material: Plastic
  • Connection Type: Cable with M8 connector
  • Ambient Operating Temperature: –25 °C to +60 °C
  • Enclosure Rating: IP67

The GSE6-N1212 is ideal for applications requiring reliable object detection in tight spaces, such as in industrial automation, material handling, and packaging systems.

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

SPARECRUX is NOT an authorized distributor for SICK SENSORS

Manufacturer Part Number (MPN)

1060795

Original Equipment Manufacturer

SICK SENSORS

PDF Product Datasheet

  • 100% Tested & Verified Products

  • GST Invoice Available

  • Warranty Included

  • Trusted by 5000+ Industrial Buyers

Functional principle - Through-beam photoelectric sensor

Sensing range max. - 0 m ... 15 m

Sensing range - 0 m ... 10 m

Polarisation filter - No

Light source - PinPoint LED 1)

Type of light - Visible red light

Light spot size (distance) - Ø 375 mm (12 m)

Wave length - 650 nm

Supply voltage UB - 10 V DC ... 30 V DC 1)

Ripple - ± 10 % 2)

Current consumption - 30 mA 3)

Protection class - III

Housing - Rectangular

Dimensions (W x H x D) - 12 mm x 31.5 mm x 21 mm

Connection - Cable, 3-wire, 2 m 1)

Conductor size - 0.14 mm²

Length of cable (L) - 2 m 1)

Weight - 170 g

Not Applicable for this Product

EU declaration of conformity - ✔

UK declaration of conformity - ✔

ACMA declaration of conformity - ✔

Moroccan declaration of conformity - ✔

China RoHS - ✔

cULus certificate - ✔

Photobiological safety (DIN EN 62471) certificate - ✔

ECLASS 5.0 - 27270901

ECLASS 5.1.4 - 27270901

ECLASS 6.0 - 27270901

ECLASS 6.2 - 27270901

ECLASS 7.0 - 27270901

ECLASS 8.0 - 27270901

ECLASS 8.1 - 27270901

ECLASS 9.0 - 27270901

ECLASS 10.0 - 27270901

ECLASS 11.0 - 27270901
