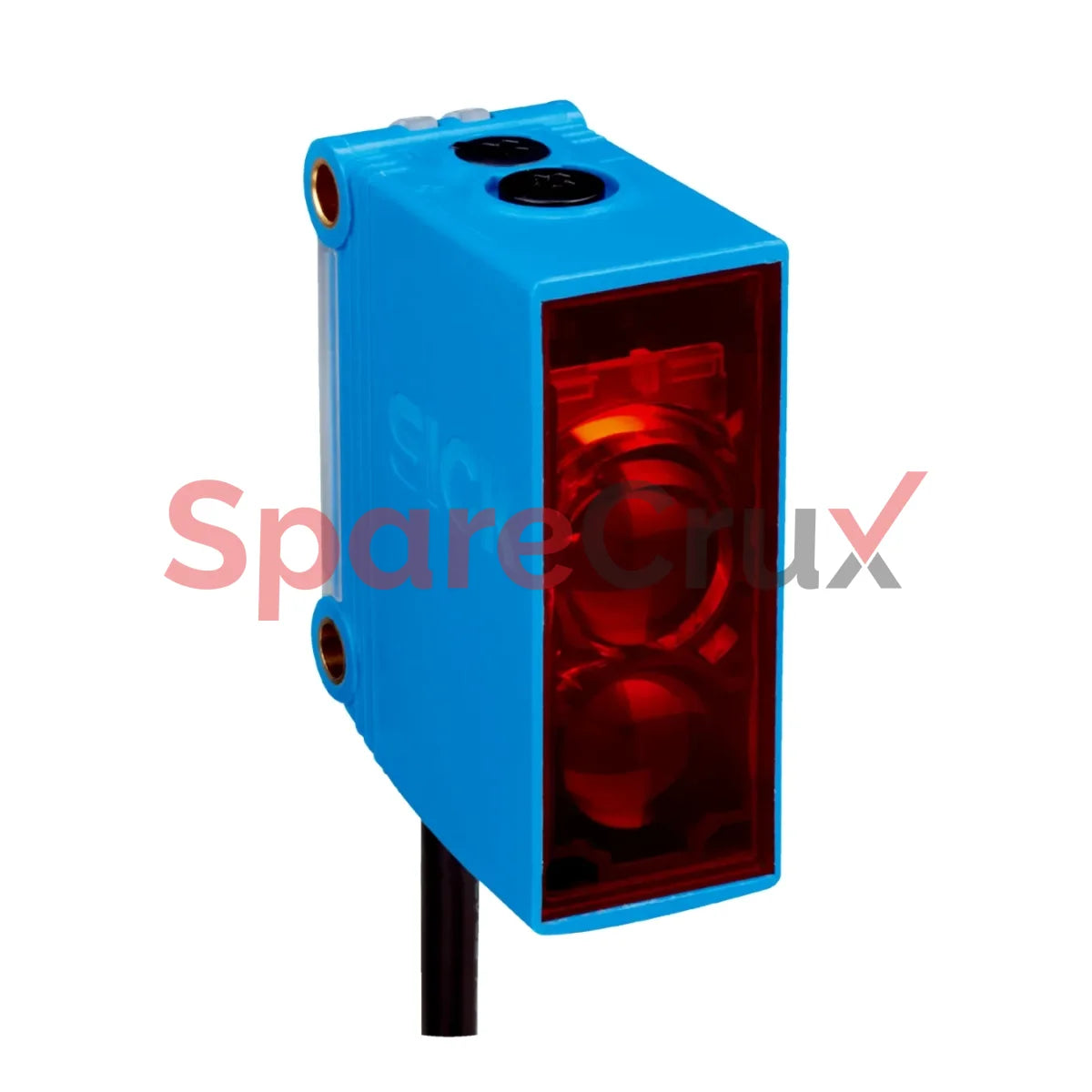

1065854 | SICK SENSORS | GTB10-P1211 Photoelectric Proximity Sensor

₹ 4,448.80

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

1065854

Original Equipment Manufacturer

SICK SENSORS

Descripción

Functional principle Photoelectric proximity sensor
Functional principle detail Background suppression
Dimensions (W x H x D) 20 mm x 50 mm x 39 mm
Housing design (light emission) Rectangular
Sensing range max. 20 mm ... 950 mm 1)
Type of light Visible red light
Light source PinPoint LED 2)
Light spot size (distance) Ø 8 mm (700 mm)
Wave length 625 nm
Supply voltage UB 10 V DC ... 30 V DC 1)
Ripple < 5 Vpp 2)
Current consumption 20 mA
Switching output PNP
Switching mode Light/dark switching
Switching mode selector Selectable via light/dark selector
Output current Imax. ≤ 100 mA
Response time ≤ 500 µs 3)
Switching frequency 1,000 Hz 4)
Connection type Cable, 3-wire, 2 m 5)
Cable material Plastic, PVC
Conductor cross section 0.14 mm²
Protection class III
Weight 90 g
Housing material Plastic, ABS/PMMA
Enclosure rating IP67
Electromagnetic compatibility (EMC) EN 60947-5-2
Ambient operating temperature –30 °C ... +60 °C
Ambient temperature, storage –40 °C ... +70 °C
1065854 | Sick Gtb10-P1211
