SPARECRUX is NOT an authorized distributor for SICK SENSORS

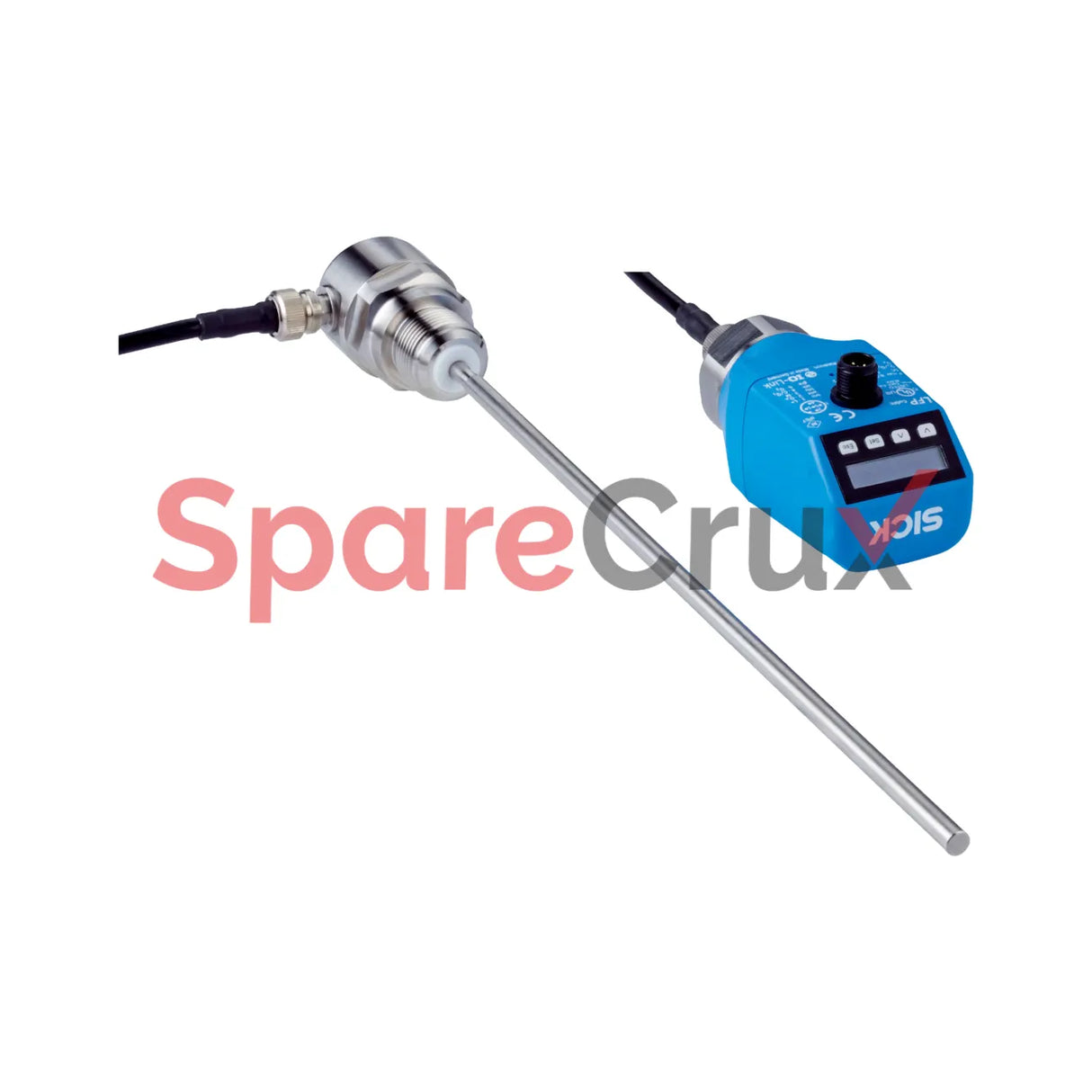

1071101 | SICK SENSORS | LFP0500-B4CMB Level Sensor

₹ 69,132.00

●   Available for backorder, with an estimated lead time of 8 to 12 weeks.

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

1071101

Original Equipment Manufacturer

SICK SENSORS

Descripción
Communication interface IO-Link
Supply voltage 12 V DC ... 30 V DC 1)
Power consumption ≤ 100 mA at 24 V DC without output load
Initialization time ≤ 5 s
Protection class III
Connection type Round connector M12 x 1, 5-pin
Length of cable 2 m
Output signal 1 x PNP + 1 x PNP/NPN + 4 mA ... 20 mA / 0 V ... 10 V
Output load 4 mA ... 20 mA < 350 Ohm at Uv > 12 V, 0 V ... 10 V > 750 Ohm at Uv 14 ≥ V
Hysteresis ≥ 2 mm 2)
Output current < 100 mA
Wetted parts

1.4404, PTFE

FKM
Process connection ¾" NPT
Housing material Plastic PBT
Max. probe load ≤ 6 Nm
Material coaxial cable PVC
Length coaxial cable 2 m



SICK SENSORS 1071101 LFP0500-B4CMB Level Sensor
SICK SENSORS

1071101 | SICK SENSORS | LFP0500-B4CMB Level Sensor

₹ 69,132.00
Communication interface IO-Link
Supply voltage 12 V DC ... 30 V DC 1)
Power consumption ≤ 100 mA at 24 V DC without output load
Initialization time ≤ 5 s
Protection class III
Connection type Round connector M12 x 1, 5-pin
Length of cable 2 m
Output signal 1 x PNP + 1 x PNP/NPN + 4 mA ... 20 mA / 0 V ... 10 V
Output load 4 mA ... 20 mA < 350 Ohm at Uv > 12 V, 0 V ... 10 V > 750 Ohm at Uv 14 ≥ V
Hysteresis ≥ 2 mm 2)
Output current < 100 mA
Wetted parts

1.4404, PTFE

FKM
Process connection ¾" NPT
Housing material Plastic PBT
Max. probe load ≤ 6 Nm
Material coaxial cable PVC
Length coaxial cable 2 m
