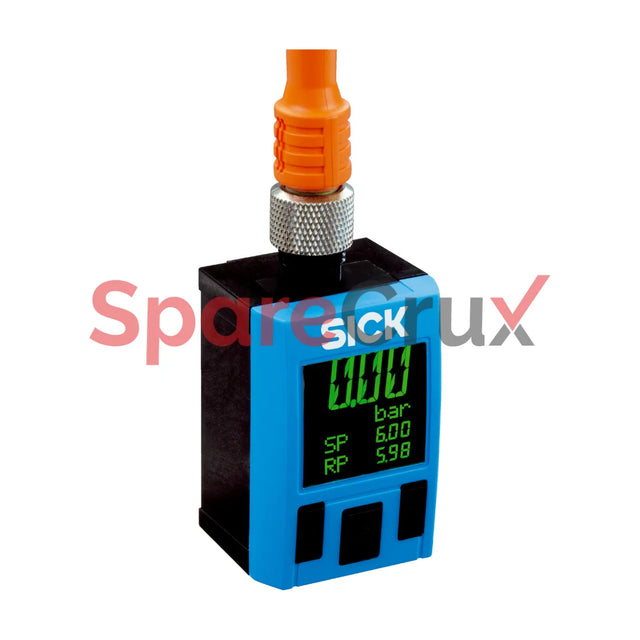

1077856 | SICK SENSORS | PAC50-FGB Pressure Sensor

₹ 15,242.40
Get Best Price on WhatsApp

Product Description



Medium Dry compressed air
Pressure type Gauge pressure
Pressure unit bar
Measuring range –1 bar ... 10 bar
Overpressure safety 15 bar
Process temperature 0 °C ... +60 °C
Non-linearity ≤ ± 0.5 %, of span (Best Fit Straight Line, BFSL) according to IEC 61298-2
Accuracy ≤ ± 1.5 %, of the span (including non-linearity, hysteresis, zero point and full scale error (corresponds to error of measurement as per IEC 61298-2))
Setting accuracy of switching outputs ≤ ± 0.2 % of span
Non-repeatability ≤ ± 0.2 % of the span
Rated temperature range +10 °C ... +60 °C



Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

SPARECRUX is NOT an authorized distributor for SICK SENSORS

Manufacturer Part Number (MPN)

1077856

Original Equipment Manufacturer

SICK SENSORS

PDF Product Datasheet

  • 100% Tested & Verified Products

  • GST Invoice Available

  • Warranty Included

  • Trusted by 5000+ Industrial Buyers

Medium - Dry compressed air

Pressure Type - Gauge pressure

Pressure Unit - bar

Measuring Range - –1 bar to 10 bar

Overpressure Safety - 15 bar

Process Temperature - 0 °C to +60 °C

Maximum Ohmic Load (RA) - Optional, 4–20 mA / 0–10 V. Automatic detection depending on connected load or programmable. Output signals can be inverted: 20–4 mA / 10–0 V. Load resistance for current output: < 600 Ω. Load resistance for voltage output: > 3 kΩ.

Zero Point Adjustment - Maximum ±5% of span

Output Signal - PNP / NPN / Push-Pull + 4–20 mA / 0–10 V

Communication Interface - -

Process Connection - 2 × G ¼

Housing Material - Housing: Polycarbonate; Buttons: TPE; DIN rail mounting: POM; Seals: NBR

Connection Type - M12 round connector × 1, 4-pin

Supply Voltage - 17 V DC to 30 V DC

Power Consumption - Maximum 40 mA at L+ = 24 V DC

Electrical Safety - Protection Class III; Overvoltage Protection: 32 V DC; Short-circuit Protection: QA, Q1, Q2 towards M and L+; Reverse Polarity Protection: L+ to M

CE Conformity - EMC Directive: 2004/108/EC, EN 61326-2-3

Weight (Sensor) - Approx. 40 g

Enclosure Rating - IP65; IP67

Not applicable for this product

EU Declaration of Conformity - ✔

UK Declaration of Conformity - ✔

ACMA Declaration of Conformity - ✔

China RoHS - ✔

China Compulsory Product Certification (CCC) Exempt - ✔

ECLASS 5.1.4 - 27200620

ECLASS 6.0 - 27200620

ECLASS 7.0 - 27200620

ECLASS 8.0 - 27200620

ECLASS 9.0 - 27200620

ECLASS 10.0 - 27200620

ECLASS 11.0 - 27200620
