SPARECRUX is NOT an authorized distributor for SICK SENSORS

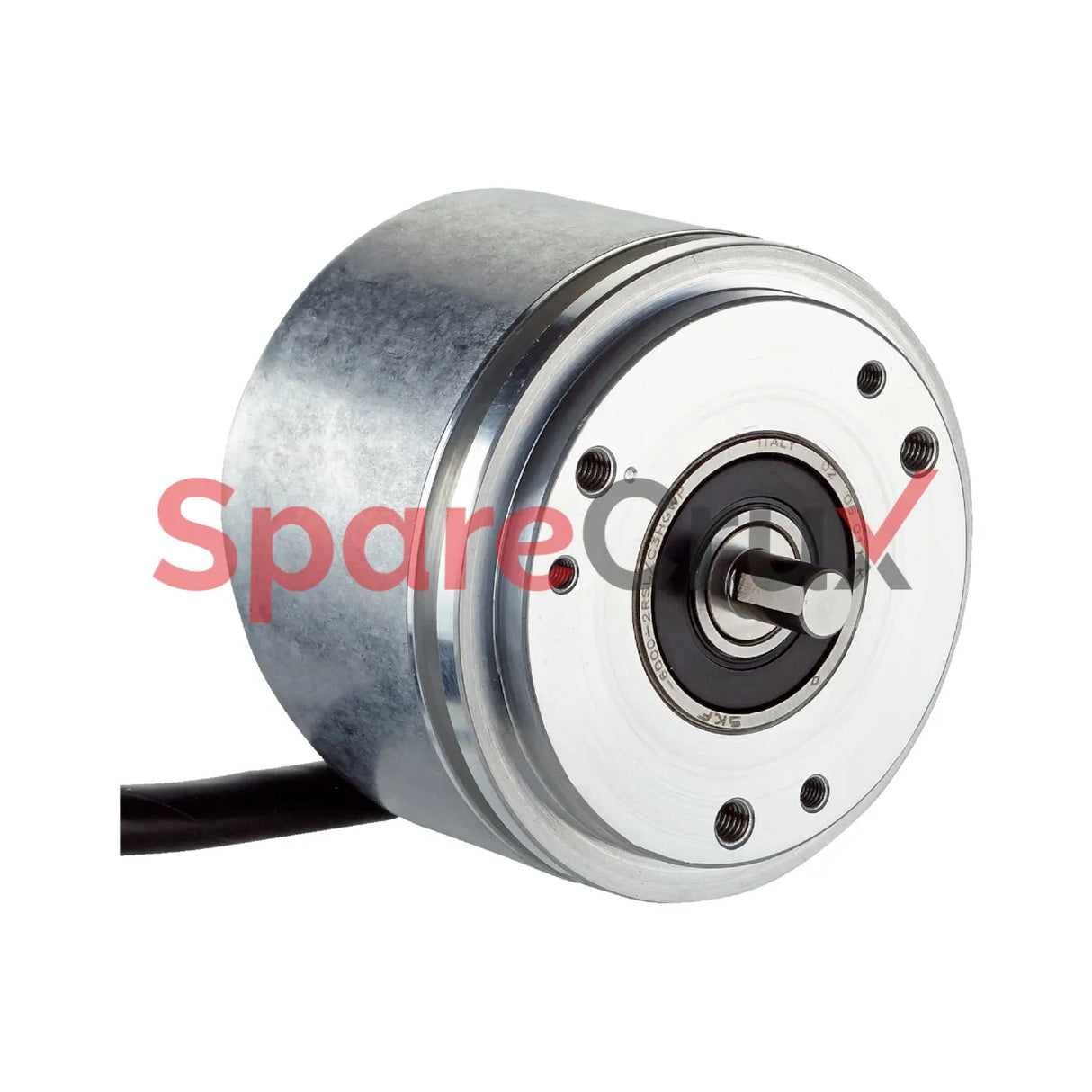

1082195 | SICK SENSORS | DBS60E-S1EN02500 Incremental Encoder

₹ 19,072.80

●   Available for backorder, with an estimated lead time of 8 to 12 weeks.

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

1082195

Original Equipment Manufacturer

SICK SENSORS

Descripción
Communication interface Incremental
Communication Interface detail HTL / Push pull
Number of signal channels 6-channel
Initialization time < 5 ms 1)
Output frequency + 300 kHz 2)
Mechanical design Solid shaft, Servo flange
Shaft diameter 6 mm
With face
Shaft length 10 mm
Flange type / stator coupling Flange with 3 x M3 and 3 x M4
Weight + 0.3 kg 1)
Shaft material Stainless steel
Flange material Aluminum
Housing material Aluminum
Material, cable PVC
Start up torque + 1.2 Ncm (+20 °C)
Operating torque 1.1 Ncm (+20 °C)
Permissible shaft loading

100 N (radial) 2)

50 N (axial) 2)
Operating speed 6,000 min⁻¹ 3)
Maximum operating speed 9,000 min⁻¹ 4)



SICK SENSORS 1082195 DBS60E-S1EN02500 Incremental Encoder
SICK SENSORS

1082195 | SICK SENSORS | DBS60E-S1EN02500 Incremental Encoder

₹ 19,072.80
Communication interface Incremental
Communication Interface detail HTL / Push pull
Number of signal channels 6-channel
Initialization time < 5 ms 1)
Output frequency + 300 kHz 2)
Mechanical design Solid shaft, Servo flange
Shaft diameter 6 mm
With face
Shaft length 10 mm
Flange type / stator coupling Flange with 3 x M3 and 3 x M4
Weight + 0.3 kg 1)
Shaft material Stainless steel
Flange material Aluminum
Housing material Aluminum
Material, cable PVC
Start up torque + 1.2 Ncm (+20 °C)
Operating torque 1.1 Ncm (+20 °C)
Permissible shaft loading

100 N (radial) 2)

50 N (axial) 2)
Operating speed 6,000 min⁻¹ 3)
Maximum operating speed 9,000 min⁻¹ 4)
