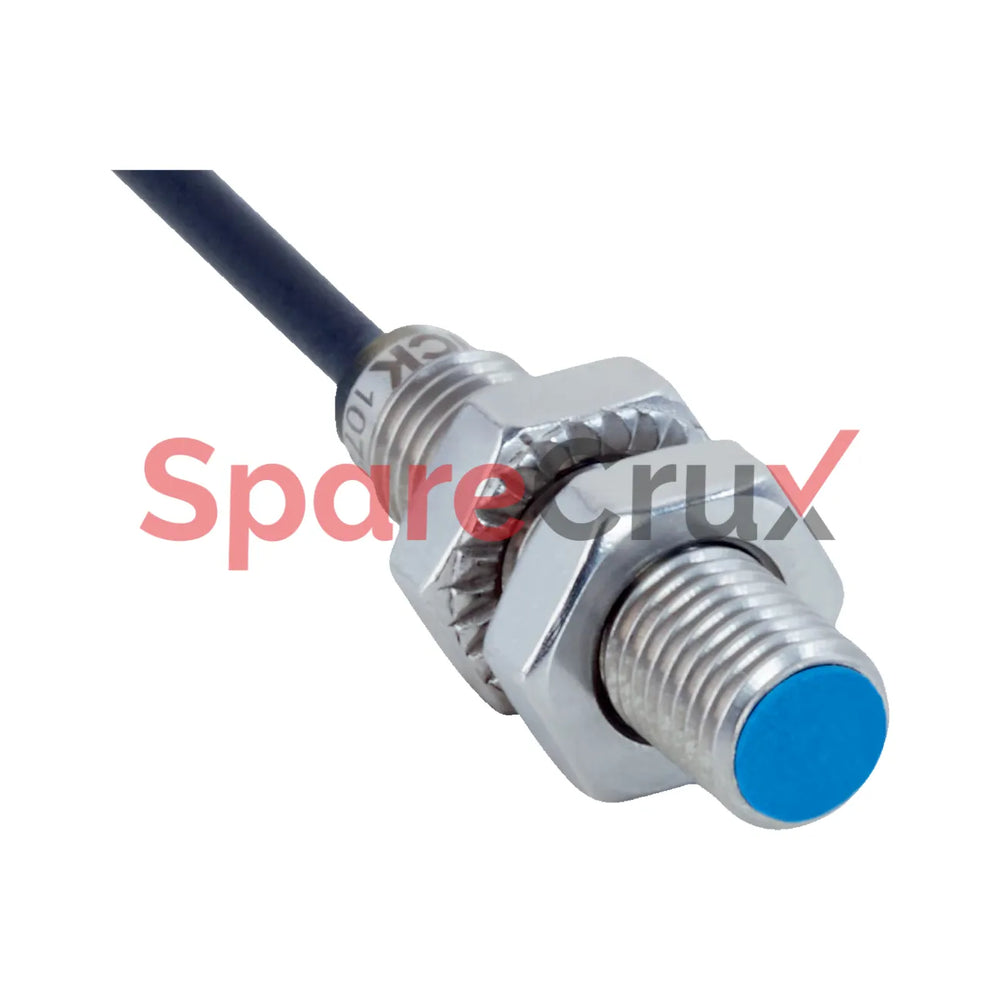

1090949 | SICK SENSORS | IMB08-02BPSVU5K Inductive Proximity Sensors

₹ 6,624.00
Get Best Price on WhatsApp

Product Description
Housing Metric
Housing Short-body
Thread size M8 x 1
Diameter Ø 8 mm
Sensing range Sn 2 mm
Safe sensing range Sa 1.62 mm
Installation type Flush
Switching frequency 4,000 Hz
Connection type Cable, 3-wire, 5 m
Housing material Stainless steel V2A, DIN 1.4305 / AISI 303
Sensing face material Plastic, LCP
Housing length 32 mm
Thread length 28 mm
Tightening torque, max.

Typ. 7 Nm 4)

Typ. 14 Nm 5)



Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

SPARECRUX is NOT an authorized distributor for SICK SENSORS

Manufacturer Part Number (MPN)

1090949

Original Equipment Manufacturer

SICK SENSORS

PDF Product Datasheet

  • 100% Tested & Verified Products

  • GST Invoice Available

  • Warranty Included

  • Trusted by 5000+ Industrial Buyers

Housing - Metric

Housing - Short-body

Thread size - M8 x 1

Diameter - Ø 8 mm

Sensing range Sn - 2 mm

Safe sensing range Sa - 1.62 mm

Installation type - Flush

Switching frequency - 4,000 Hz

Connection type - Cable, 3-wire, 5 m

Switching output - PNP

Switching output detail - PNP

Output function - NO

Supply voltage - 10 V DC ... 30 V DC

Ripple - ≤ 10 %

Voltage drop - ≤ 2 V

Hysteresis - 3 % ... 20 %

Reproducibility - ≤ 2 %

Temperature drift (of Sr) - ± 10 %

EMC - According to EN 60947-5-2

Continuous current Ia - ≤ 200 mA

No load current - ≤ 10 mA

Cable material - PUR

MTTFD - 1,971 years

DCavg - 0 %

EU declaration of conformity - ✔

UK declaration of conformity - ✔

ACMA declaration of conformity - ✔

Moroccan declaration of conformity - ✔

China RoHS - ✔

cULus certificate - ✔

IO-Link certificate - ✔

Information according to Art. 3 of Data Act (Regulation EU 2023/2854) - ✔

ECLASS 5.1.4 - 27270101

ECLASS 6.0 - 27270101

ECLASS 7.0 - 27270101

ECLASS 8.0 - 27270101

ECLASS 9.0 - 27270101

ECLASS 10.0 - 27270101

ECLASS 11.0 - 27270101
