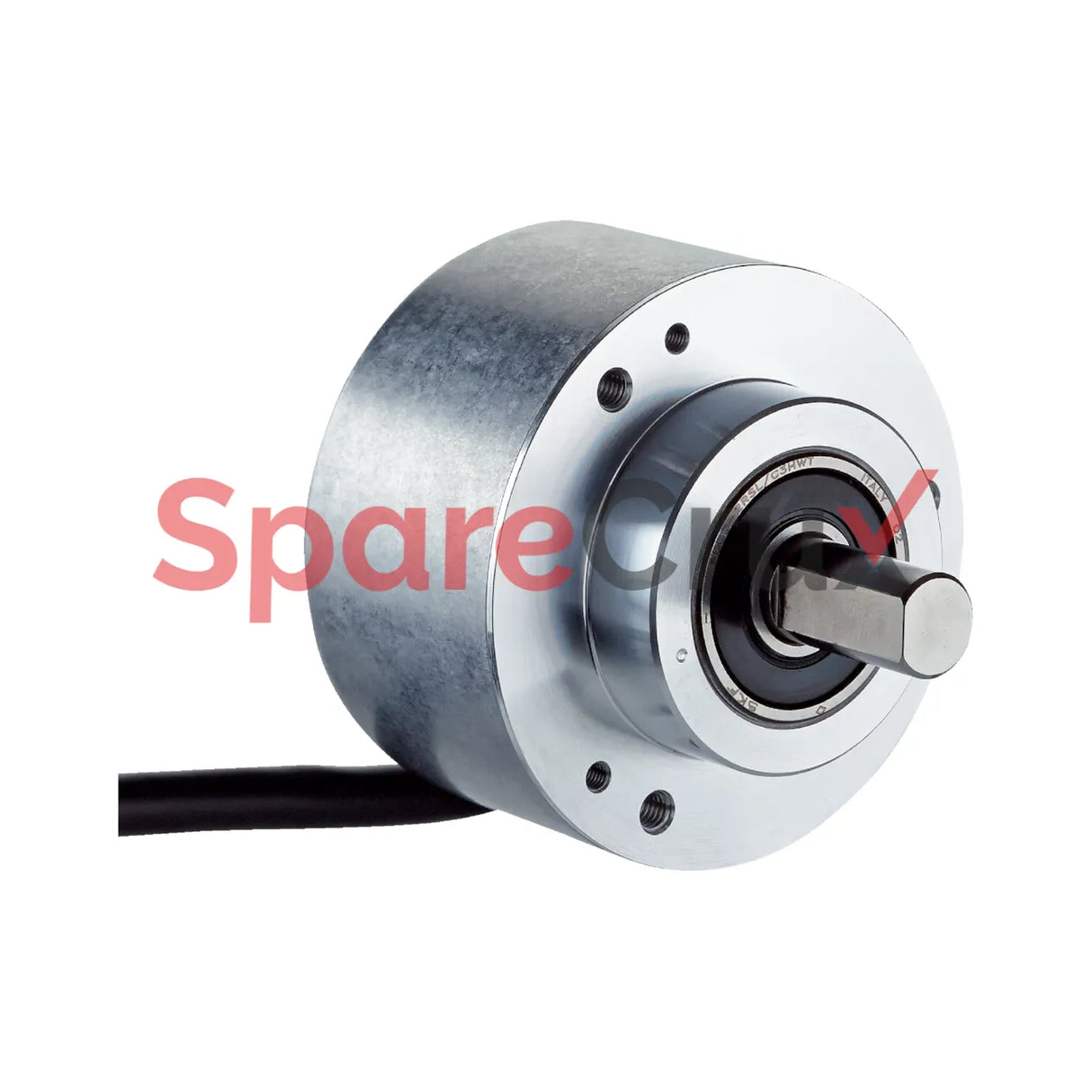

1092340 | SICK SENSORS | DBS60E-S3EP05000 Incremental Encoder

₹ 17,356.00

●   Available for backorder, with an estimated lead time of 8 to 12 weeks.

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

1092340

Original Equipment Manufacturer

SICK SENSORS

Descripción
Communication interface Incremental
Communication Interface detail HTL / Push pull
Number of signal channels 6-channel
Initialization time < 5 ms 1)
Output frequency + 300 kHz 2)
Mechanical design Solid shaft, face mount flange
Shaft diameter 6 mm
With face
Shaft length 10 mm
Flange type / stator coupling Flange with 3 x M3 and 3 x M4
Weight + 0.3 kg 1)
Shaft material Stainless steel
Flange material Aluminum
Housing material Aluminum
Material, cable PVC
Start up torque + 1.2 Ncm (+20 °C)
Operating torque 1.1 Ncm (+20 °C)
Permissible shaft loading

100 N (radial) 2)

50 N (axial) 2)
Operating speed 6,000 min⁻¹ 3)
Maximum operating speed 9,000 min⁻¹ 4)
Moment of inertia of the rotor 33 gcm²
Bearing lifetime 3.6 x 109 revolutions
