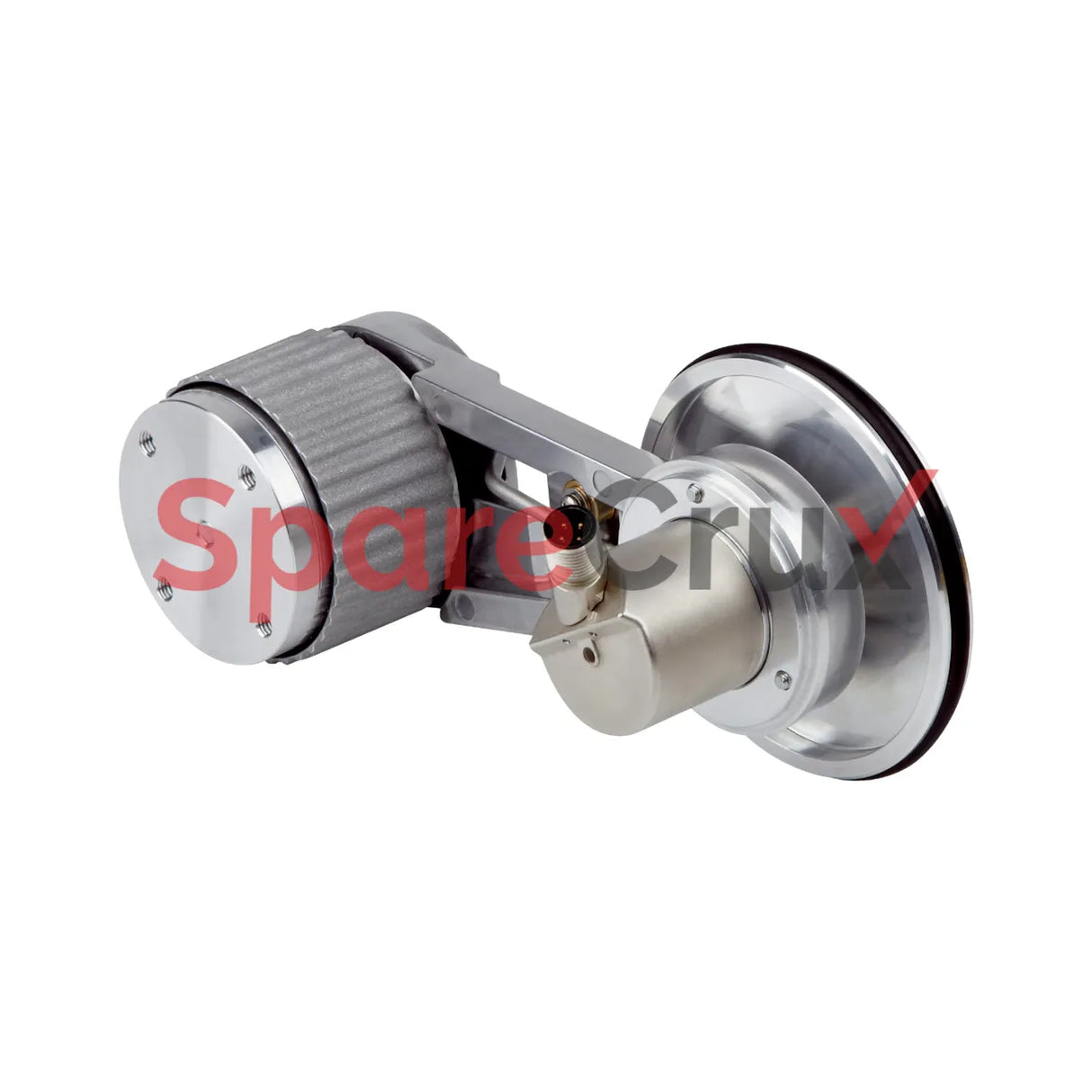

1112905 | SICK SENSORS | MWS120-12M2CC14X12 Measuring Wheel Encoder

₹ 75,424.00

●   Available for backorder, with an estimated lead time of 8 to 12 weeks.

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

1112905

Original Equipment Manufacturer

SICK SENSORS

Descripción
Communication interface CANopen
Connection type Male connector, M12, 5-pin, universal
Measuring wheel circumference 200 mm 1)
Measuring wheel surface O-ring NBR70
Operating torque < 1 Ncm
Bearing lifetime 3.6 x 10^8 revolutions
Minimum spring tension force 4 N 2) 3)
Max. permissible working area for the spring (continuous operation) ± 10 mm
Service life of spring element > 1.5 million cycles



SICK SENSORS 1112905 MWS120-12M2CC14X12 Measuring Wheel Encoder
SICK SENSORS

1112905 | SICK SENSORS | MWS120-12M2CC14X12 Measuring Wheel Encoder

₹ 75,424.00
Communication interface CANopen
Connection type Male connector, M12, 5-pin, universal
Measuring wheel circumference 200 mm 1)
Measuring wheel surface O-ring NBR70
Operating torque < 1 Ncm
Bearing lifetime 3.6 x 10^8 revolutions
Minimum spring tension force 4 N 2) 3)
Max. permissible working area for the spring (continuous operation) ± 10 mm
Service life of spring element > 1.5 million cycles
