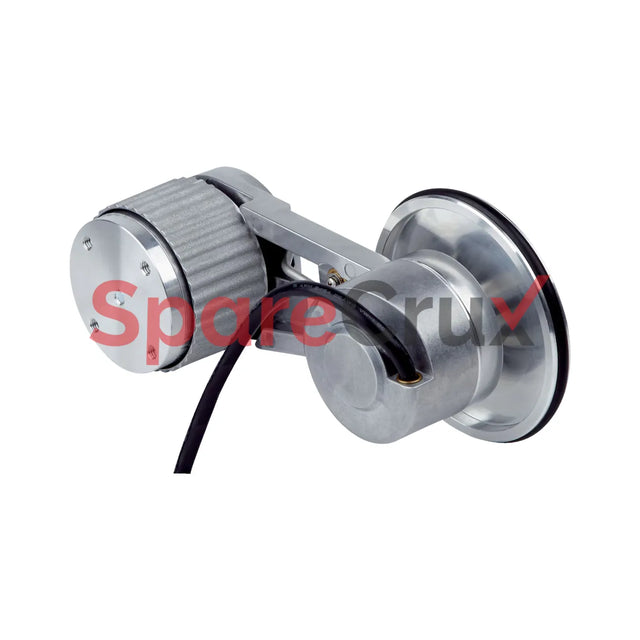

1114156 | SICK SENSORS | MWS120-22A17K01000 Measuring Wheel Encoder

₹ 40,650.40

●   Available for backorder, with an estimated lead time of 8 to 12 weeks.

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

1114156

Original Equipment Manufacturer

SICK SENSORS

Descripción
Communication interface Incremental
Communication Interface detail TTL / HTL
Connection type Cable, 8-wire, universal, 1.5 m 1)
Measuring wheel circumference 300 mm 1)
Measuring wheel surface O-ring NBR70
Measuring wheel circumference 300 mm 1)
Measuring wheel surface O-ring NBR70
Mounting Measuring wheel mounted at the front
Spring arm mechanism material
Spring element Stainless steel
Measuring wheel, spring arm Aluminum
Start up torque + 1.2 Ncm (at 20 °C)
Operating torque 1.1 Ncm (at 20 °C)
Bearing lifetime 3.6 x 109 revolutions
Minimum spring tension force 4 N 2) 3)
Max. permissible working area for the spring (continuous operation) ± 10 mm
Service life of spring element > 1.5 million cycles
