SPARECRUX is NOT an authorized distributor for ALLEN BRADLEY
This product has been discontinued, and manufacturer warranty or support may no longer be available.
Agotado

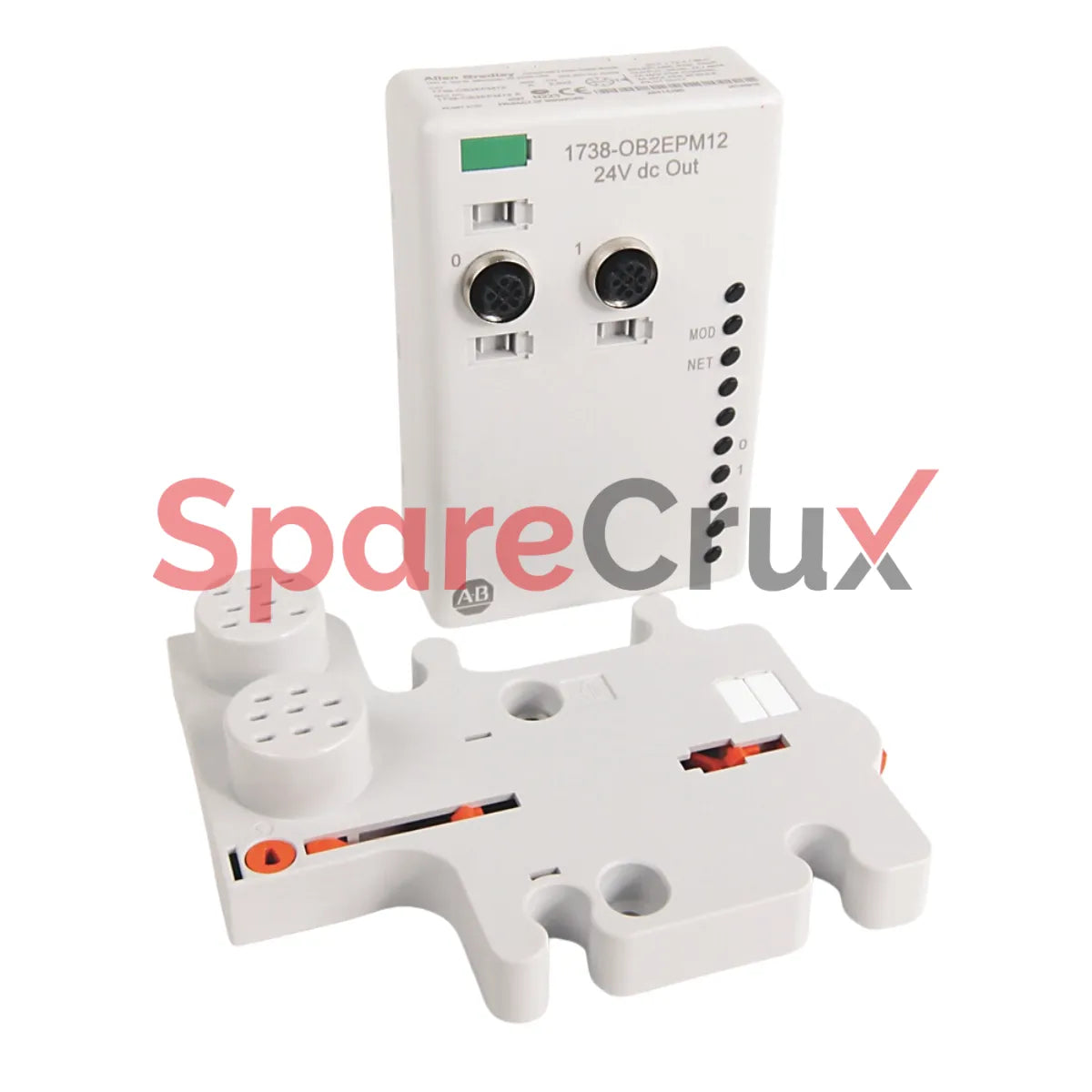

1738-OB2EPM12 | ALLEN BRADLEY | ArmorPoint I/O 2-Channel 24V DC Output Module with Electronic Protection and M12 Connectors
₹ 16,809.76
1738-OB2EPM12 | ALLEN BRADLEY | ArmorPoint I/O 2-Channel 24V DC Output Module with Electronic Protection and M12 Connectors
está agotado y se enviará tan pronto como vuelva a estar disponible.
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
1738-OB2EPM12 | ALLEN BRADLEY | ArmorPoint I/O 2-Channel 24V DC Output Module with Electronic Protection and M12 Connectors
1738-OB2EPM12 | ALLEN BRADLEY | ArmorPoint I/O 2-Channel 24V DC Output Module with Electronic Protection and M12 Connectors
está agotado y se enviará tan pronto como vuelva a estar disponible.
Manufacturer Part Number (MPN)
1738-OB2EPM12
Original Equipment Manufacturer
ALLEN BRADLEY
Descripción
Attribute
Value
Number of Outputs
2 sourcing outputs
Output Voltage Range
10V DC to 28.8V DC (24V DC nominal)
Output Current Rating
2.0 A per channel; 4.0 A per module maximum
Off-State Leakage Current
0.5 mA maximum
Output Delay Time (OFF to ON / ON to OFF)
0.1 ms
PointBus Current
75 mA at 5V DC maximum
Power Dissipation
0.8 W at 28.8V DC
Thermal Dissipation
2.7 BTU/hr at 28.8V DC
Isolation Voltage
50V (continuous), Reinforced Insulation Type, field-side to system; Type tested at 1000V DC for 60 s, field-side to system; No isolation between individual channels
Dimensions (HxWxD)
120 x 36 x 42 mm (4.72 x 1.42 x 1.65 in), including I/O and mounting base
#8 screw; 0.85 Nm (7.5 lb-in) in Aluminum; 1.81 Nm (16 lb-in) in Steel
