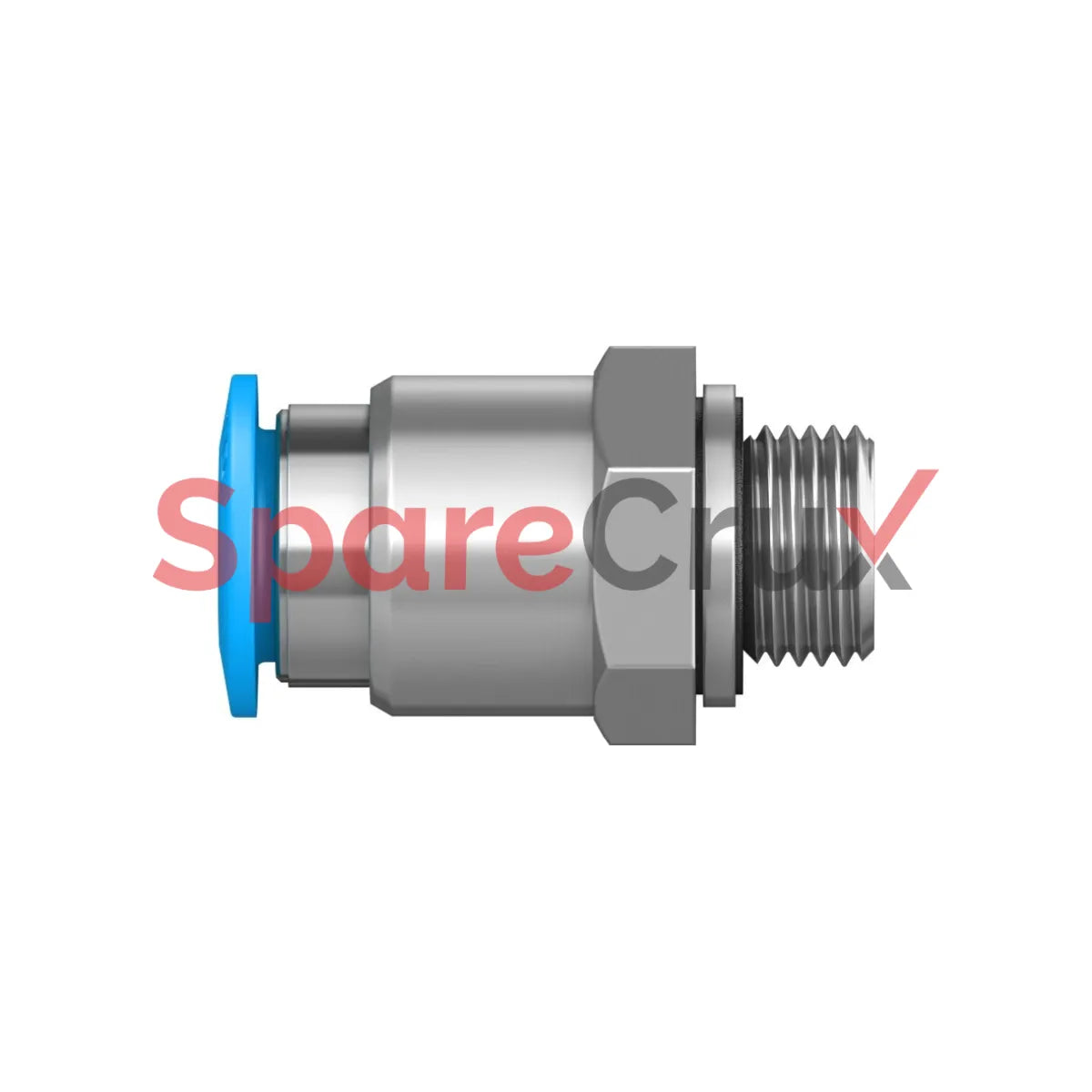

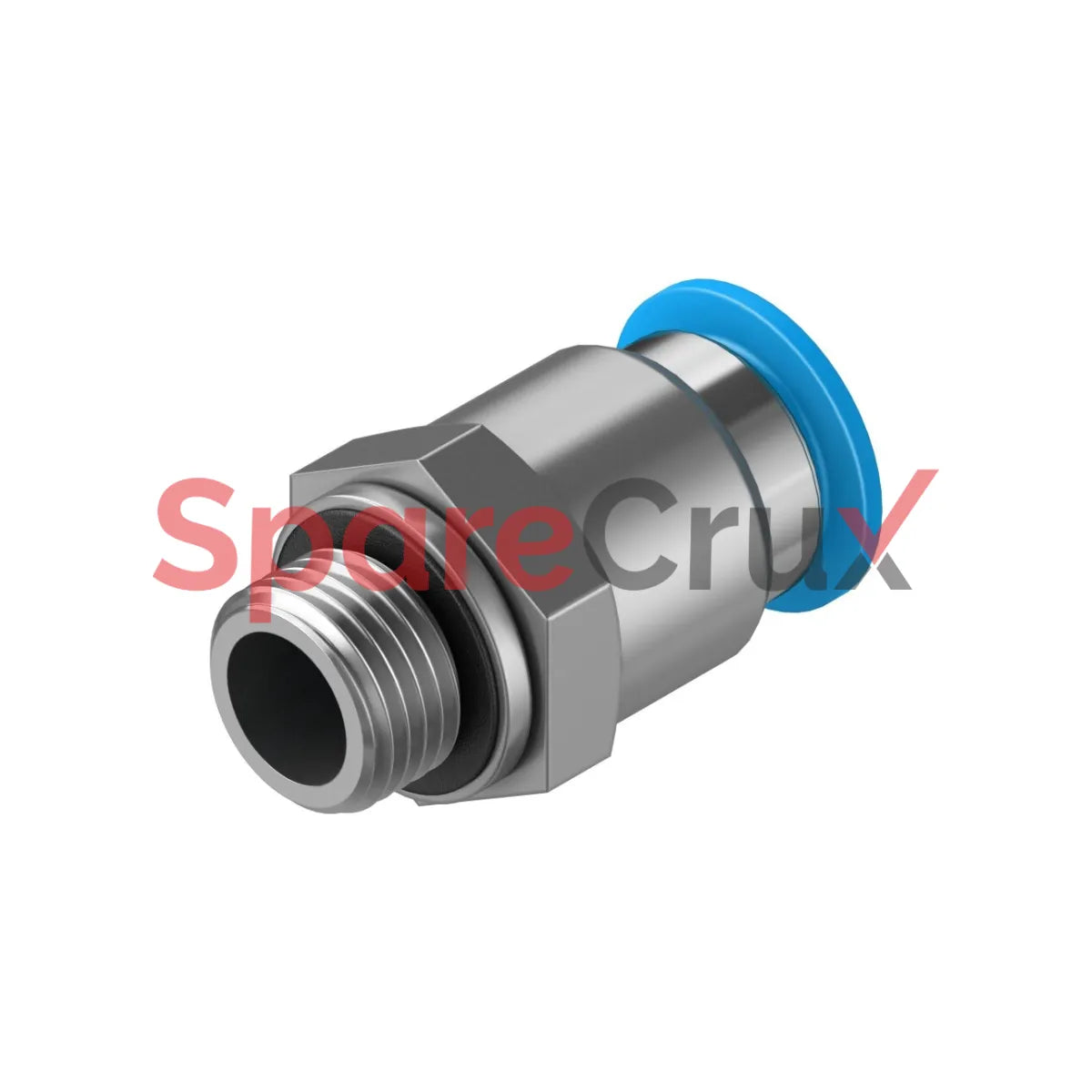

186098 | FESTO | Push-in Fitting QS-G1/8-8

₹ 118.57

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

186098

Original Equipment Manufacturer

FESTO

Descripción

Parameter Specification
Size Standard
Nominal size 6 mm
Type of seal on screwed plug Sealing ring
Mounting position Optional
Design Straight design, Push-pull principle
Size of pack 10
Operating pressure (complete temp. range) -0.095 MPa ... 0.6 MPa (-0.95 bar ... 6 bar / -13.775 psi ... 87 psi)
Temperature-dependent operating pressure -0.095 MPa ... 1.4 MPa (-0.95 bar ... 14 bar / -13.775 psi ... 203 psi)
Note on operating pressure Water: max. 0.6 MPa at max. 50°C
Operating medium Compressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)
Note on operating and pilot medium Lubricated operation possibleWater: G-thread only with sealing ring type OL accessory
Corrosion resistance class (CRC) 1 - Low corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Ambient temperature -10 °C ... 80 °C
Nominal torque 5.4 Nm
Tolerance for nominal tightening torque ± 20%
Product weight 13 g
Type of mounting External hexagon, size 14 mm
Pneumatic connection, port 1 Male thread G1/8
Pneumatic connection, port 2 For tubing outside diameter of 8 mm
Colour of release ring Blue
Note on materials RoHS-compliant
Material housing Brass, nickel-plated
Material release ring POM
Material tubing seal NBR
Material tubing clamp component High-alloy stainless steel
