SPARECRUX is NOT an authorized distributor for WOHNER

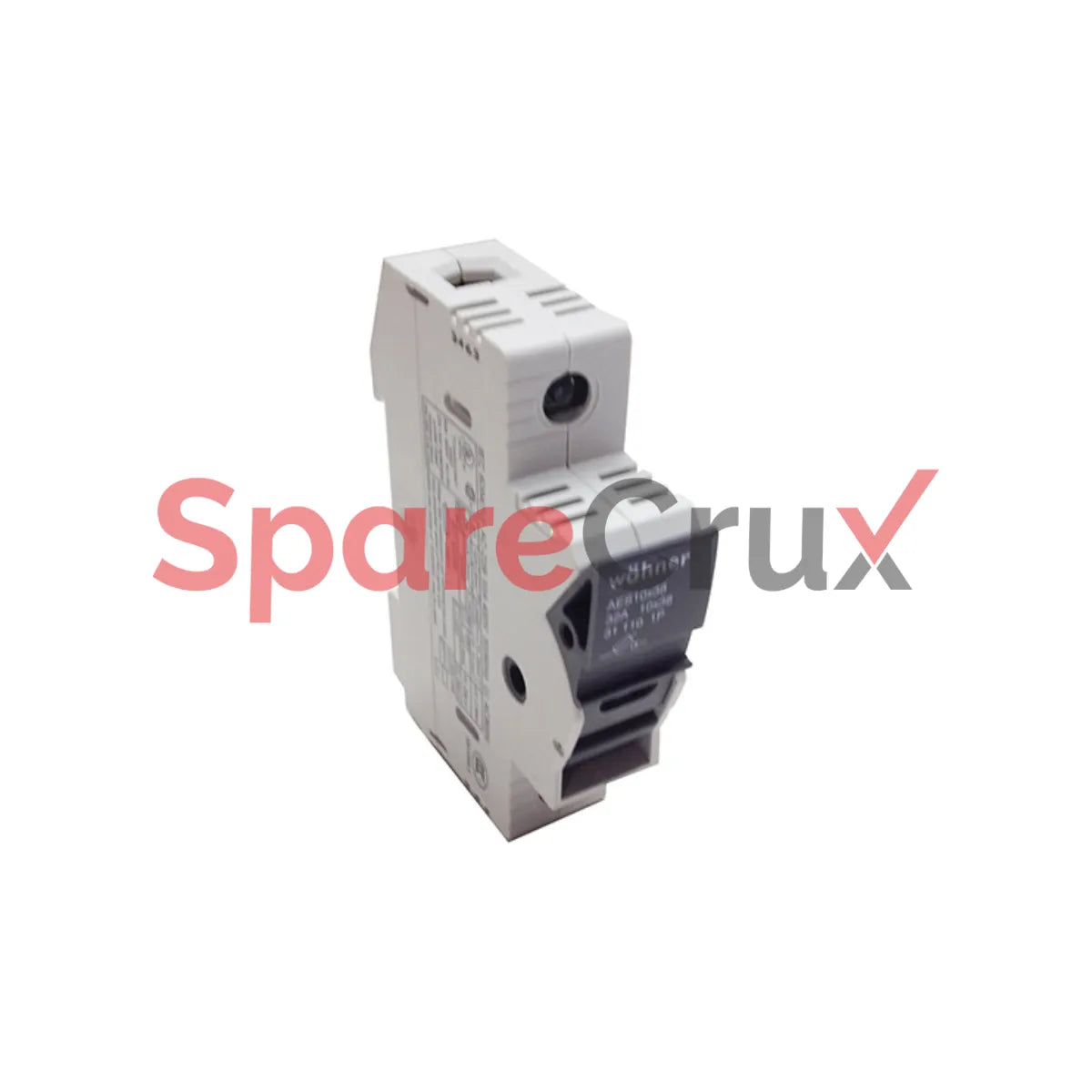

31110 | WOHNER | Cylindrical Fuse Carrier 1P 10X38

₹ 628.80

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

31110

Original Equipment Manufacturer

WOHNER

Descripción

Part Number 31110
Brand Wöhner
Product Type Cylindrical Fuse Carrier
Model AMBUS®Panel
Fuse Size 10 x 38 mm
Poles 1-Pole
Rated Current 32 A
Rated Voltage (AC) 690 V
Rated Isolation Voltage 800 V
Rated Surge Voltage 6 kV
Utilisation Category AC-22B (400V)
Short-Circuit With Fuse 100 kA @ 400 V (32 A), 100 kA @ 500 V (25 A)
Power Dissipation 0.2 W (at 80% load)
Temperature Stability 120°C
Material Halogen-Free, Self-Extinguishing (UL 94)
Creepage Resistance CTI 200
Mounting DIN Rail
Degree of Protection IP20
Approvals IEC 60947-1:2020, IEC 60947-3:2020, UL 4248-1, CSA, CCC
Product Group 17
Subgroup 06
Pack Size 12
EAN 4021267311100
ECLASS 6.1 27142190, 7.1 27142190
ETIM 4.0 EC002705, 5.0 EC002705
