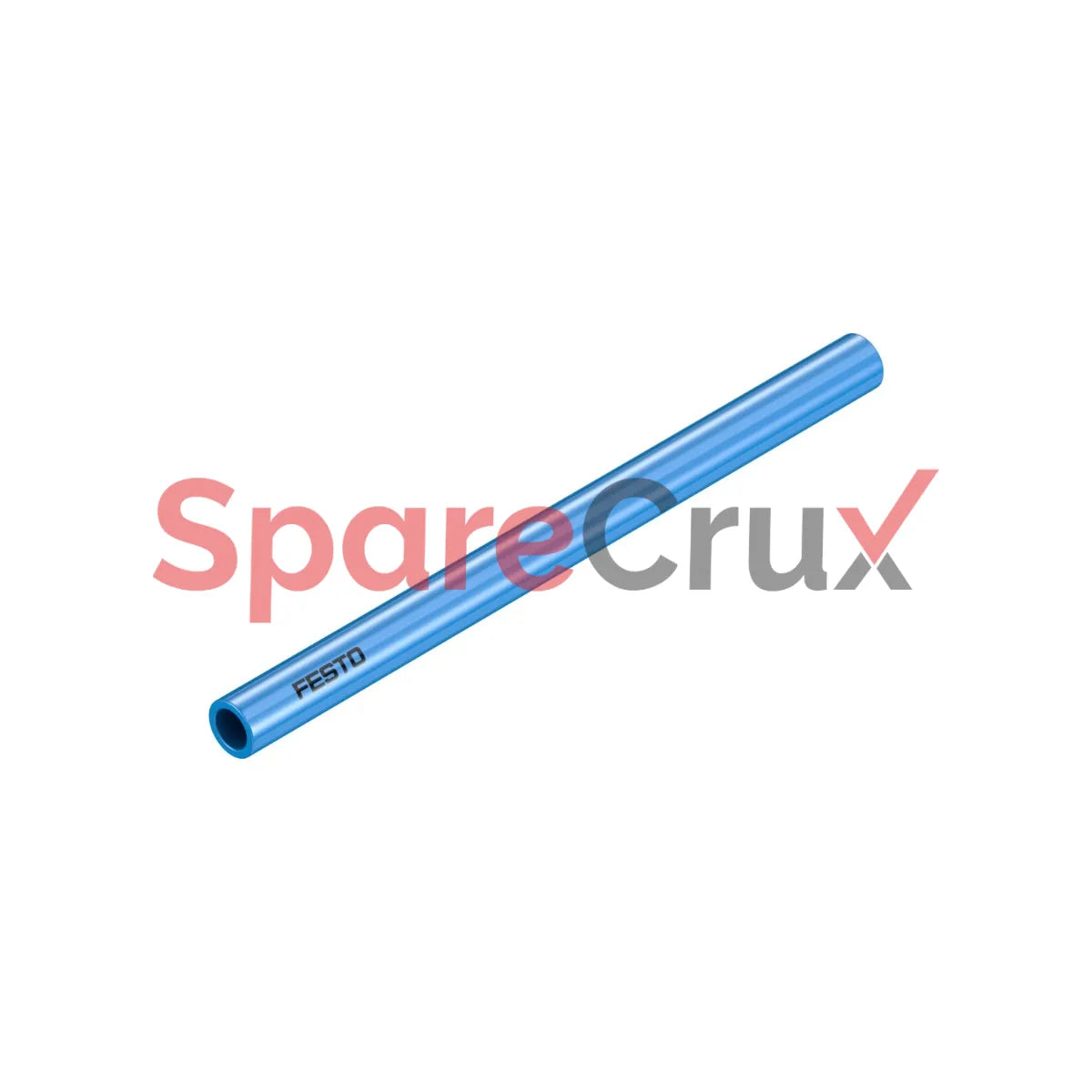

570390 | FESTO | Plastic Tubing PUN-14X2-BL

₹ 24,966.00

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

570390

Original Equipment Manufacturer

FESTO

Descripción

Feature Description
Outside Diameter 14 mm
Flow-relevant Bending Radius 84 mm
Inside Diameter 9.8 mm
Min. Bending Radius 45 mm
Instructions on Use TPE-U Ester based. The plastic tubing can only be installed in contact with cables if the sheathing is free of phosphoric acid esters. Otherwise, the plastic tubing may get damaged.
Tubing Characteristics Suitable for energy chains
Operating Pressure (Complete Temperature Range) -0.095 MPa ... 0.7 MPa (-0.95 bar ... 7 bar, -13.775 psi ... 101.5 psi)
Temperature-dependent Operating Pressure -0.095 MPa ... 1 MPa (-0.95 bar ... 10 bar, -13.775 psi ... 145 psi)
Approval German Technical Control Board (TÜV)
Certificate Issuing Authority B 013277 0506 00
Operating Medium Compressed air to ISO 8573-1:2010 [7:-:-]
Fire Test Material UL94 HB
LABS (PWIS) Conformity VDMA24364-B2-L
Ambient Temperature -35 °C ... 60 °C
Product Weight (According to Length) 0.0949 kg/m
Pneumatic Connection For push-in connector outer diameter of 14 mm
Colour Blue
Shore Hardness D 52 +/-3
Note on Materials RoHS-compliant
Material Tubing TPE-U(PU)
