6011991 | SICK | IM18-05BPS-ZC1 Incductive Conductor

₹ 7,851.75

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

6011991

Original Equipment Manufacturer

SICK SENSORS

Descripción

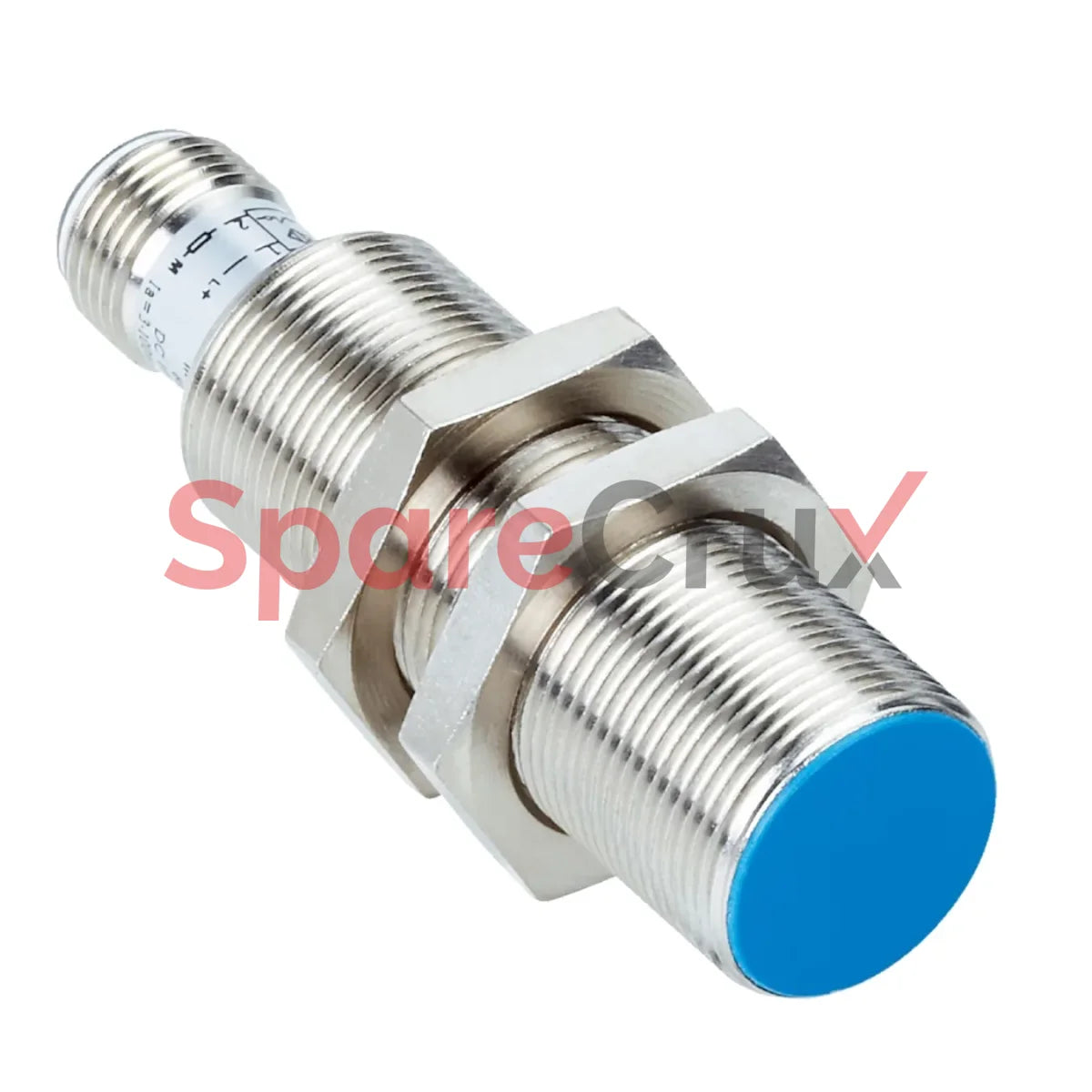

The IM18-05BPS-ZC1 is an inductive proximity sensor from SICK's IM Standard series, designed for non-contact detection of metallic objects. Featuring a robust M18 cylindrical housing and a sensing range of 5 mm, it is suitable for various industrial automation applications.

  • Functional Principle: Inductive proximity sensor
  • Sensing Range: 5 mm
  • Installation Type: Non-flush
  • Output Type: PNP, normally open (NO)
  • Supply Voltage: 10 V DC to 30 V DC
  • Continuous Current: ≤ 400 mA
  • Short-Circuit Protection: Yes
  • Housing Size: M18 x 1
  • Connection Type: M12, 4-pin male connector
  • Housing Material: Nickel-plated brass
  • Enclosure Rating: IP67
  • Ambient Operating Temperature: –25 °C to +70 °C
  • Dimensions (L x D): 64 mm x 18 mm
  • Weight: 50 g

The IM18-05BPS-ZC1 is ideal for detecting metallic objects in industrial automation settings, offering reliable performance and easy installation.
