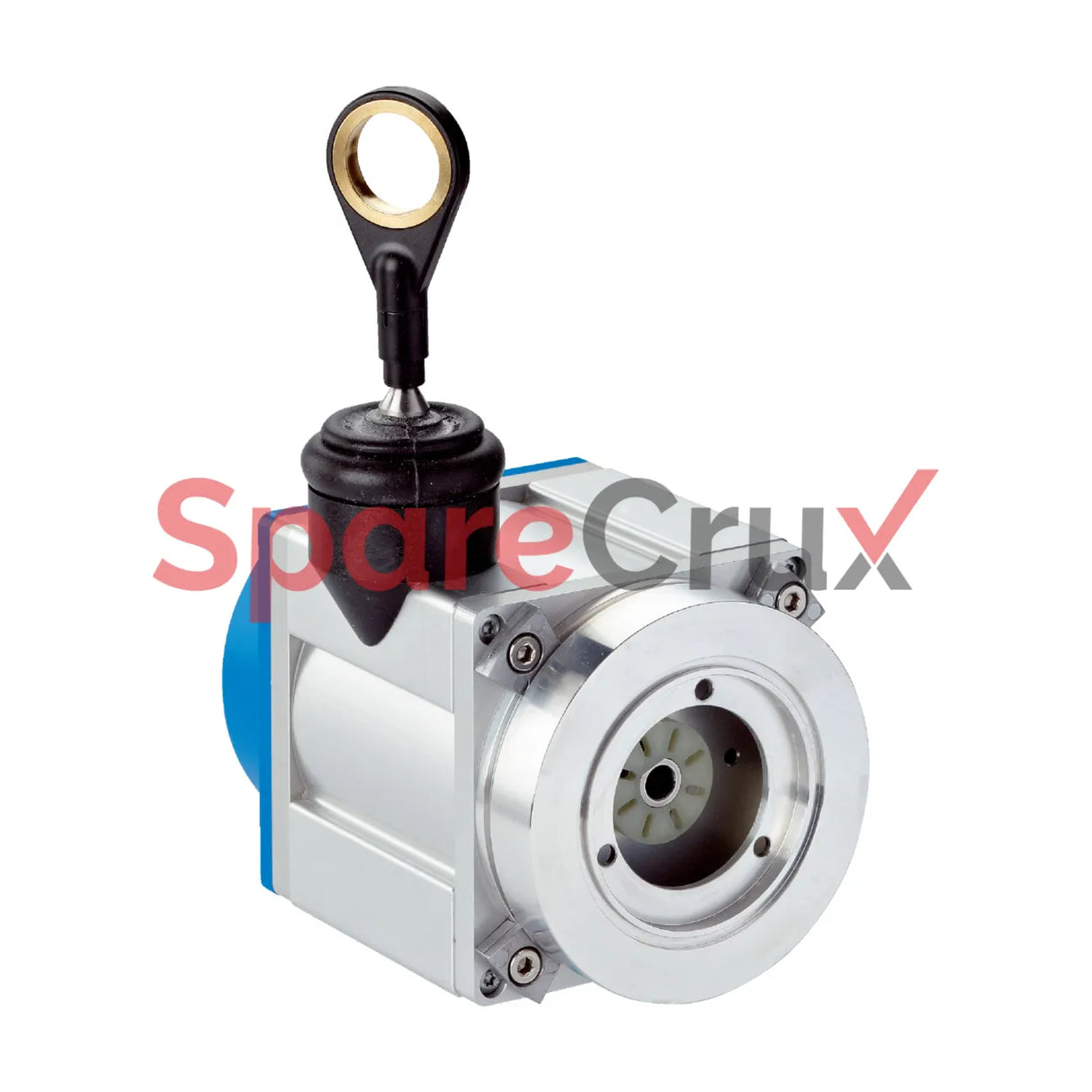

6028627 | SICK SENSORS | MRA-F130-110D2 Wire Draw Mechanism

₹ 137,334.40

●   Available for backorder, with an estimated lead time of 8 to 12 weeks.

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

6028627

Original Equipment Manufacturer

SICK SENSORS

Descripción
Items supplied Without encoder
Measurement range 0 m 10 m
Reproducibility ≤ 1.5 mm
Linearity ≤ ± 2 mm
Hysteresis ≤ 3 mm
Weight 3.5 kg Wire draw mechanism
Weight (measuring wire) 7.1 g/m
Measuring wire material Highly flexible stranded steel 1,4401 stainless steel V4A
Material, spring housing Plastic
Housing material, wire draw mechanism Aluminum (anodised), plastic
Length of wire pulled out per revolution 332.4 mm
Actual wire draw length 10.2 m
Spring return force 10 N 20 N 1)
Measuring wire diameter 1.35 mm
Wire acceleration 40 m/s²
Operating speed 8 m/s



SICK SENSORS 6028627 MRA-F130-110D2 Wire Draw Mechanism
SICK SENSORS

6028627 | SICK SENSORS | MRA-F130-110D2 Wire Draw Mechanism

₹ 137,334.40
Items supplied Without encoder
Measurement range 0 m 10 m
Reproducibility ≤ 1.5 mm
Linearity ≤ ± 2 mm
Hysteresis ≤ 3 mm
Weight 3.5 kg Wire draw mechanism
Weight (measuring wire) 7.1 g/m
Measuring wire material Highly flexible stranded steel 1,4401 stainless steel V4A
Material, spring housing Plastic
Housing material, wire draw mechanism Aluminum (anodised), plastic
Length of wire pulled out per revolution 332.4 mm
Actual wire draw length 10.2 m
Spring return force 10 N 20 N 1)
Measuring wire diameter 1.35 mm
Wire acceleration 40 m/s²
Operating speed 8 m/s
