SPARECRUX is NOT an authorized distributor for SICK SENSORS

This product has been discontinued, and manufacturer warranty or support may no longer be available.

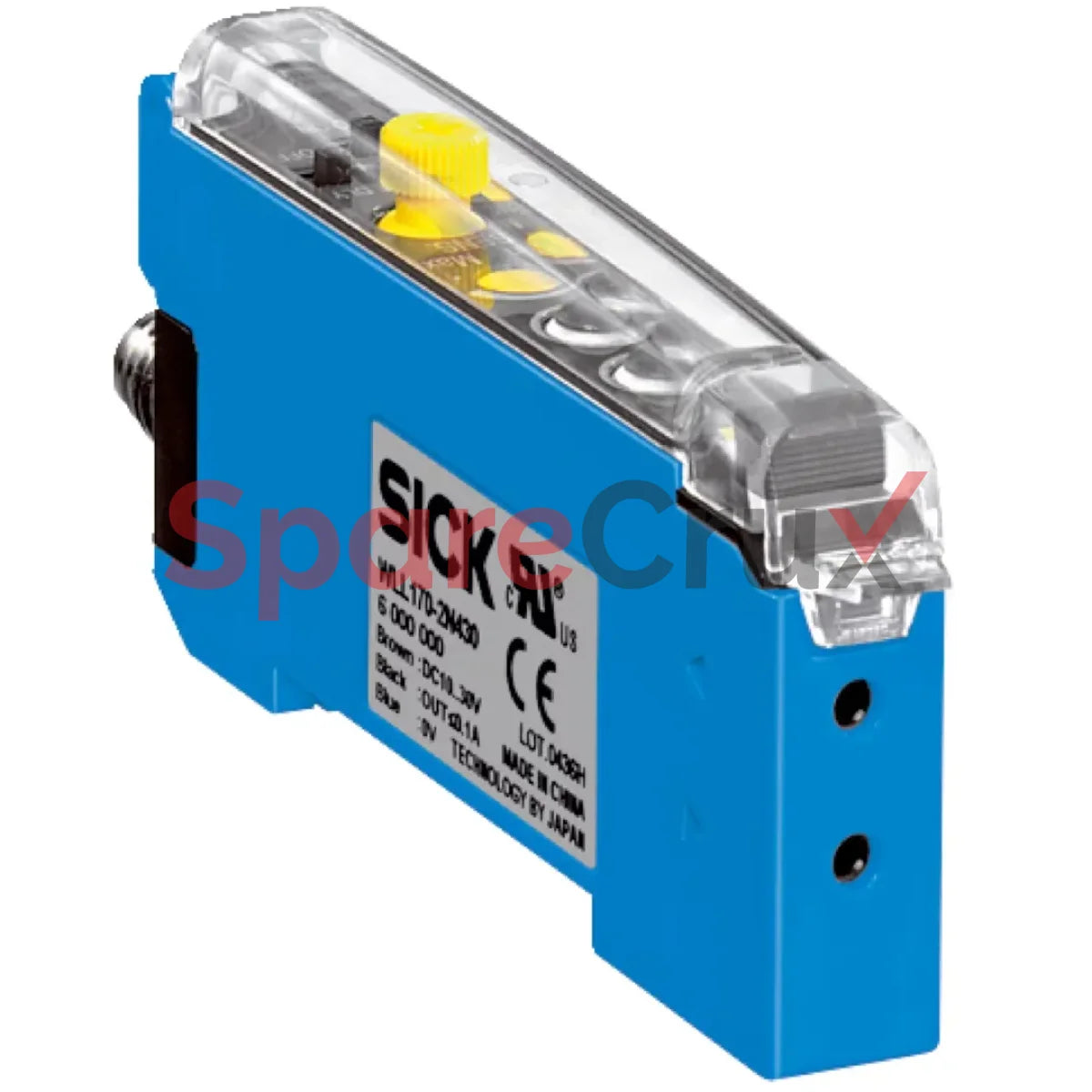

6029511 | SICK SENSORS | WLL170-2P132 Fiber Optic Sensor

₹ 11,054.20

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

6029511

Original Equipment Manufacturer

SICK SENSORS

Descripción

Specification Details
Device type Fiber-optic amplifier
Dimensions (W × H × D) 10.5 mm × 35.5 mm × 83.7 mm
Housing design (light emission) Rectangular
Sensing range (max.) 0 mm … 4,000 mm (Through-beam system) (1)
Sensing range - 0 mm … 160 mm (Proximity system) (2)(3)- 0 mm … 700 mm (Through-beam system) (4)
Focus Approx. 65° (5)
Type of light Visible red light
Light source LED (6)
Angle of dispersion Approx. 65° (5)
Wavelength 660 nm
Supply voltage (UB) 10 V DC … 30 V DC (1)
Ripple 10 % (2)
Current consumption 30 mA (3)
Switching output PNP
Number of switching outputs 1
Switching mode Light/Dark switching
6029511 | Sick Wll170-2P132
SICK SENSORS

6029511 | SICK SENSORS | WLL170-2P132 Fiber Optic Sensor

₹ 11,054.20
Specification Details
Device type Fiber-optic amplifier
Dimensions (W × H × D) 10.5 mm × 35.5 mm × 83.7 mm
Housing design (light emission) Rectangular
Sensing range (max.) 0 mm … 4,000 mm (Through-beam system) (1)
Sensing range - 0 mm … 160 mm (Proximity system) (2)(3)- 0 mm … 700 mm (Through-beam system) (4)
Focus Approx. 65° (5)
Type of light Visible red light
Light source LED (6)
Angle of dispersion Approx. 65° (5)
Wavelength 660 nm
Supply voltage (UB) 10 V DC … 30 V DC (1)
Ripple 10 % (2)
Current consumption 30 mA (3)
Switching output PNP
Number of switching outputs 1
Switching mode Light/Dark switching
