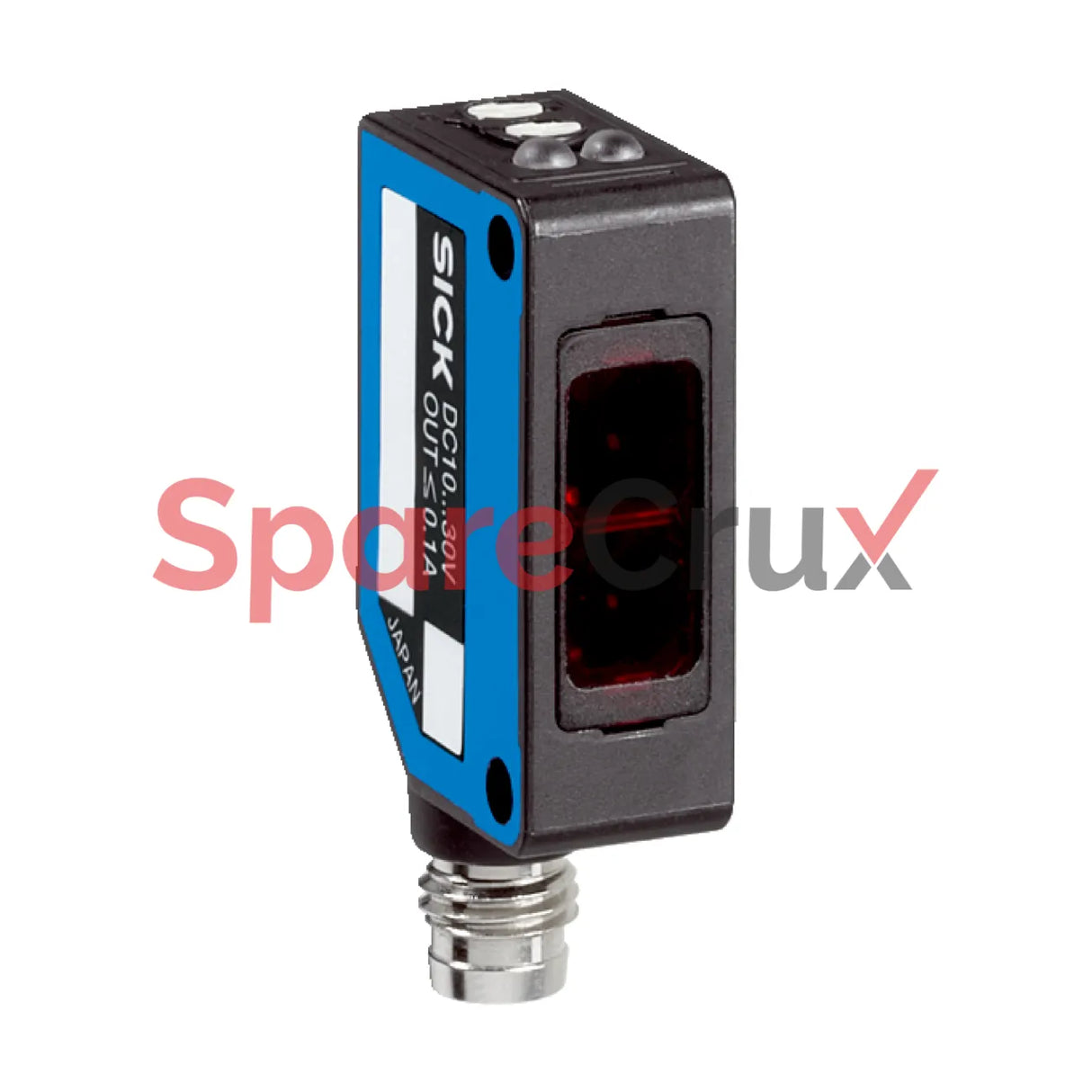

6030709 | SICK SENSORS | WL100L-F2131 Photoelectric Retro Reflective Sensor

₹ 15,473.70
Get Best Price on WhatsApp

Product Description
Specification Details
Functional principle Photoelectric retro-reflective sensor
Functional principle detail With minimum distance to reflector (dual lens system)
Dimensions (W x H x D) 11 mm x 31 mm x 20 mm
Housing design (light emission) Rectangular
Sensing range max. 0.08 m … 12 m¹
Sensing range 0.08 m … 10 m¹
Type of light Visible red light
Supply voltage UB 10 V DC … 30 V DC¹
Ripple ± 10 %²
Current consumption 30 mA³
Switching output PNP
Switching mode Light/dark switching
Enclosure rating IP65



Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

SPARECRUX is NOT an authorized distributor for SICK SENSORS

Manufacturer Part Number (MPN)

6030709

Original Equipment Manufacturer

SICK SENSORS

PDF Product Datasheet

  • 100% Tested & Verified Products

  • GST Invoice Available

  • Warranty Included

  • Trusted by 5000+ Industrial Buyers

Functional principle – Photoelectric retro-reflective sensor

Functional principle detail – With minimum distance to reflector (dual lens system)

Dimensions (W x H x D) – 11 mm x 31 mm x 20 mm

Housing design (light emission) – Rectangular

Sensing range max. – 0.08 m ... 12 m 1)

Sensing range – 0.08 m ... 10 m 1)

Type of light – Visible red light

Light source – Laser 2)

Wave length – 650 nm

Laser class – 1 3)

Adjustment – Potentiometer, 270°

Special applications – Detecting small objects, Detection of objects moving at high speeds

Supply voltage UB – 10 V DC ... 30 V DC 1)

Ripple – ± 10 % 2)

Current consumption – 30 mA 3)

Switching output – PNP

Switching mode – Light/dark switching

Switching mode selector – Selectable via light/dark rotary switch

Signal voltage PNP HIGH/LOW – UV - 1,8 V / ca. 0 V

Output current Imax. – ≤ 100 mA

Response time – < 0.25 ms 4)

Switching frequency – 2,000 Hz 5)

Connection type – Connector M8, 3-pin

MTTFD – 438 years

DCavg – 0 %

EU declaration of conformity – ✔

UK declaration of conformity – ✔

ACMA declaration of conformity – ✔

Moroccan declaration of conformity – ✔

China RoHS – ✔

cULus certificate – ✔

Laser safety (IEC 60825-1) certificate – ✔

ECLASS 5.0 – 27270902

ECLASS 5.1.4 – 27270902

ECLASS 6.0 – 27270902

ECLASS 6.2 – 27270902

ECLASS 7.0 – 27270902

ECLASS 8.0 – 27270902

ECLASS 8.1 – 27270902

ECLASS 9.0 – 27270902

ECLASS 10.0 – 27270902
