SPARECRUX is NOT an authorized distributor for SICK SENSORS

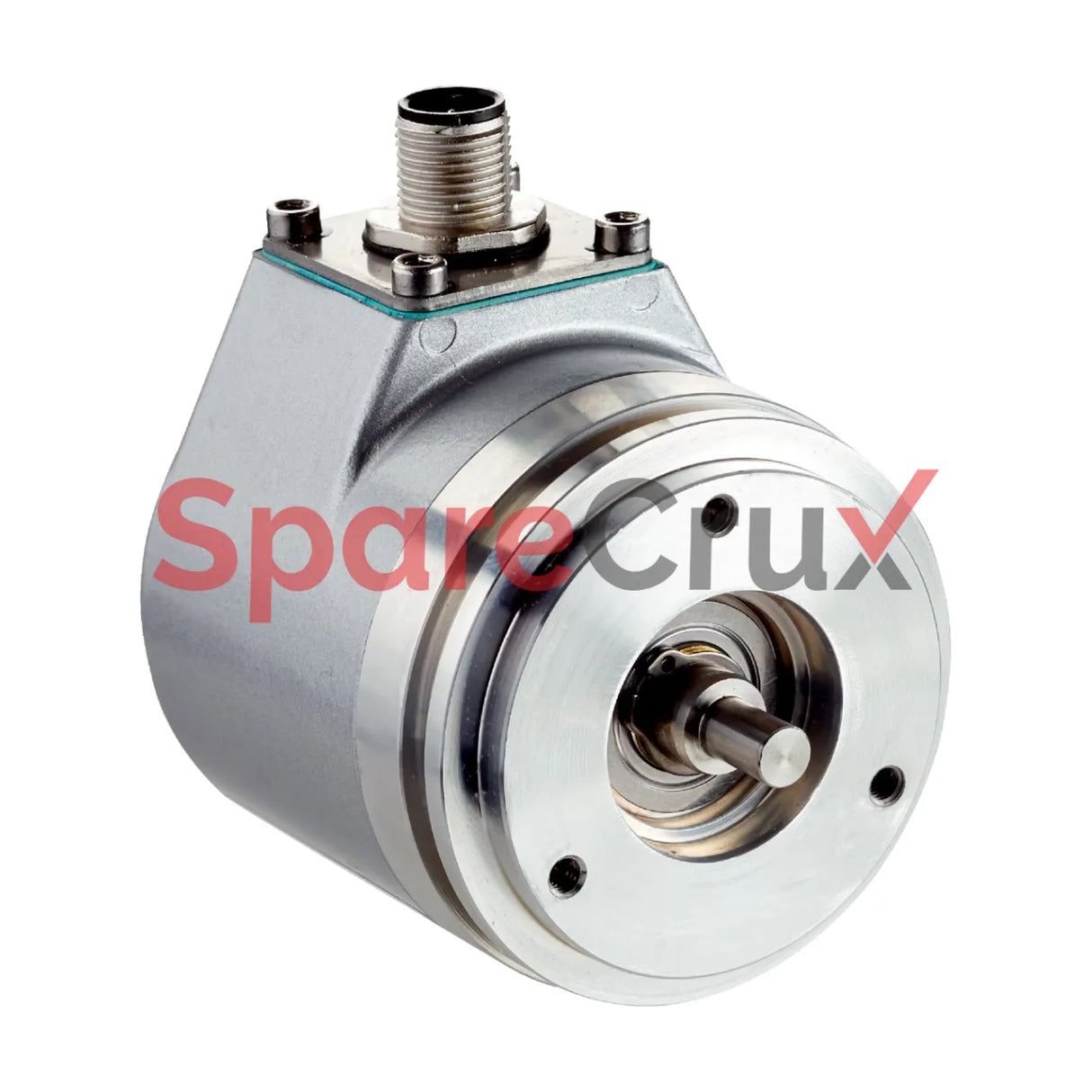

6045312 | SICK SENSORS | ACM60B-S1KE13X06 Absolute Encoders

₹ 59,276.00

●   Available for backorder, with an estimated lead time of 8 to 12 weeks.

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

6045312

Original Equipment Manufacturer

SICK SENSORS

Descripción
Connection type Male connector, M12, 5-pin, radial
Supply voltage 18 ... 33 V DC
Current consumption < 80 mA
Mechanical design Solid shaft, Servo flange
Shaft diameter 6 mm
Shaft length 10 mm
Weight 0.4 kg
Shaft material Stainless steel
Flange material Aluminum
Housing material Aluminum die cast
Start up torque 0.5 Ncm (+20 °C)
Operating torque 0.3 Ncm (+20 °C)
Permissible shaft loading

60 N (radial)

30 N (axial)
Operating speed ≤ 10,000 min⁻¹



SICK SENSORS 6045312 ACM60B-S1KE13X06 Absolute Encoders
SICK SENSORS

6045312 | SICK SENSORS | ACM60B-S1KE13X06 Absolute Encoders

₹ 59,276.00
Connection type Male connector, M12, 5-pin, radial
Supply voltage 18 ... 33 V DC
Current consumption < 80 mA
Mechanical design Solid shaft, Servo flange
Shaft diameter 6 mm
Shaft length 10 mm
Weight 0.4 kg
Shaft material Stainless steel
Flange material Aluminum
Housing material Aluminum die cast
Start up torque 0.5 Ncm (+20 °C)
Operating torque 0.3 Ncm (+20 °C)
Permissible shaft loading

60 N (radial)

30 N (axial)
Operating speed ≤ 10,000 min⁻¹
