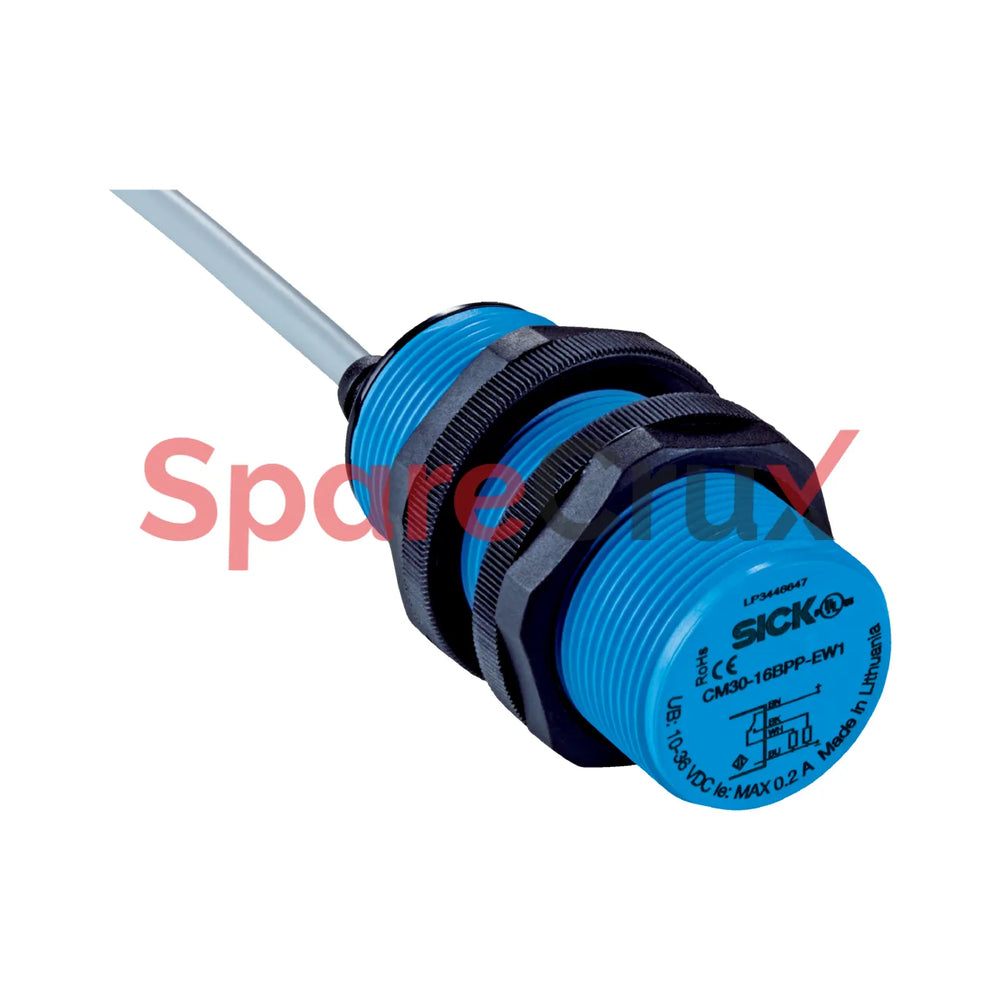

6058152 | SICK SENSORS | CM30-16BPP-EW1 Capacitive Proximity Sensors

₹ 11,631.60
Get Best Price on WhatsApp

Product Description
Housing Metric
Thread size M30 x 1.5
Diameter Ø 30 mm
Sensing range Sn 0 mm ... 16 mm
Safe sensing range Sa 12.24 mm 1)
Installation type Flush
Switching frequency 50 Hz
Connection type Cable, 4-wire, 2 m 2)
Switching output PNP
Switching output detail PNP
Output function Complementary
Output characteristic Wire configurable
Supply voltage 10 V DC ... 36 V DC
Ripple ≤ 10 % 1)
Voltage drop ≤ 2 V DC 2)
Current consumption 12 mA 3)
Time delay before availability ≤ 200 ms
Hysteresis 3 % ... 20 %
Reproducibility

≤ 5 % 4)

 5)
Temperature drift (of Sr) ± 10 %
EMC According to EN 60947-5-2
Continuous current Ia ≤ 200 mA
Cable material PVC
Conductor size 0.34 mm²



Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

SPARECRUX is NOT an authorized distributor for SICK SENSORS

Manufacturer Part Number (MPN)

6058152

Original Equipment Manufacturer

SICK SENSORS

PDF Product Datasheet

  • 100% Tested & Verified Products

  • GST Invoice Available

  • Warranty Included

  • Trusted by 5000+ Industrial Buyers

Housing - Metric

Thread size - M30 x 1.5

Diameter - Ø 30 mm

Sensing range Sn - 0 mm ... 16 mm

Safe sensing range Sa - 12.24 mm 1)

Installation type - Flush

Switching frequency - 50 Hz

Connection type - Cable, 4-wire, 2 m 2)

Switching output - PNP

Switching output detail - PNP

Output function - Complementary

Supply voltage - 10 V DC ... 36 V DC

Ripple - ≤ 10 % 1)

Voltage drop - ≤ 2 V DC 2)

Current consumption - 12 mA 3)

Time delay before availability - ≤ 200 ms

Hysteresis - 3 % ... 20 %

Reproducibility - ≤ 5 % 4) 5)

Temperature drift (of Sr) - ± 10 %

EMC - According to EN 60947-5-2

Continuous current Ia - ≤ 200 mA

Cable material - PVC

MTTFD - 919 years

DCavg - 0 %

TM (mission time) - 20 years

EU declaration of conformity - ✔

UK declaration of conformity - ✔

Moroccan declaration of conformity - ✔

China RoHS - ✔

cULus certificate - ✔

ECLASS 5.1.4 - 27270102

ECLASS 6.0 - 27270102

ECLASS 7.0 - 27270102

ECLASS 8.0 - 27270102

ECLASS 9.0 - 27270102

ECLASS 10.0 - 27270102
