SPARECRUX is NOT an authorized distributor for SCHNEIDER ELECTRIC

This product has been discontinued, and manufacturer warranty or support may no longer be available.

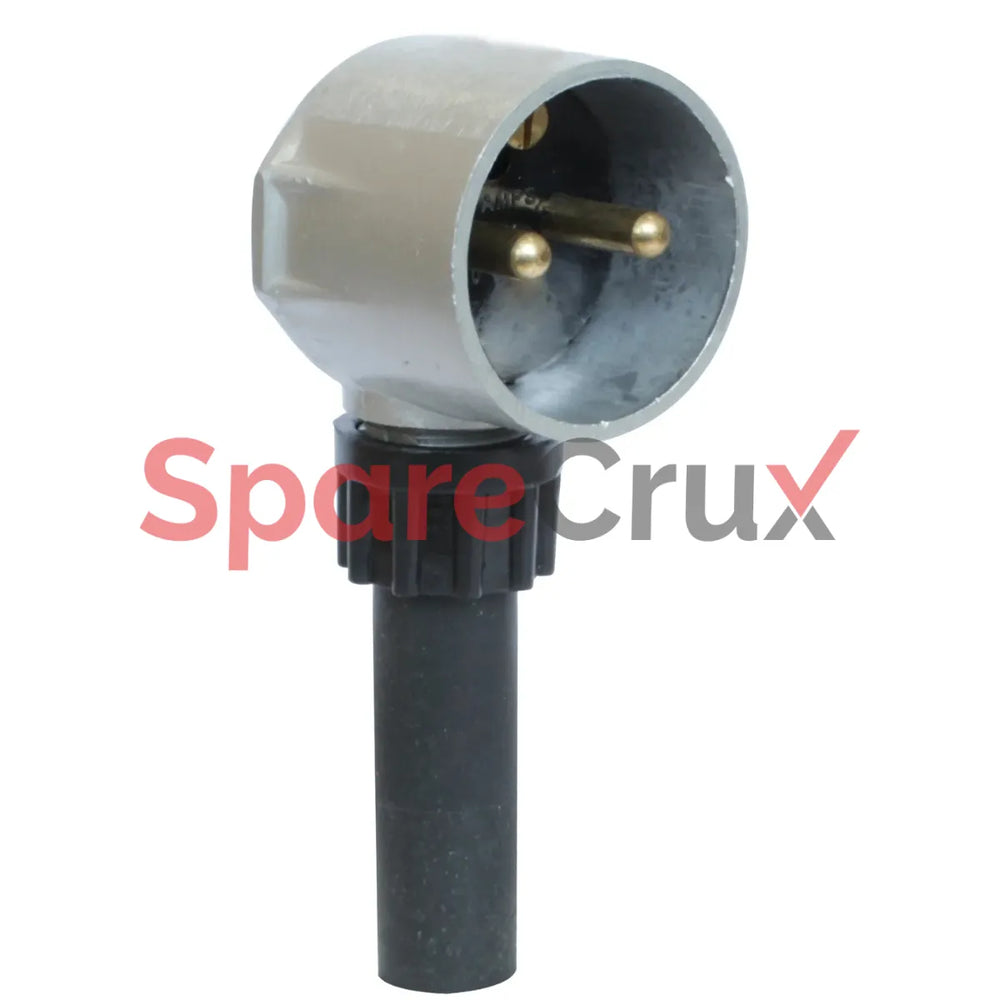

AP10 | SCHNEIDER ELECTRIC | Electra Metal‑Clad Protected Plug, 10 A, 250 VAC

₹ 3,696.93

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

AP10

Original Equipment Manufacturer

SCHNEIDER ELECTRIC

Descripción

Manufacturer Schneider Electric (Electra Series)
Device Type Metal‑clad Protected Plug / Socket
Rated Current 10 A
Rated Voltage 250 V AC, 50/60 Hz
Polarisation Shuttered & earthing pin first for safety
Contact Position 6 h clock position marking
Socket Colour Grey RAL 7035 with blue voltage‑ID marking
Housing Material Sturdy durable thermoplastic (UL94‑V0)
Mounting Panel or surface mounting with mounting box accessory
Ingress Protection IP44 (front) / IP20 (rear terminals)
Terminal Capacity Solid or flexible cables up to 2.5 mm²
Weight Approx. 90 g
Compliance IEC 60309; RoHS / REACH compliant
SCHNEIDER ELECTRIC

AP10 | SCHNEIDER ELECTRIC | Electra Metal‑Clad Protected Plug, 10 A, 250 VAC

₹ 3,696.93
Manufacturer Schneider Electric (Electra Series)
Device Type Metal‑clad Protected Plug / Socket
Rated Current 10 A
Rated Voltage 250 V AC, 50/60 Hz
Polarisation Shuttered & earthing pin first for safety
Contact Position 6 h clock position marking
Socket Colour Grey RAL 7035 with blue voltage‑ID marking
Housing Material Sturdy durable thermoplastic (UL94‑V0)
Mounting Panel or surface mounting with mounting box accessory
Ingress Protection IP44 (front) / IP20 (rear terminals)
Terminal Capacity Solid or flexible cables up to 2.5 mm²
Weight Approx. 90 g
Compliance IEC 60309; RoHS / REACH compliant
