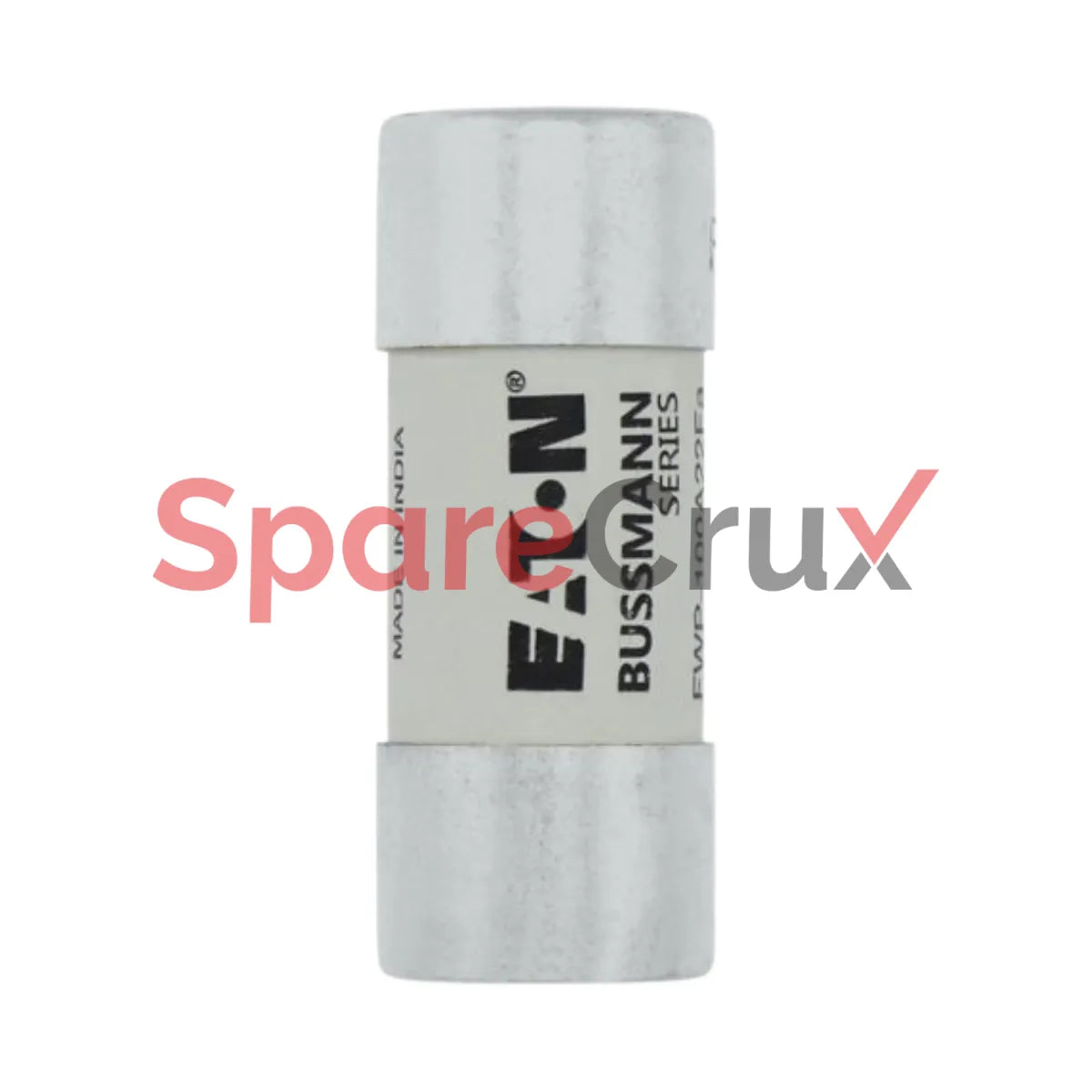

FWP-100A22FA | BUSSMANN | 100A FUSE
₹ 9,031.65
No se ha podido cargar la disponibilidad de recogida
Warranty
We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.
Delivery and Shipping
We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.
Manufacturer Part Number (MPN)
FWP-100A22FA
Original Equipment Manufacturer
BUSSMANN
Descripción
Specification
Details
Product Name
Eaton Bussmann Series High Speed Cylindrical Fuse
Catalog Number
FWP-100A22F
EAN
5027590500043
UPC
051712370882
Product Length/Depth
58 mm
Product Height
23 mm
Product Width
23 mm
Product Weight
62 g
Compliances
CE Marked, RoHS Compliant
Certifications
CSA Certified, UL Recognized
Used With
Finger safe holders/blocks and striker
Accessories
JM70100 Fuse base
Amperage Rating
100 A
Voltage Rating
700 V
Rated Voltage AC
700 V
Rated Voltage DC
700 V
Voltage Type
AC/DC
Breaking Capacity (AC)
200 kA
Breaking Capacity (DC)
50 kA
Interrupt Rating
200 kAIC
Class
Class aR
Utilization Category
aR (accompanied semiconductor protection)
Clearing (I2T)
15600
Minimum Melting (I2T)
110 A²s
Pre-Arc (I2T)
1100 A²s
Watt Losses
16.5 W
Fuse Shape
Cylindrical
Fuse Size
22 x 58 mm
Construction Size
22 mm x 58 mm
Material
Ceramic
Connection
Ferrule end x ferrule end
Color
White
Packaging Type
Standard
Quantity
10
Fuse Indicator
Other
Release Characteristic
Other
Type
High Speed Fuse
Application
Semiconductor, DC Common bus, DC drives, Power converters/rectifiers
Fuse Type
FWP-A22F
Frequency Rating
45 Hz – 62 Hz
