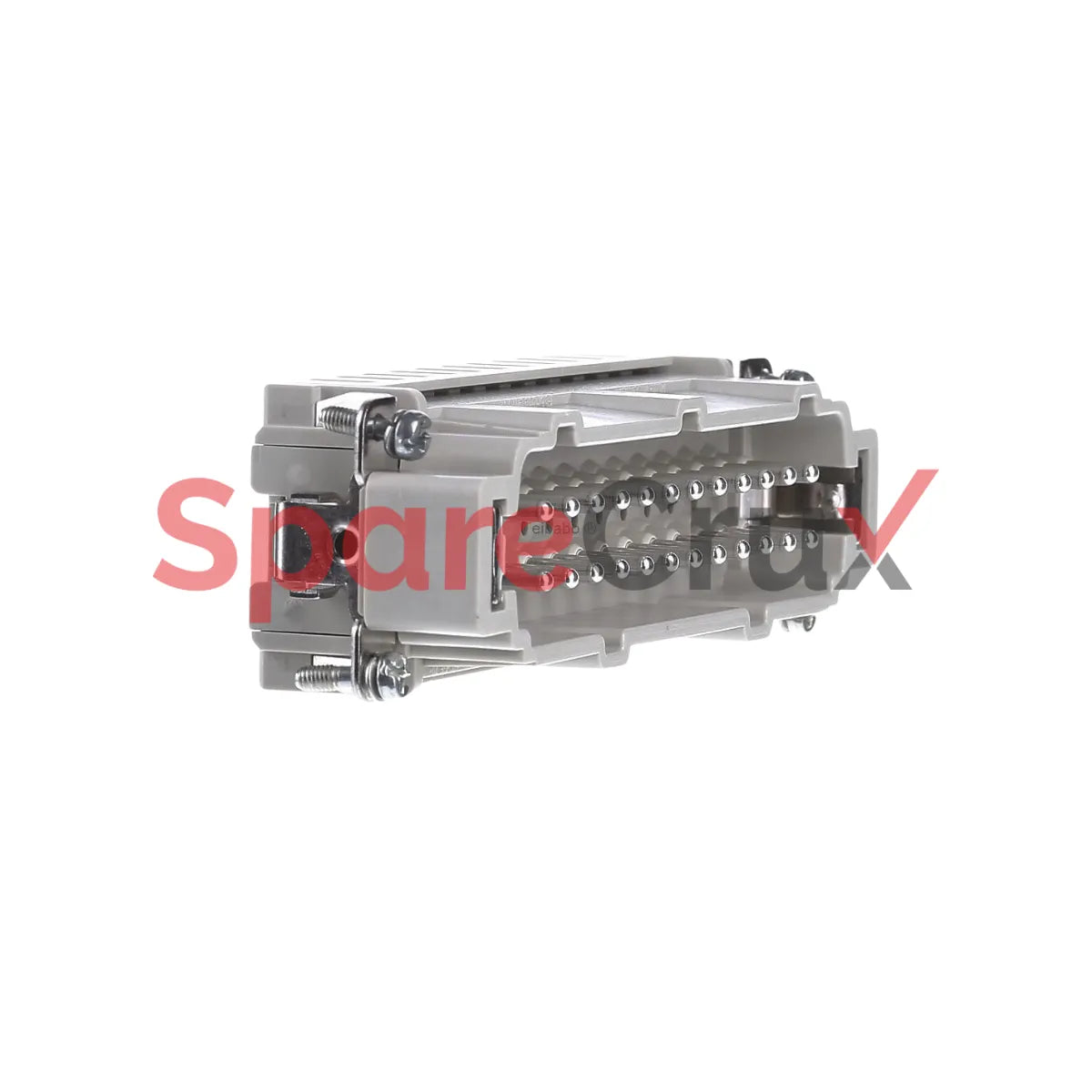

Han 24 ES-M | HARTING | 24 Pin Male Insert Connector, 16A, 500V

₹ 1,710.00

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

Han 24 ES-M

Original Equipment Manufacturer

HARTING

Descripción

Specification Details
Category Insulators
Series Han® ES
Termination Method Cage Clamp Termination
Type Male
Size 24 B
Number of Contacts 24
PE Contact Yes
Conductor Cross-section 0.14 ... 2.5 mm²
Wire Gauge [AWG] AWG 26 ... AWG 14
Rated Current 16 A
Rated Voltage 500 V
Rated Impulse Voltage 6 kV
Pollution Degree 3
Rated Voltage (UL) 600 V
Rated Voltage (CSA) 600 V
Insulating Material Polycarbonate (PC)
Insulator Color RAL 7032 (Pebble Grey)
Contact Material Copper Alloy
Contact Surface Silver Plated
Material Flammability Class (UL 94) V-0
RoHS Compliant with Exemption
RoHS Exemptions 6.c): Copper alloy containing up to 4% lead by weight
ELV Status Compliant with Exemption
HARTING

Han 24 ES-M | HARTING | 24 Pin Male Insert Connector, 16A, 500V

₹ 1,710.00
Specification Details
Category Insulators
Series Han® ES
Termination Method Cage Clamp Termination
Type Male
Size 24 B
Number of Contacts 24
PE Contact Yes
Conductor Cross-section 0.14 ... 2.5 mm²
Wire Gauge [AWG] AWG 26 ... AWG 14
Rated Current 16 A
Rated Voltage 500 V
Rated Impulse Voltage 6 kV
Pollution Degree 3
Rated Voltage (UL) 600 V
Rated Voltage (CSA) 600 V
Insulating Material Polycarbonate (PC)
Insulator Color RAL 7032 (Pebble Grey)
Contact Material Copper Alloy
Contact Surface Silver Plated
Material Flammability Class (UL 94) V-0
RoHS Compliant with Exemption
RoHS Exemptions 6.c): Copper alloy containing up to 4% lead by weight
ELV Status Compliant with Exemption
