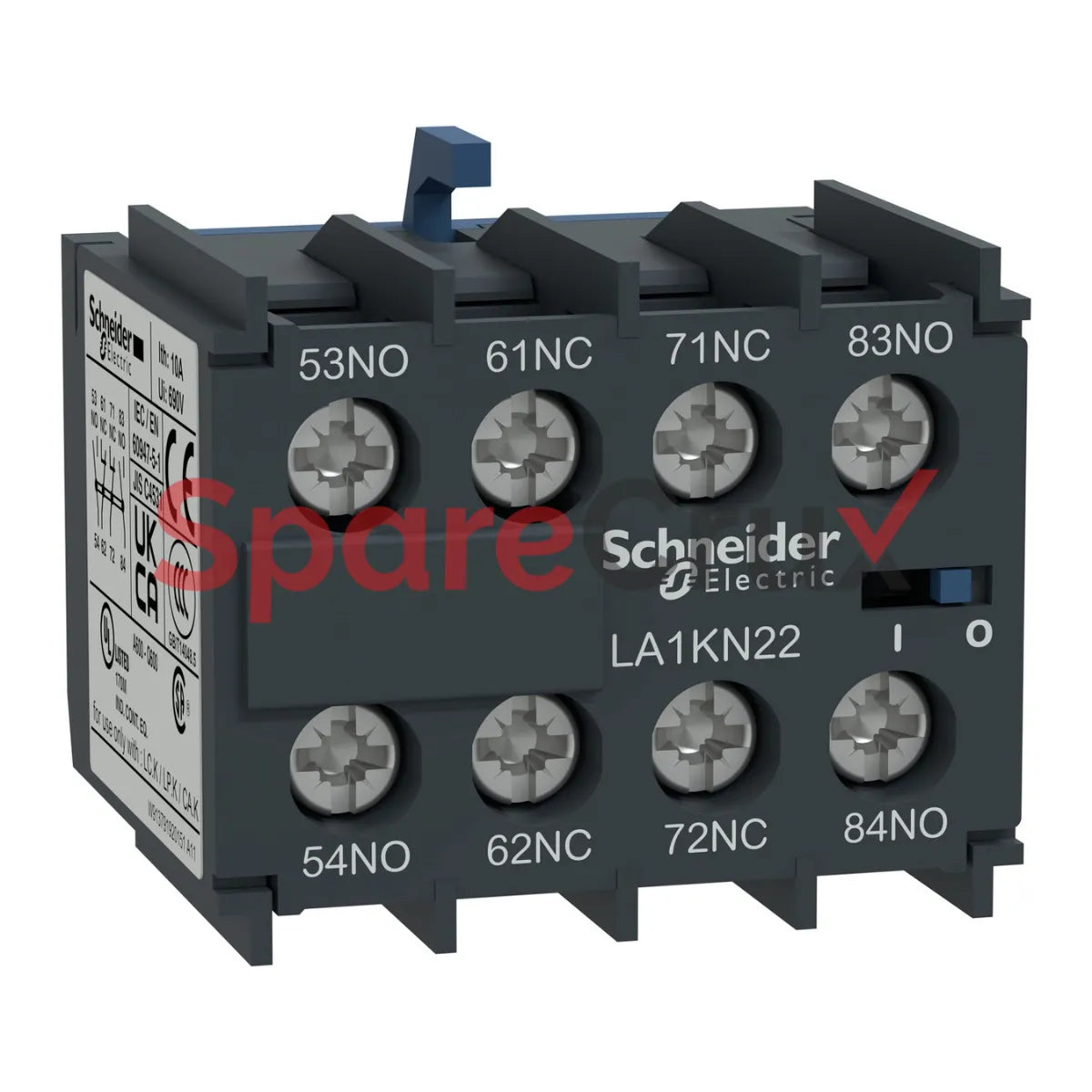

LA1 KN22 | SCHNEIDER ELECTRIC | TeSys K - Auxiliary contact block - 2 NO + 2 NC - screw-clamps terminals

₹ 1,937.97

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

LA1 KN22

Original Equipment Manufacturer

SCHNEIDER ELECTRIC

Descripción
Range of product TeSys K
Device short name LA1KN22
Contact configuration 2 NO + 2 NC (instantaneous)
Rated operational voltage (Ue) ≤ 690 V AC (25 … 400 Hz)
Rated insulation voltage (Ui) 690 V IEC; 600 V UL/CSA
Conventional thermal current (Ith) 10 A @ 50 °C
Making capacity (Irms) 110 A @ ≤ 690 V AC
Switching capacity (short‑time) 80 A @ 1 s; 60 A @ 500 ms; 110 A @ 100 ms
Mounting style Front‑clip mounting on TeSys K contactors
Terminals Screw clamp: 0.34…4 mm² flexible/solid cable
Dimensions (H×W×D) 30 × 38 × 35 mm
Weight ≈ 0.045 kg
Operating temp. −25…50 °C; storage −50…80 °C
Protection degree IP20
Standards & certifications EN/IEC 60947‑5‑1; UL 60947‑5‑1; CSA C22.2; CCC; CB Scheme
Rated current 10 A; up to 690 V AC contact rating
