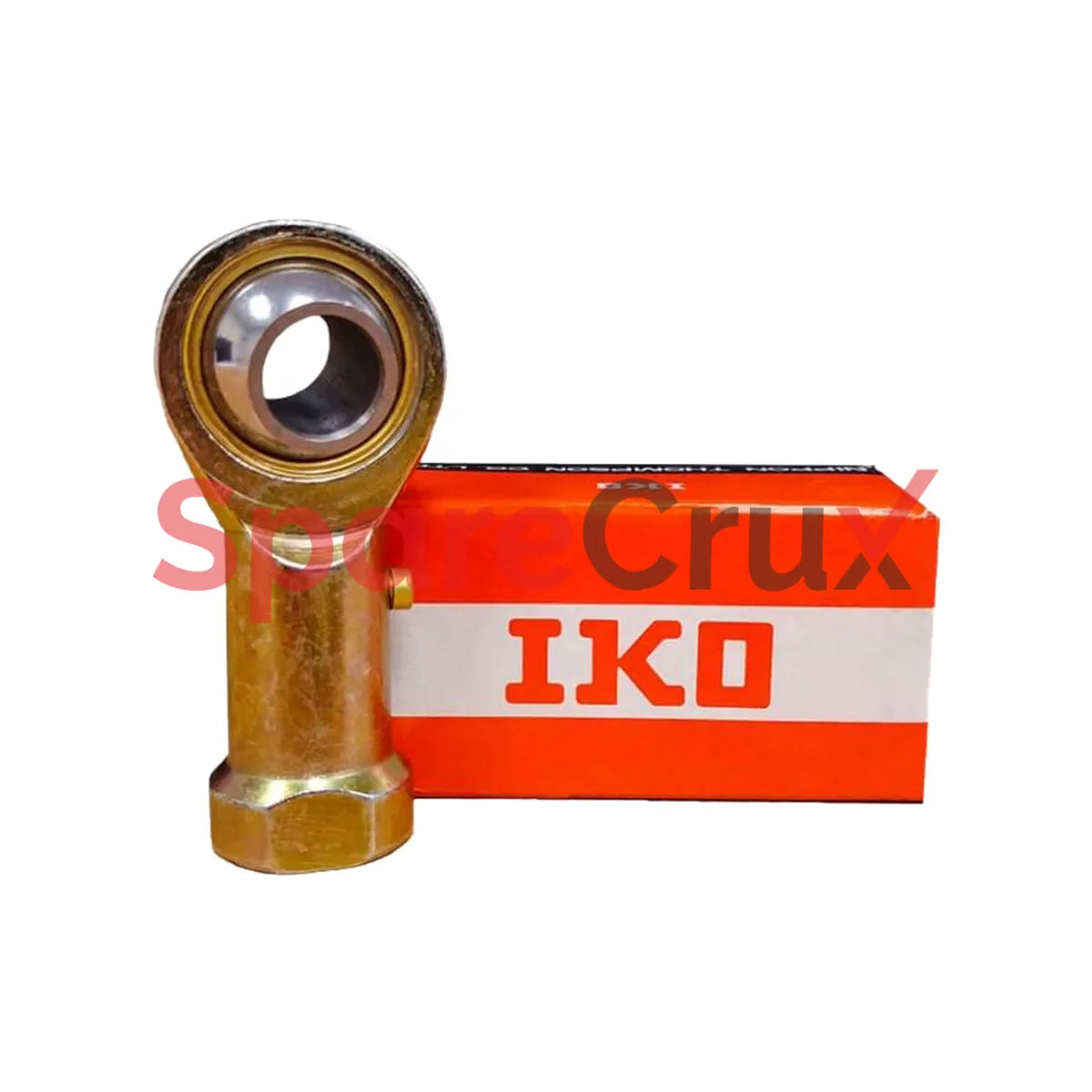

PHSB8L | IKO | Left Hand Lubrication Type Rod End With Female Thread

₹ 3,029.98

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

PHSB8L

Original Equipment Manufacturer

IKO

Descripción
Brand IKO
Model No PHSB8L
Type Rod End – Left Hand Thread, Female Thread (Lubrication Type)
Bore Diameter (Inner Ring) 12.7 mm (0.500 in) :contentReference[oaicite:1]{index=1}
Outer Diameter 33.32 mm :contentReference[oaicite:2]{index=2}
Width / Thickness 12.7 mm (approx) :contentReference[oaicite:3]{index=3}
Dynamic Load Rating (Cd) ~14.8 kN :contentReference[oaicite:4]{index=4}
Static Load Rating (Cs) ~36.2 kN :contentReference[oaicite:5]{index=5}
Thread Size / Direction 1/2‑20 UNF (Left Hand) :contentReference[oaicite:6]{index=6}
Lubrication Type Lubrication type with grease nipple (requires maintenance) :contentReference[oaicite:7]{index=7}
Operating Temperature Range ‑20 °C to +180 °C (typical for this series) :contentReference[oaicite:8]{index=8}
Application / Suitability Used in link mechanisms, machine tools, packaging machines—supports radial + axial loads :contentReference[oaicite:9]{index=9}
IKO

PHSB8L | IKO | Left Hand Lubrication Type Rod End With Female Thread

₹ 3,029.98
Brand IKO
Model No PHSB8L
Type Rod End – Left Hand Thread, Female Thread (Lubrication Type)
Bore Diameter (Inner Ring) 12.7 mm (0.500 in) :contentReference[oaicite:1]{index=1}
Outer Diameter 33.32 mm :contentReference[oaicite:2]{index=2}
Width / Thickness 12.7 mm (approx) :contentReference[oaicite:3]{index=3}
Dynamic Load Rating (Cd) ~14.8 kN :contentReference[oaicite:4]{index=4}
Static Load Rating (Cs) ~36.2 kN :contentReference[oaicite:5]{index=5}
Thread Size / Direction 1/2‑20 UNF (Left Hand) :contentReference[oaicite:6]{index=6}
Lubrication Type Lubrication type with grease nipple (requires maintenance) :contentReference[oaicite:7]{index=7}
Operating Temperature Range ‑20 °C to +180 °C (typical for this series) :contentReference[oaicite:8]{index=8}
Application / Suitability Used in link mechanisms, machine tools, packaging machines—supports radial + axial loads :contentReference[oaicite:9]{index=9}
