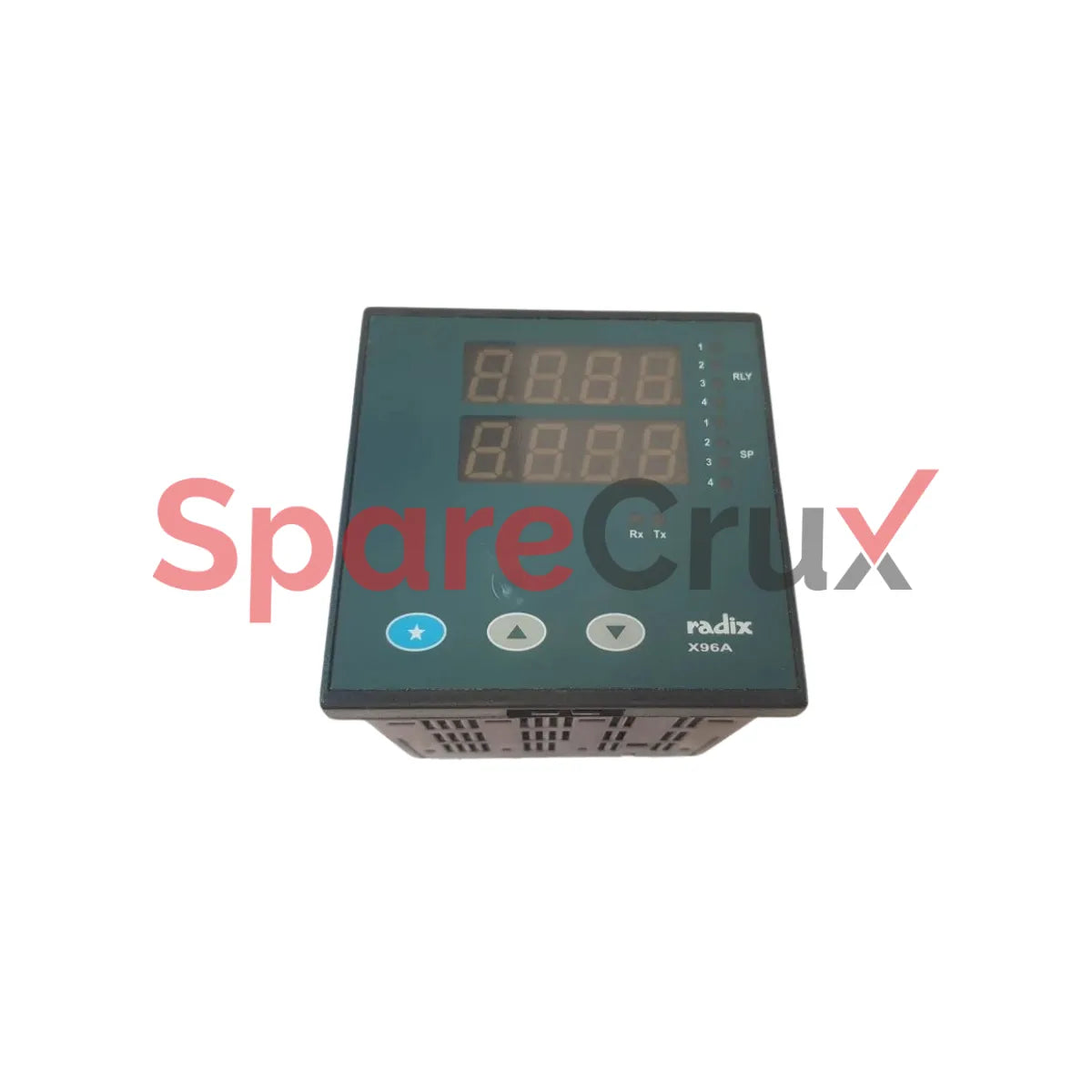

X96A | RADIX | Flameproof on-Off Controller

₹ 13,302.54

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

X96A

Original Equipment Manufacturer

RADIX

Descripción
Model X96A Programmable ON/OFF Controller
Control Type ON/OFF Control (also available in a PID version, X96P)
Input Universal Input (x2): Accepts 8/11 types of Thermocouples (T/C), Pt100 (RTD), Current (0/4-20 mA), and Voltage (0-50 mV)
Set Points Up to 4 programmable set points
Output Relay (x1 to x4): NO-C-NC type, 5A / 230V AC rating
Analog Output 0 / 1 / 2 isolated retransmission outputs (4-20 mA, 0-10 V DC, etc.)
Display Dual LED Display: 4-digit red (Process Value), 4-digit green (Set Point)
Communication RS485 / MODBUS RTU (Optional)
Transmitter Supply 24 V DC (for 2-wire transmitters)
Supply Voltage 85-265 V AC (SMPS) or 20-35 V DC (Optional)
Dimensions 96(H) x 96(W) x 100(D) mm
Mounting Panel Mount (Panel cutout: 92 x 92 mm)
Accuracy 0.1% of the full scale
RADIX

X96A | RADIX | Flameproof on-Off Controller

₹ 13,302.54
Model X96A Programmable ON/OFF Controller
Control Type ON/OFF Control (also available in a PID version, X96P)
Input Universal Input (x2): Accepts 8/11 types of Thermocouples (T/C), Pt100 (RTD), Current (0/4-20 mA), and Voltage (0-50 mV)
Set Points Up to 4 programmable set points
Output Relay (x1 to x4): NO-C-NC type, 5A / 230V AC rating
Analog Output 0 / 1 / 2 isolated retransmission outputs (4-20 mA, 0-10 V DC, etc.)
Display Dual LED Display: 4-digit red (Process Value), 4-digit green (Set Point)
Communication RS485 / MODBUS RTU (Optional)
Transmitter Supply 24 V DC (for 2-wire transmitters)
Supply Voltage 85-265 V AC (SMPS) or 20-35 V DC (Optional)
Dimensions 96(H) x 96(W) x 100(D) mm
Mounting Panel Mount (Panel cutout: 92 x 92 mm)
Accuracy 0.1% of the full scale
