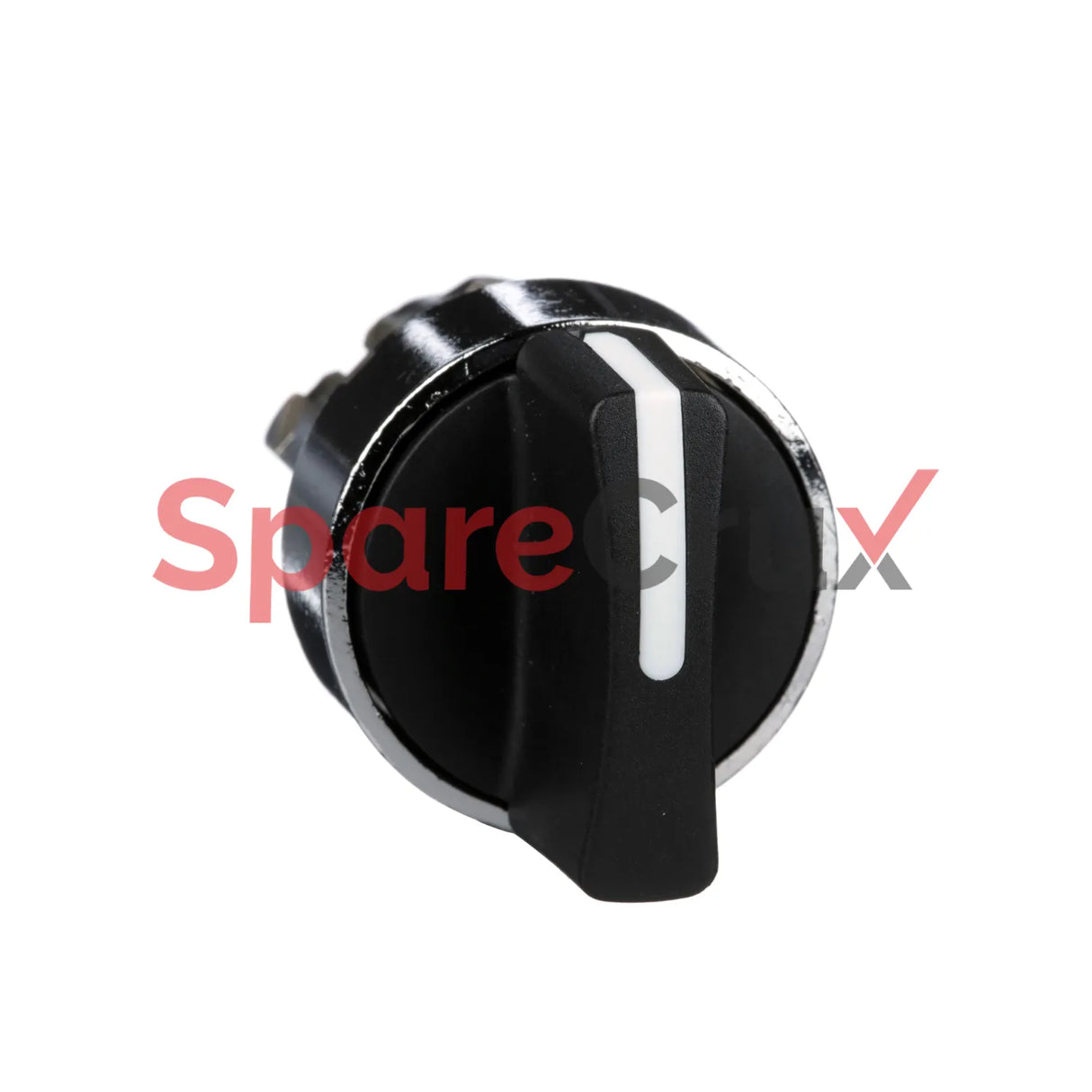

ZB4 BD2 | SCHNEIDER ELECTRIC | black selector switch head Ø22 2-position stay put

₹ 2,061.50

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

ZB4 BD2

Original Equipment Manufacturer

SCHNEIDER ELECTRIC

Descripción
Range of product Harmony XB4
Product or component type Head for selector switch
Device short name ZB4
Bezel material Chromium plated metal
Mounting diameter 22 mm
Head type Standard
Shape of signaling unit head Round
Type of operator Stay put (maintained)
Operator profile Black standard handle
Operator positions 2 positions, 90°
Sale per indivisible quantity 1
CAD overall width 29 mm
CAD overall height 29 mm
CAD overall depth 44 mm
Net weight ≈ 0.04 kg
Resistance to high-pressure washer 7,000,000 Pa at 55 °C, distance 0.1 m
Mechanical durability 1,000,000 cycles
Electrical composition code C3–C15 depending on assembly config
Protective treatment TH (thermal treatment)
Ambient air temperature for operation/storage −40…70 °C
Overvoltage category Class I (IEC 60536)
IP degree of protection IP67, IP69, IP69K
NEMA degree of protection NEMA 13, 4X
IK degree of protection IK06
Standards & certifications IEC 60947‑1, ‑5‑1, ‑5‑4, ‑5‑5; UL 508; CSA C22.2 No 14; JIS C8201; BV; DNV; GL; RINA; LROS; UL listed
Vibration resistance 5 gn (2–500 Hz)
Shock resistance 30 gn (18 ms) & 50 gn (11 ms)
Sustainable offer status Green Premium product; RoHS compliant; REACh SVHC free
