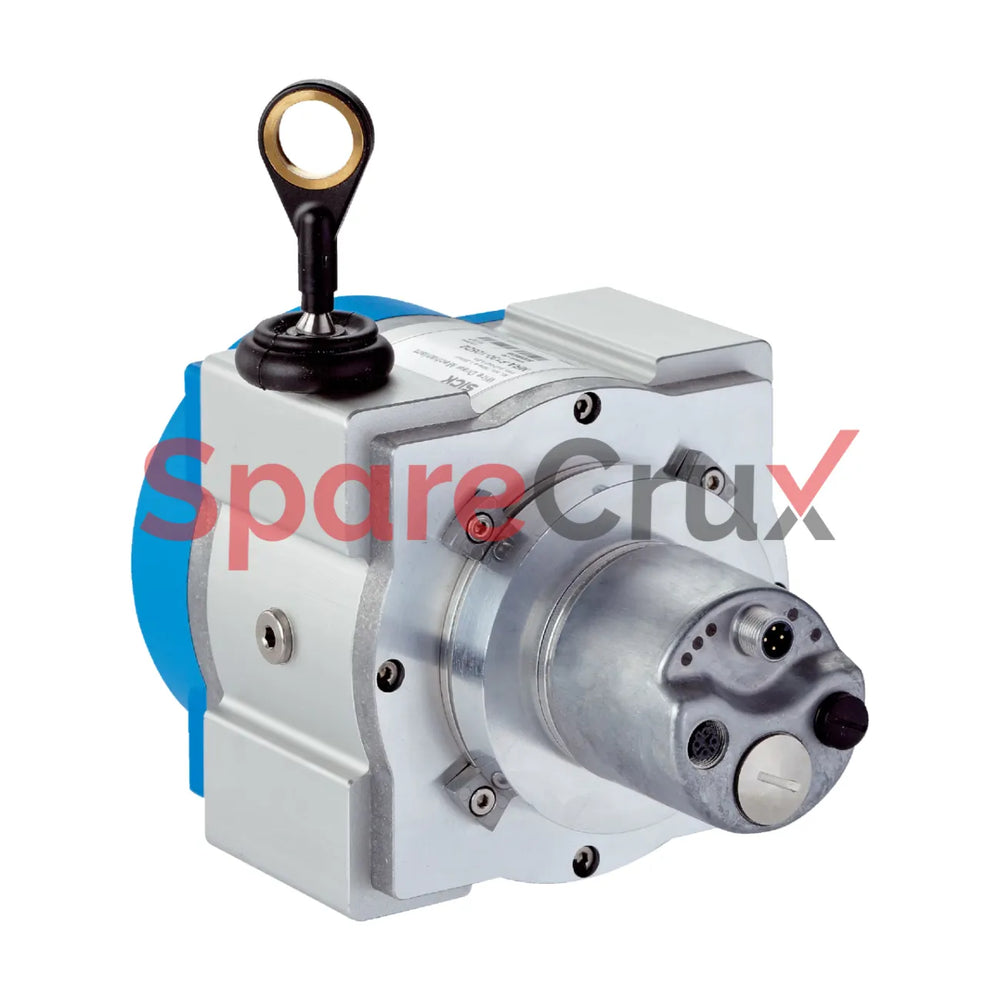

1060986 | SICK SENSORS | BTF13-N1BM0599 Wire Draw Encoder

₹ 169,407.00
Get Best Price on WhatsApp

Product Description
Connection type

Male connector, 1x, M12, 4-pin, axial

Female connector, 2x, M12, 4-pin, axial
Supply voltage 10 V DC ... 30 V DC
Weight 3 kg
Measuring wire material Highly flexible stranded steel 1,4401 stainless steel V4A
Measuring wire diameter 1.35 mm
Weight (measuring wire) 7.1 g/m
Housing material, wire draw mechanism Aluminum (anodised), plastic
Spring return force 15 N ... 20 N 1)
Length of wire pulled out per revolution 334.1 mm
Life of wire draw mechanism Typ. 1,000,000 cycles 2) 3)
Actual wire draw length 5.2 m
Wire acceleration 70 m/s²
Operating speed 8 m/s



Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

SPARECRUX is NOT an authorized distributor for SICK SENSORS

Manufacturer Part Number (MPN)

1060986

Original Equipment Manufacturer

SICK SENSORS

PDF Product Datasheet

  • 100% Tested & Verified Products

  • GST Invoice Available

  • Warranty Included

  • Trusted by 5000+ Industrial Buyers

Not applicable for this product

Connection type - Male connector, 1× M12, 4-pin, axial; Female connector, 2× M12, 4-pin, axial

Supply voltage - 10 V DC ... 30 V DC

Power consumption - ≤ 3 W (without load)

Weight - 3 kg

Measuring wire material - Highly flexible stranded steel, 1.4401 stainless steel (V4A)

Measuring wire diameter - 1.35 mm

Weight (measuring wire) - 7.1 g/m

Housing material, wire draw mechanism - Aluminum (anodised), plastic

Spring return force - 15 N ... 20 N

MTTFD (Mean Time to Dangerous Failure) - 80 years (EN ISO 13849-1)

EU Declaration of Conformity - ✔

UK Declaration of Conformity - ✔

ACMA Declaration of Conformity - ✔

Moroccan Declaration of Conformity - ✔

China RoHS - ✔

ECLASS 5.1.4 - 27270502

ECLASS 6.0 - 27270590

ECLASS 7.0 - 27270590

ECLASS 8.0 - 27270590

ECLASS 9.0 - 27270590

ECLASS 10.0 - 27270613
