SPARECRUX is NOT an authorized distributor for SICK SENSORS

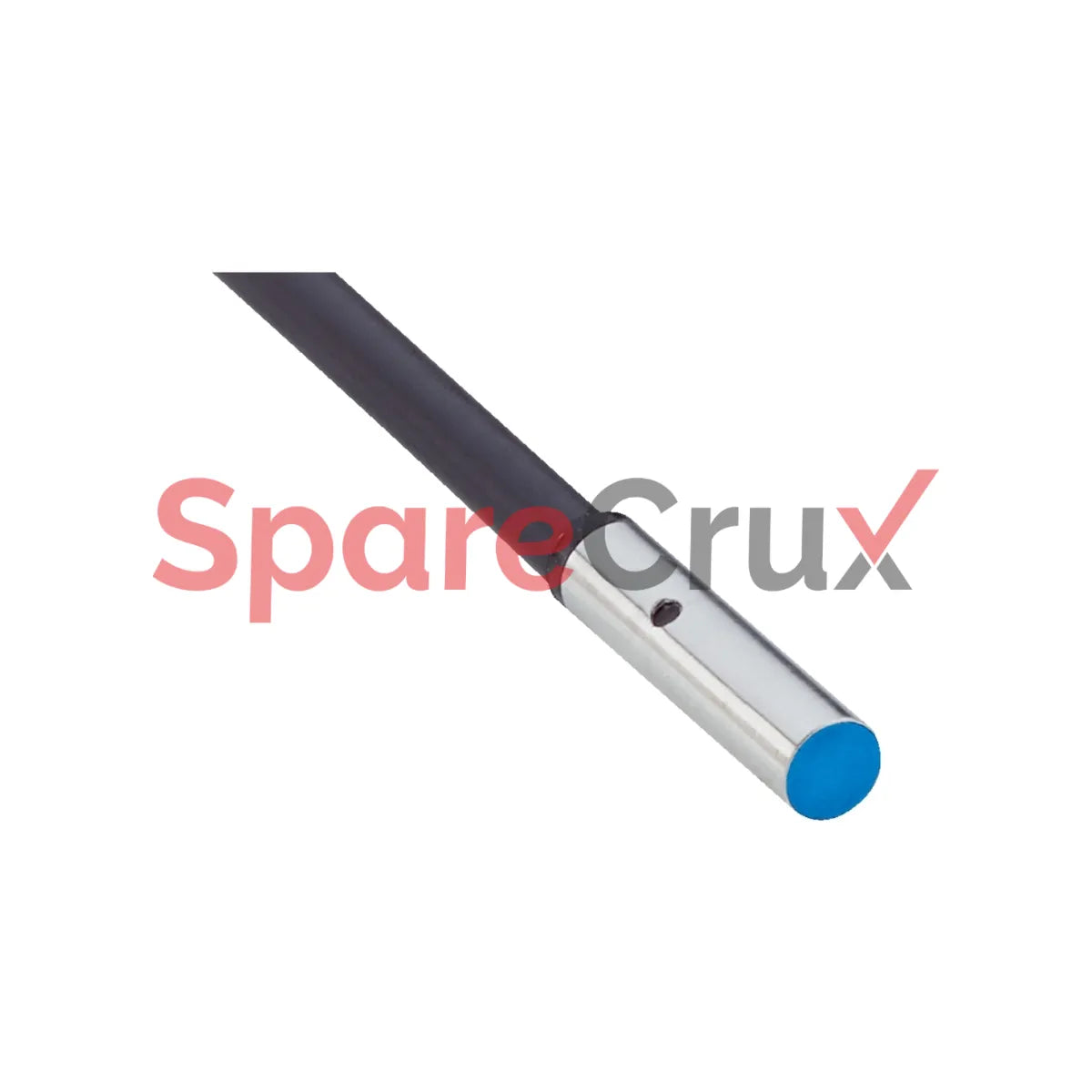

1103564 | SICK SENSORS | IHM03-1B5PSVU2S Inductive Proximity Sensor

₹ 5,304.00

  Available for backorder, with an estimated lead time of 8 to 12 weeks.

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

1103564

Original Equipment Manufacturer

SICK SENSORS

説明

Housing Cylindrical
Housing Standard design
Diameter Ø 3 mm
Sensing range Sn 1.5 mm
Safe sensing range Sa 1.215 mm
Installation type Quasi-flush
Switching frequency 4,400 Hz
Connection type Cable, 3-wire, 2 m
Switching output PNP
Switching output detail PNP
Supply voltage 10 V DC ... 30 V DC
Ripple ≤ 20 % 1)
Voltage drop ≤ 2 V 2)
Time delay before availability ≤ 30 ms
Hysteresis 1 % ... 20 %
Reproducibility ≤ 2.5 % 3)
Temperature drift (of Sr) ≤ 10 %
Cable material PUR
Conductor size 0.08 mm²
Cable diameter Ø 2.5 mm
