SPARECRUX is NOT an authorized distributor for SICK SENSORS

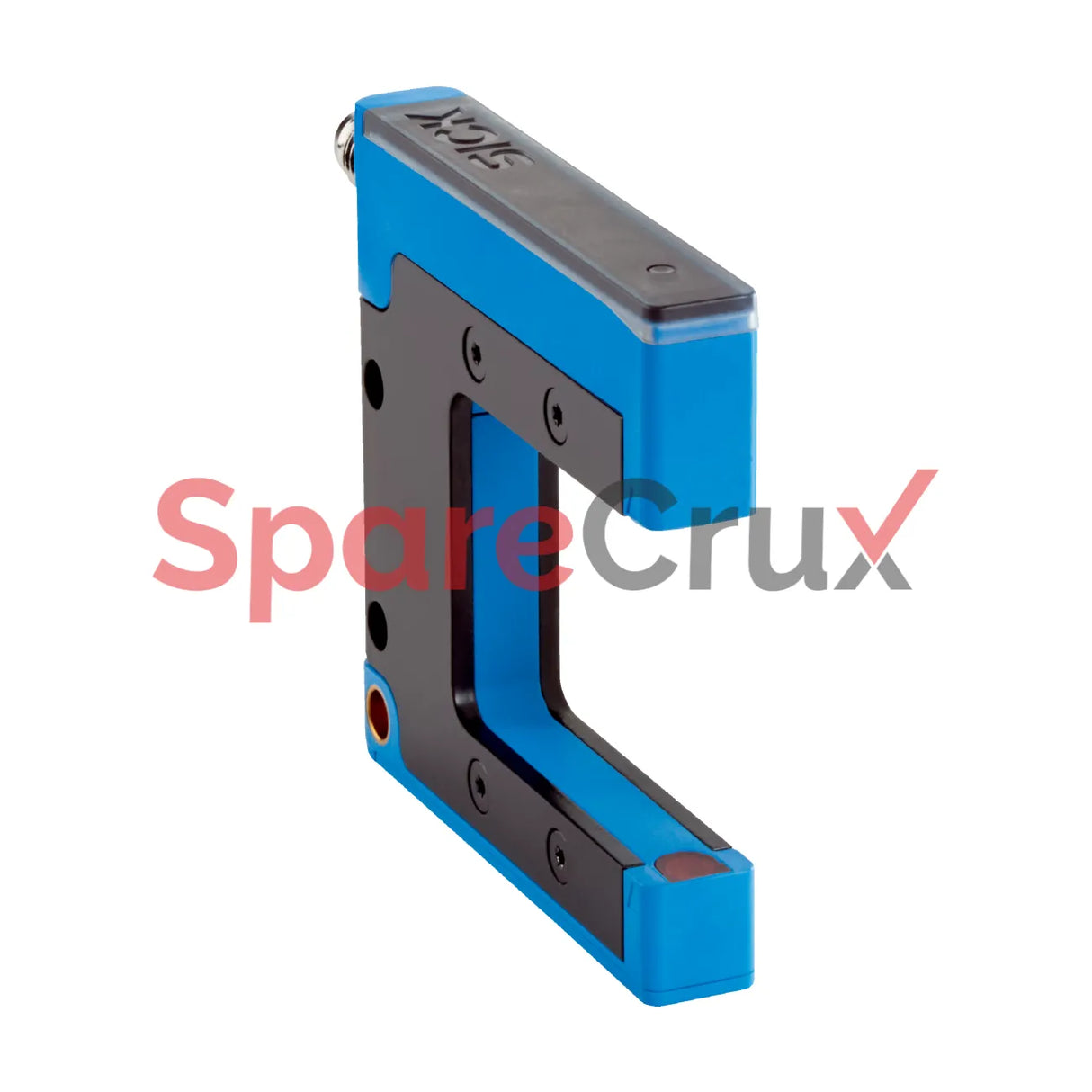

1106551 | SICK SENSORS | WFE-030040B321 Fork Sensor

₹ 7,408.00

●   Available for backorder, with an estimated lead time of 8 to 12 weeks.

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

1106551

Original Equipment Manufacturer

SICK SENSORS

説明
Dimensions (W x H x D) 10 mm x 59.3 mm x 60.5 mm
Fork width 30 mm
Fork depth 40 mm
Minimum detectable object (MDO) 0.5 mm
Supply voltage 10 V DC ... 30 V DC
Ripple < 10 %
Current consumption < 30 mA 1)
Switching frequency 5 kHz
Response time ≤ 100 µs
Stability of response time ± 20 µs
Switching output Push-pull: PNP/NPN
Switching output (voltage) Push-pull: PNP/NPN High = UV - < 2 V/Low: ≤ 2 V
Switching mode Dark switching
Switching output hysteresis < 0.1 mm
Output current Imax. 100 mA



SICK SENSORS 1106551 WFE-030040B321 Fork Sensor
SICK SENSORS

1106551 | SICK SENSORS | WFE-030040B321 Fork Sensor

₹ 7,408.00
Dimensions (W x H x D) 10 mm x 59.3 mm x 60.5 mm
Fork width 30 mm
Fork depth 40 mm
Minimum detectable object (MDO) 0.5 mm
Supply voltage 10 V DC ... 30 V DC
Ripple < 10 %
Current consumption < 30 mA 1)
Switching frequency 5 kHz
Response time ≤ 100 µs
Stability of response time ± 20 µs
Switching output Push-pull: PNP/NPN
Switching output (voltage) Push-pull: PNP/NPN High = UV - < 2 V/Low: ≤ 2 V
Switching mode Dark switching
Switching output hysteresis < 0.1 mm
Output current Imax. 100 mA
