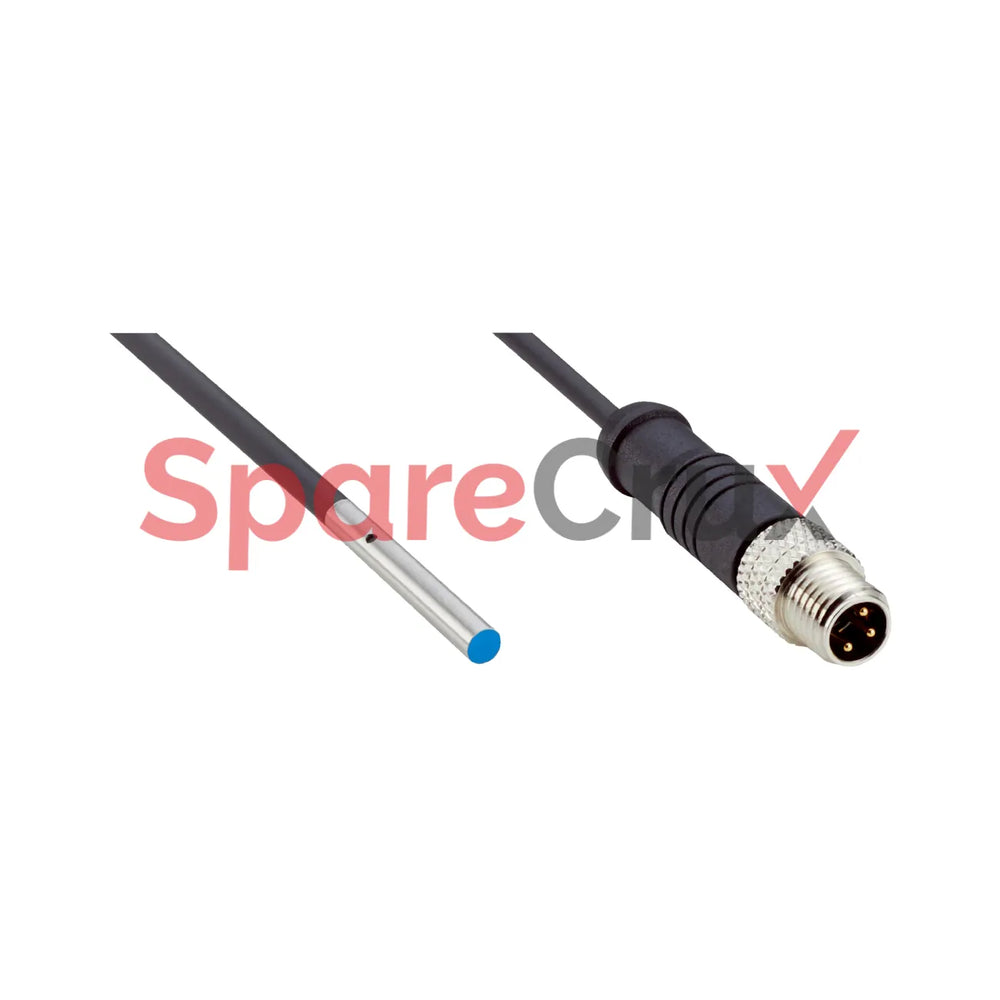

1108736 | SICK SENSORS | IHM03-0B6PSVR8S Inductive Proximity Sensor

₹ 3,646.80

Get Best Price on WhatsApp

Product Description

Housing Cylindrical
Housing Standard design
Diameter Ø 3 mm
Sensing range Sn 0.6 mm
Safe sensing range Sa 0.486 mm
Installation type Flush
Switching frequency 5,000 Hz
Connection type Cable with connector M8, 3-pin, 0.2 m
Housing material Stainless steel V2A, DIN 1.4305 / AISI 303
Sensing face material Plastic, LCP
Housing length 22 mm



Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


SPARECRUX is NOT an authorized distributor for SICK SENSORS

Manufacturer Part Number (MPN)

1108736

Original Equipment Manufacturer

SICK SENSORS

PDF Product Datasheet
  • 100% Tested & Verified Products

  • GST Invoice Available

  • Warranty Included

  • Trusted by 5000+ Industrial Buyers

Housing - Cylindrical

Housing - Standard design

Diameter - Ø 3 mm

Sensing range (Sn) - 0.6 mm

Safe sensing range (Sa) - 0.486 mm

Installation type - Flush

Switching frequency - 5,000 Hz

Connection type - Cable with connector M8, 3-pin, 0.2 m

Switching output - PNP

Switching output detail - PNP

Output function - NO

Supply voltage - 10 V DC ... 30 V DC

Ripple - ≤ 20 % 1)

Voltage drop - ≤ 2 V 2)

Time delay before availability - ≤ 10 ms

Hysteresis - 1 % ... 15 %

Reproducibility - ≤ 2.5 % 3)

Temperature drift (of Sr) - ≤ 10 %

EMC - EN 60947-5-2

Continuous current (Ia) - ≤ 100 mA

Cable material - PUR

Cable diameter - Ø 2.5 mm

Short-circuit protection - ✔

MTTFD - 1,638 years

DCavg - 0 %

EU declaration of conformity - ✔

UK declaration of conformity - ✔

ACMA declaration of conformity - ✔

Moroccan declaration of conformity - ✔

China RoHS - ✔

cULus certificate - ✔

IO-Link certificate - ✔

ECLASS 5.1.4 - 27270101

ECLASS 6.0 - 27270101

ECLASS 7.0 - 27270101

ECLASS 8.0 - 27270101

ECLASS 9.0 - 27270101

ECLASS 10.0 - 27270101

ECLASS 11.0 - 27270101

ECLASS 12.0 - 27274001

ECLASS 13.0 - 27274001
