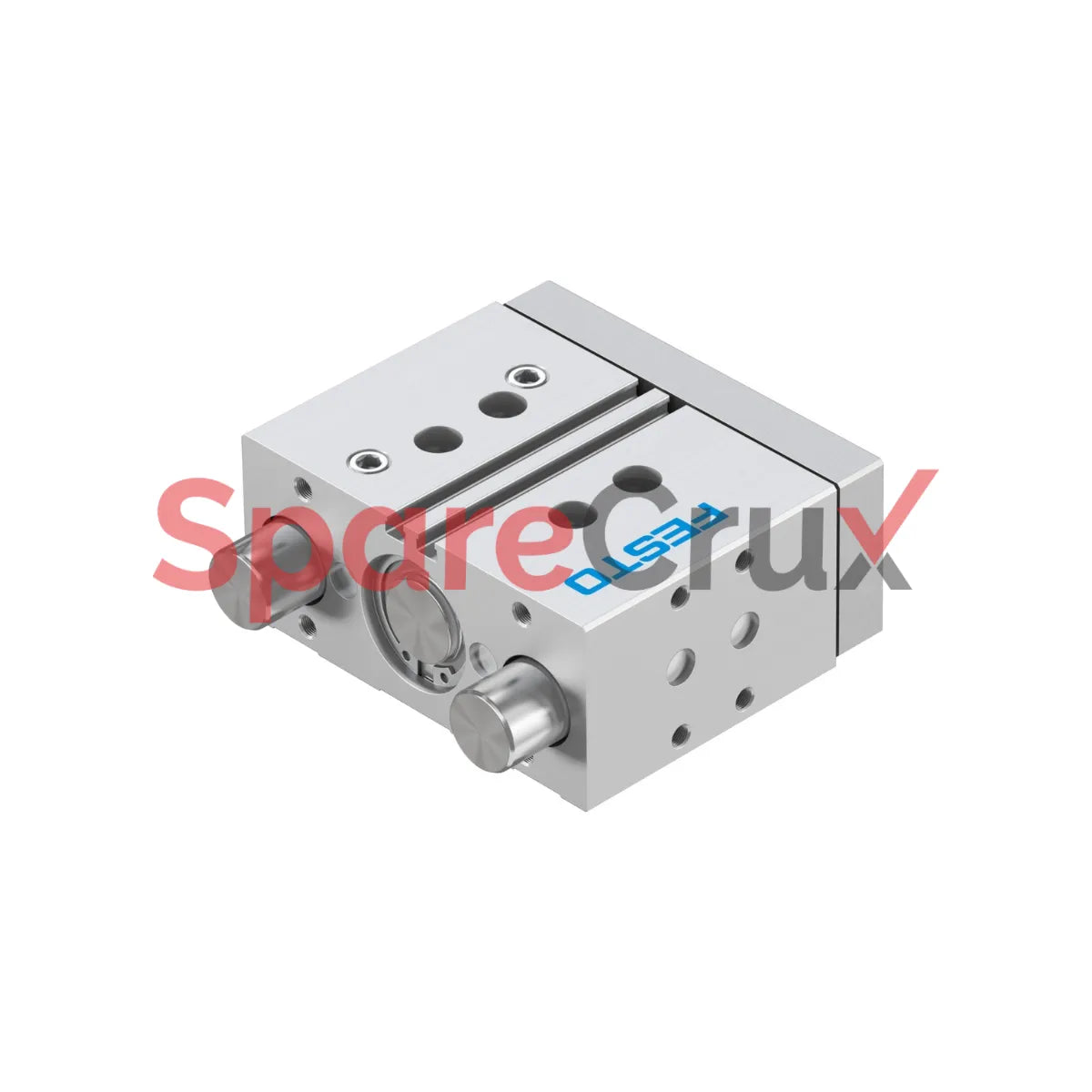

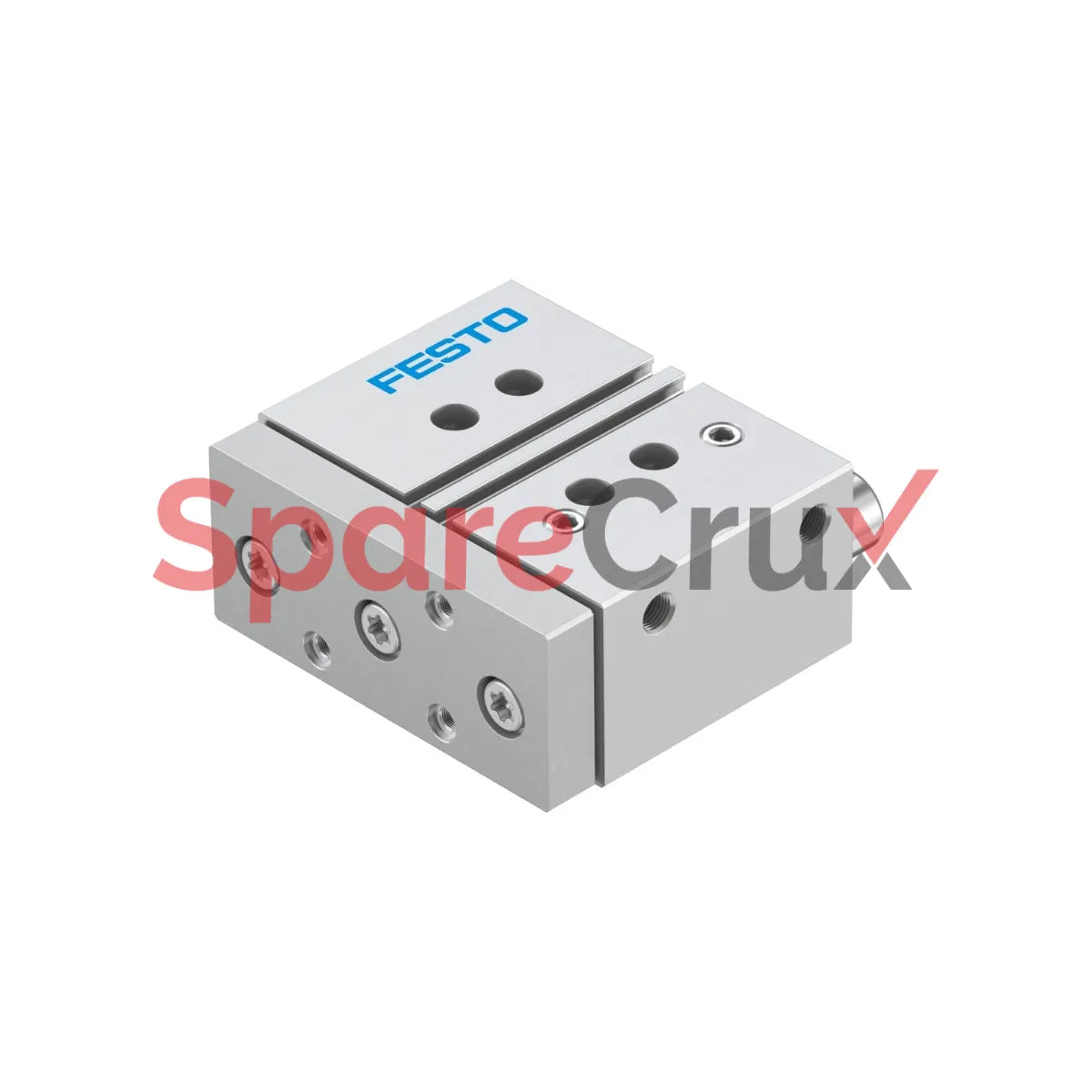

170856 | FESTO | Guided Drive DFM-32-30-P-A-GF

₹ 10,192.46

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

170856

Original Equipment Manufacturer

FESTO

説明
Parameter Value
Distance from centre of gravity of load to yoke plate xs 50 mm
Stroke 30 mm
Piston diameter 32 mm
Operating mode, drive unit Yoke
Cushioning Elastic cushioning rings/plates at both ends
Mounting position optional
Guide Plain-bearing guide
Design Guidance
Position detection Via proximity switch
Symbol 00991737
Operating pressure 0.15 MPa ... 1 MPa
Operating pressure 1.5 bar ... 10 bar
Max. speed 0.8 m/s
Mode of operation Double-acting
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC 1 - Low corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Cleanroom class Class 6 according to ISO 14644-1
Ambient temperature -20 °C ... 80 °C
Impact energy in end positions 0.4 J
Max. force Fy 1227 N
Max. force Fy static 1227 N
Max. force Fz 1227 N
Max. force Fz static 1227 N
Max. moment Mx 47.84 Nm
Max. torque Mx static 47.84 Nm
Max. moment My 24.53 Nm
Max. torque My static 24.53 Nm
Max. moment Mz 24.53 Nm
Max. torque Mz static 24.53 Nm
Max. permissible torque load Mx as a function of stroke 9.53 Nm
Max. effective load dependent upon stroke at defined distance xs 173 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke 415 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 482 N
Moving mass 1077 g
Product weight 1937 g
Alternative connections See product drawing
Pneumatic connection G1/8
Note on materials RoHS-compliant
Material cover Wrought aluminium alloy
Material seals NBR
Material housing Wrought aluminium alloy
Material piston rod High-alloy stainless steel
FESTO

170856 | FESTO | Guided Drive DFM-32-30-P-A-GF

₹ 10,192.46
Parameter Value
Distance from centre of gravity of load to yoke plate xs 50 mm
Stroke 30 mm
Piston diameter 32 mm
Operating mode, drive unit Yoke
Cushioning Elastic cushioning rings/plates at both ends
Mounting position optional
Guide Plain-bearing guide
Design Guidance
Position detection Via proximity switch
Symbol 00991737
Operating pressure 0.15 MPa ... 1 MPa
Operating pressure 1.5 bar ... 10 bar
Max. speed 0.8 m/s
Mode of operation Double-acting
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC 1 - Low corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Cleanroom class Class 6 according to ISO 14644-1
Ambient temperature -20 °C ... 80 °C
Impact energy in end positions 0.4 J
Max. force Fy 1227 N
Max. force Fy static 1227 N
Max. force Fz 1227 N
Max. force Fz static 1227 N
Max. moment Mx 47.84 Nm
Max. torque Mx static 47.84 Nm
Max. moment My 24.53 Nm
Max. torque My static 24.53 Nm
Max. moment Mz 24.53 Nm
Max. torque Mz static 24.53 Nm
Max. permissible torque load Mx as a function of stroke 9.53 Nm
Max. effective load dependent upon stroke at defined distance xs 173 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke 415 N
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 482 N
Moving mass 1077 g
Product weight 1937 g
Alternative connections See product drawing
Pneumatic connection G1/8
Note on materials RoHS-compliant
Material cover Wrought aluminium alloy
Material seals NBR
Material housing Wrought aluminium alloy
Material piston rod High-alloy stainless steel
