SPARECRUX is NOT an authorized distributor for BUSSMANN

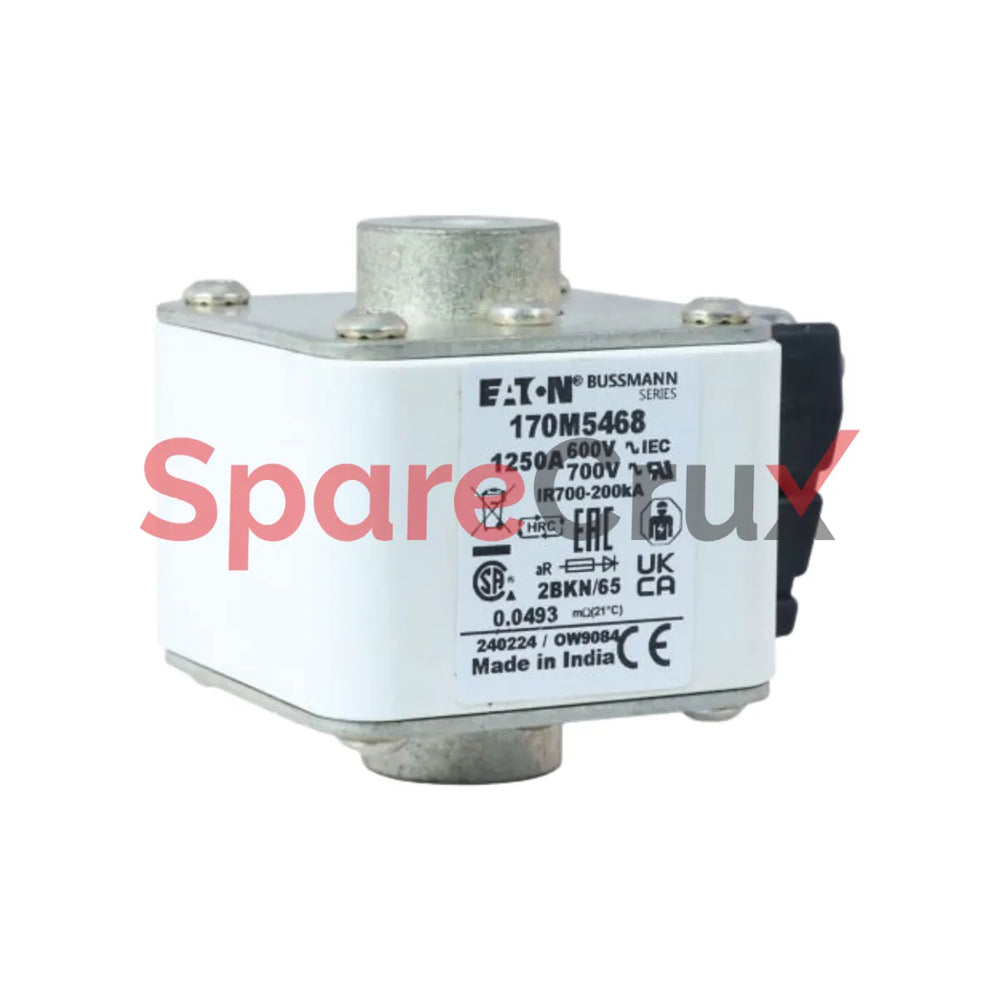

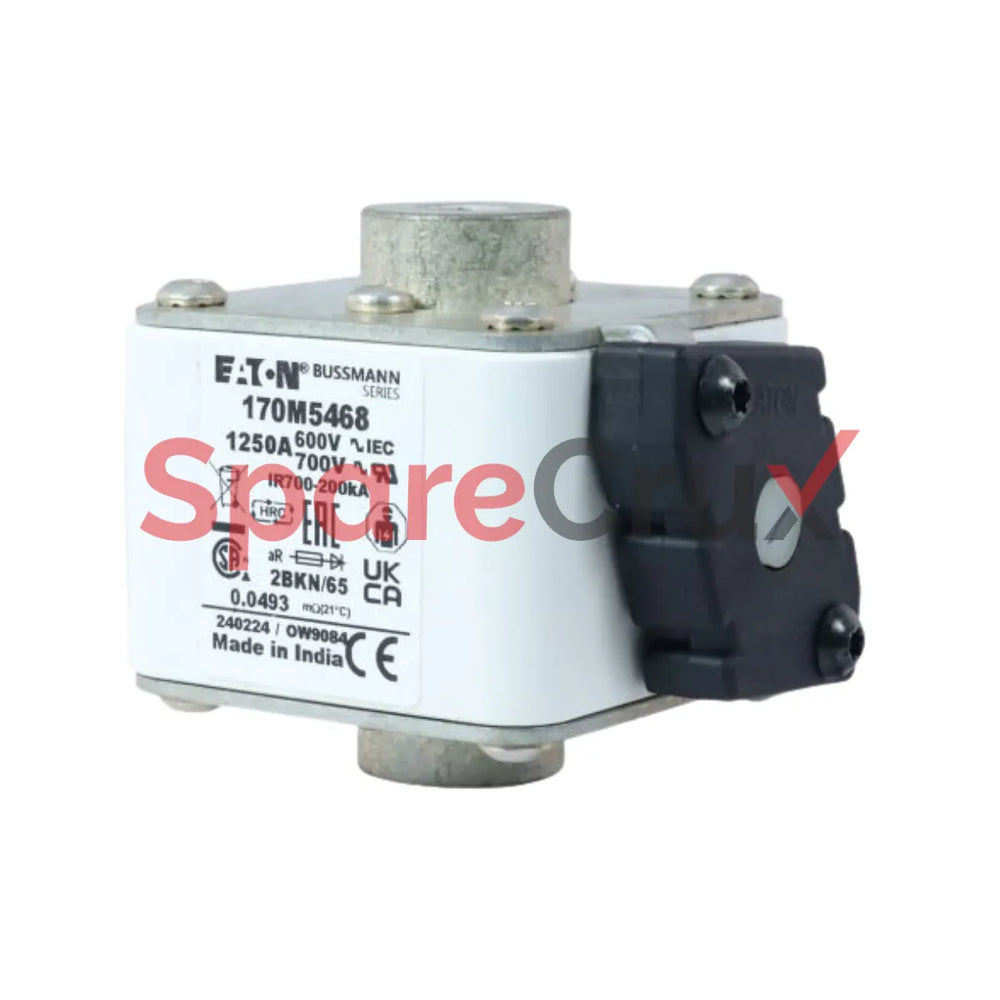

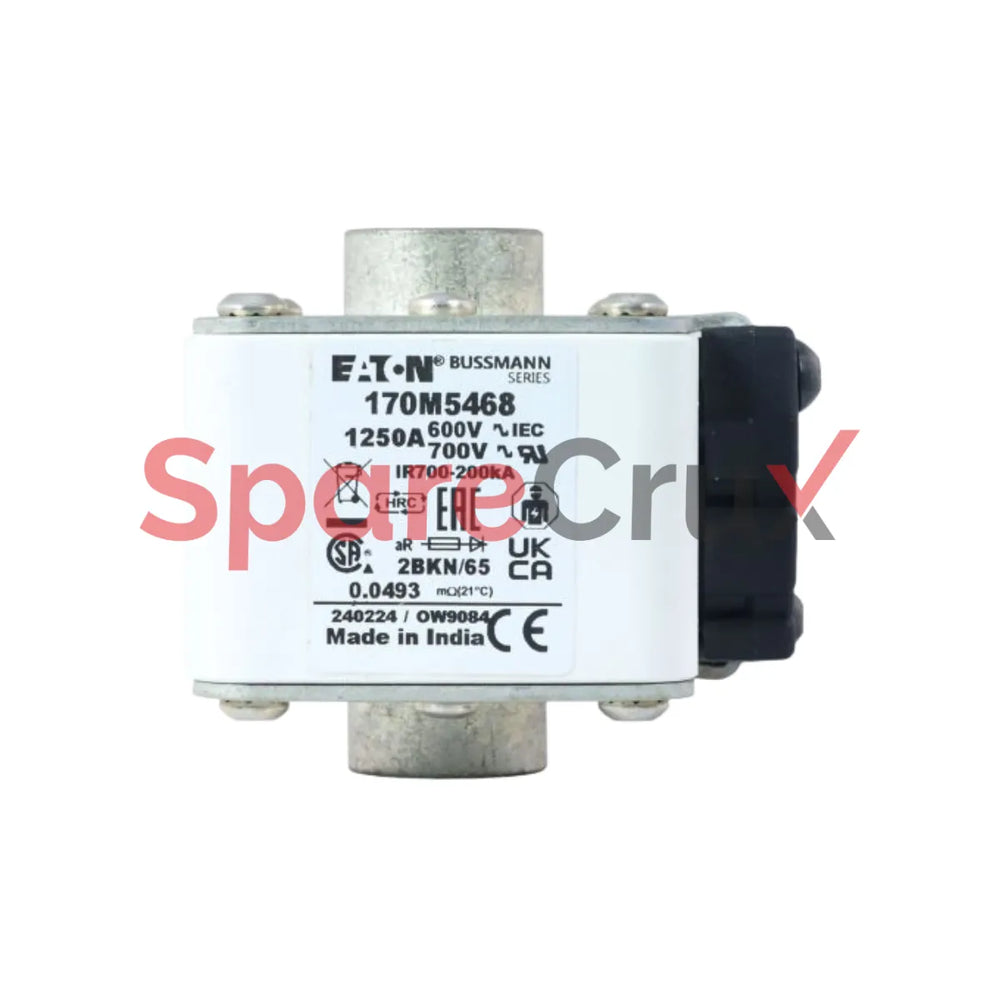

170M5468 | BUSSMANN | FUSE 1250A 600V 2BKN/65 AR UC

₹ 81,564.81

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

170M5468

Original Equipment Manufacturer

BUSSMANN

説明
Attribute Details
Product Name Eaton Bussmann series high speed square body fuse
Catalog Number 170M5468
Model Code FUSE 1250A 600V 2BKN/65 AR UC
UPC 051712261401
EAN 5027590457378
Product Length/Depth 77 mm
Product Height 59 mm
Product Width 51 mm
Product Weight 1237 g
Warranty No warranty
Compliances RoHS Compliant
Certifications UL Recognized
Global Catalog 170M5468
Used with Protection of DC common bus, DC drive, and reduced voltage starters
Amperage Rating 1250 A
Breaking capacity 200 kA
Fuse indicator Centre fuse status indicator
Insulated metal gripping lugs (IMGL) No
Utilization category aR (accompanied semiconductor protection)
Voltage type AC
Fuse size 2
Rated voltage AC 600 V
Center-to-center distance of connections 65.3 mm
Current type AC
Mounting dimension M10
Class Class aR
Clearing (I2T) 2,400,000 at 660 V
Watt losses 130 W
Fuse shape Square body, flush end contacts
Color None
Interrupt rating 200 kAIC
Fitted with Type K Indicator for micro
Construction size 2
Mounting method Flush
Packaging type Standard
Voltage rating 700 V (UL), 600 V (IEC)
Type Fuse
Application Semiconductor, DC Common bus, DC drives, power converters/rectifiers
Fuse type Flush end, BKN/Type K Indicator for Micro
Fuse system (according to IEC 60269) IEC 60269-4 flush end connections type A
