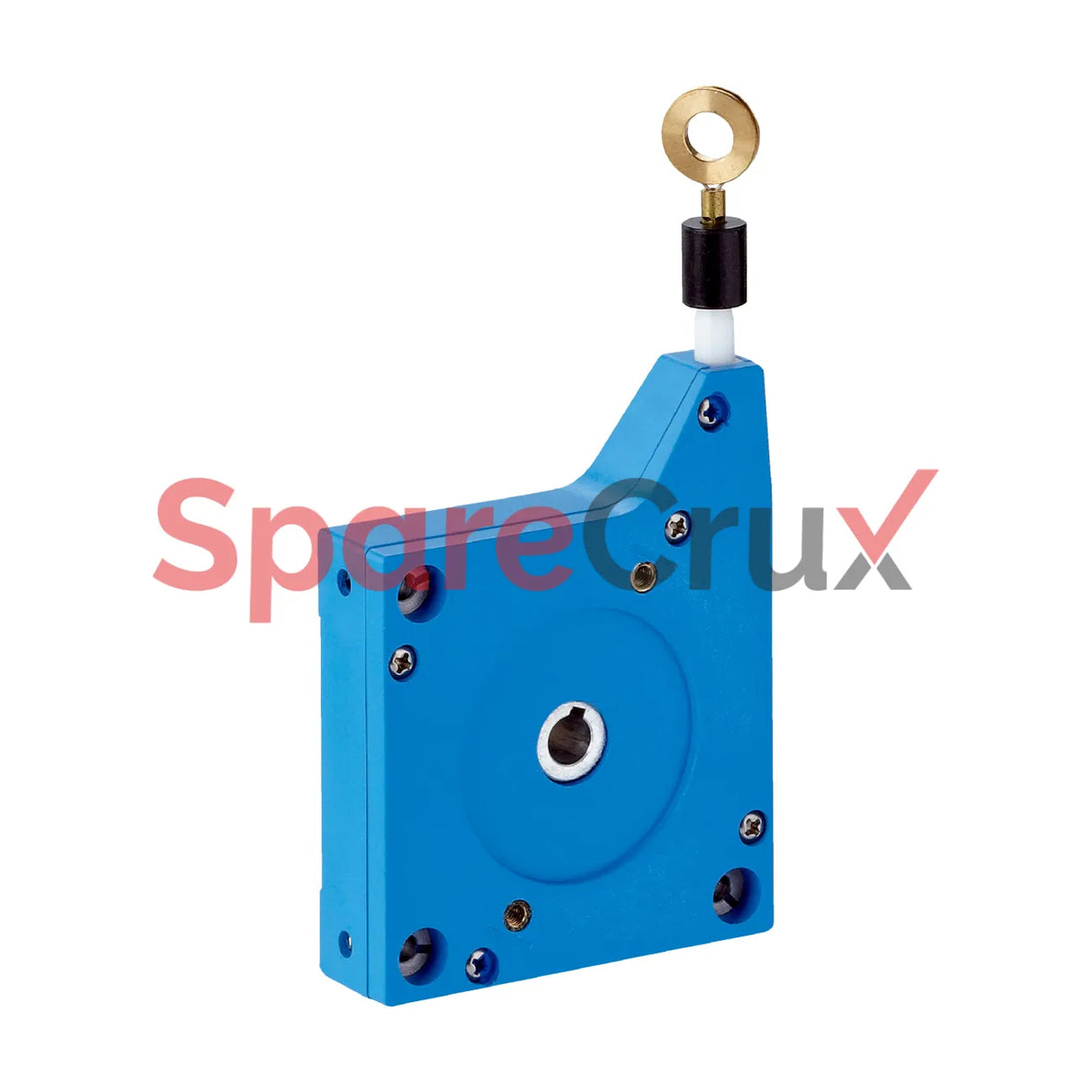

5324019 | SICK SENSORS | MRA-G055-101D4 Wire Draw Mechanism

₹ 21,189.60

  Available for backorder, with an estimated lead time of 8 to 12 weeks.

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

5324019

Original Equipment Manufacturer

SICK SENSORS

説明

Description EcoLine wire draw mechanism for servo flange with 6 mm shaft, measuring range 0 m ... 1.25 m
Items supplied Without encoder, 2 x fixing clamp (0061W01-00:21), 2 x fixing screw (DIN912-M3x6), 1 x Woodruff key DIN 6888 2x2.6
Measurement range 0 m 1.25 m
Reproducibility ≤ 0.2 mm
Linearity ≤ ± 2 mm
Hysteresis ≤ 0.4 mm
Weight 80 g Wire draw mechanism
Weight (measuring wire) 0.58 g/m
Measuring wire material Highly flexible stranded steel 1,4401 stainless steel V4A/PA 12-sheathed
Housing material Plastic, Noryl
Housing material, wire draw mechanism Plastic, Noryl
Length of wire pulled out per revolution 150 mm
