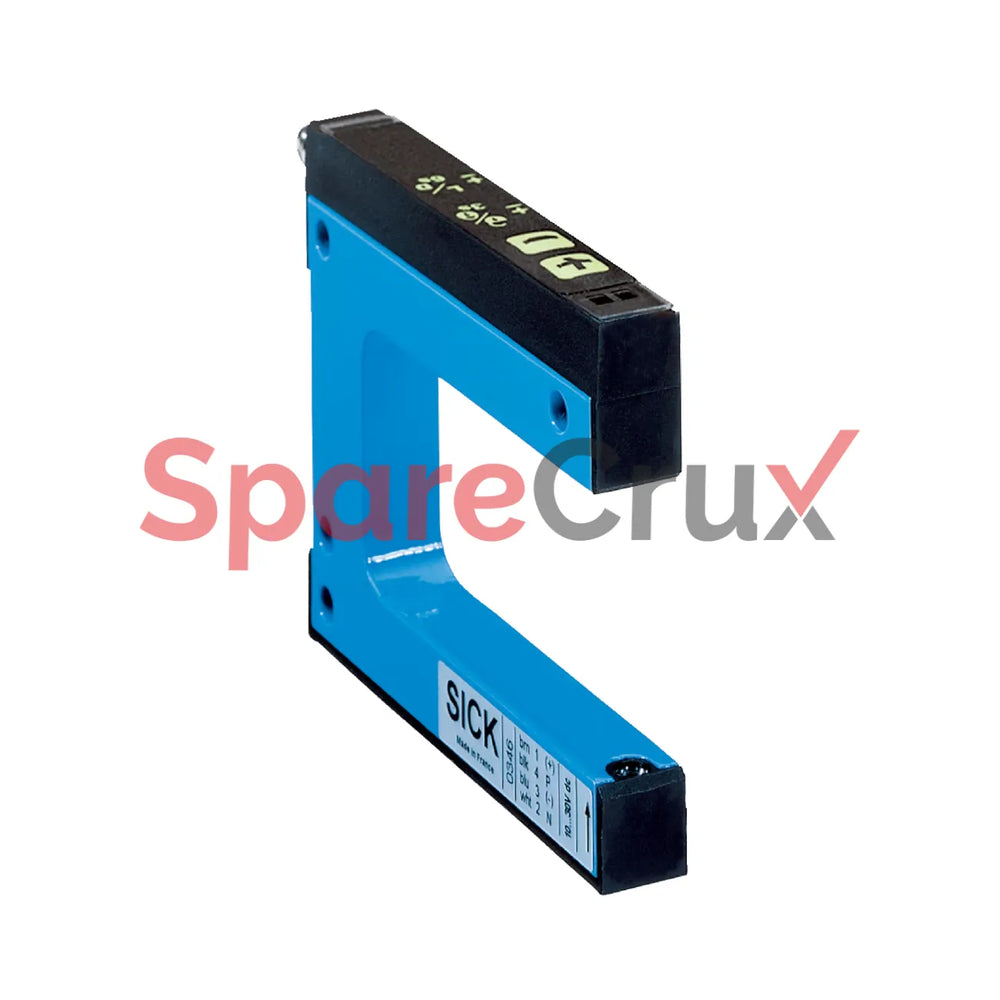

6028440 | SICK SENSORS | WF50-60B410 Fork Sensor

₹ 23,154.30
Get Best Price on WhatsApp

Product Description
Functional principle Optical detection principle
Dimensions (W x H x D) 10 mm x 80 mm x 74 mm
Fork width 50 mm
Fork depth 59 mm
Minimum detectable object (MDO) 0.2 mm
Label detection ✔
Light source LED, infrared, Infrared light
Supply voltage 10 V DC ... 30 V DC
Ripple < 10 %
Current consumption 40 mA
Switching frequency 10 kHz
Response time ≤ 100 µs
Stability of response time ± 20 µs
Jitter 40 µs



Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

SPARECRUX is NOT an authorized distributor for SICK SENSORS

Manufacturer Part Number (MPN)

6028440

Original Equipment Manufacturer

SICK SENSORS

PDF Product Datasheet

  • 100% Tested & Verified Products

  • GST Invoice Available

  • Warranty Included

  • Trusted by 5000+ Industrial Buyers

Functional principle - Optical detection principle

Dimensions (W x H x D) - 10 mm x 80 mm x 74 mm

Fork width - 50 mm

Fork depth - 59 mm

Light source - LED, Infrared light

Label detection - ✔

Minimum detectable object (MDO) - 0.2 mm

Adjustment - Plus/minus button (Sensitivity, light/dark switching, key lock)

Teach-in mode - —

Output function - Light/dark switching, selectable via button

Supply voltage - 10 V DC ... 30 V DC

Ripple - < 10 %

Current consumption - 40 mA

Initialization time - 100 ms

Switching frequency - 10 kHz

Response time - ≤ 100 µs

Stability of response time - ± 20 µs

Jitter - 40 µs

Switching output - PNP/NPN

Housing material - Aluminum

Weight - Approx. 36 g ... 160 g 1)

Not applicable for this product

EU declaration of conformity - ✔

UK declaration of conformity - ✔

ACMA declaration of conformity - ✔

Moroccan declaration of conformity - ✔

China RoHS - ✔

cULus certificate - ✔

Photobiological safety (IEC EN 62471) - ✔

ECLASS 5.1.4 - 27270909

ECLASS 6.0 - 27270909

ECLASS 7.0 - 27270909

ECLASS 8.0 - 27270909

ECLASS 9.0 - 27270909

ECLASS 10.0 - 27270909

ECLASS 11.0 - 27270909

ECLASS 12.0 - 27270909

ECLASS 13.0 - 27270909
