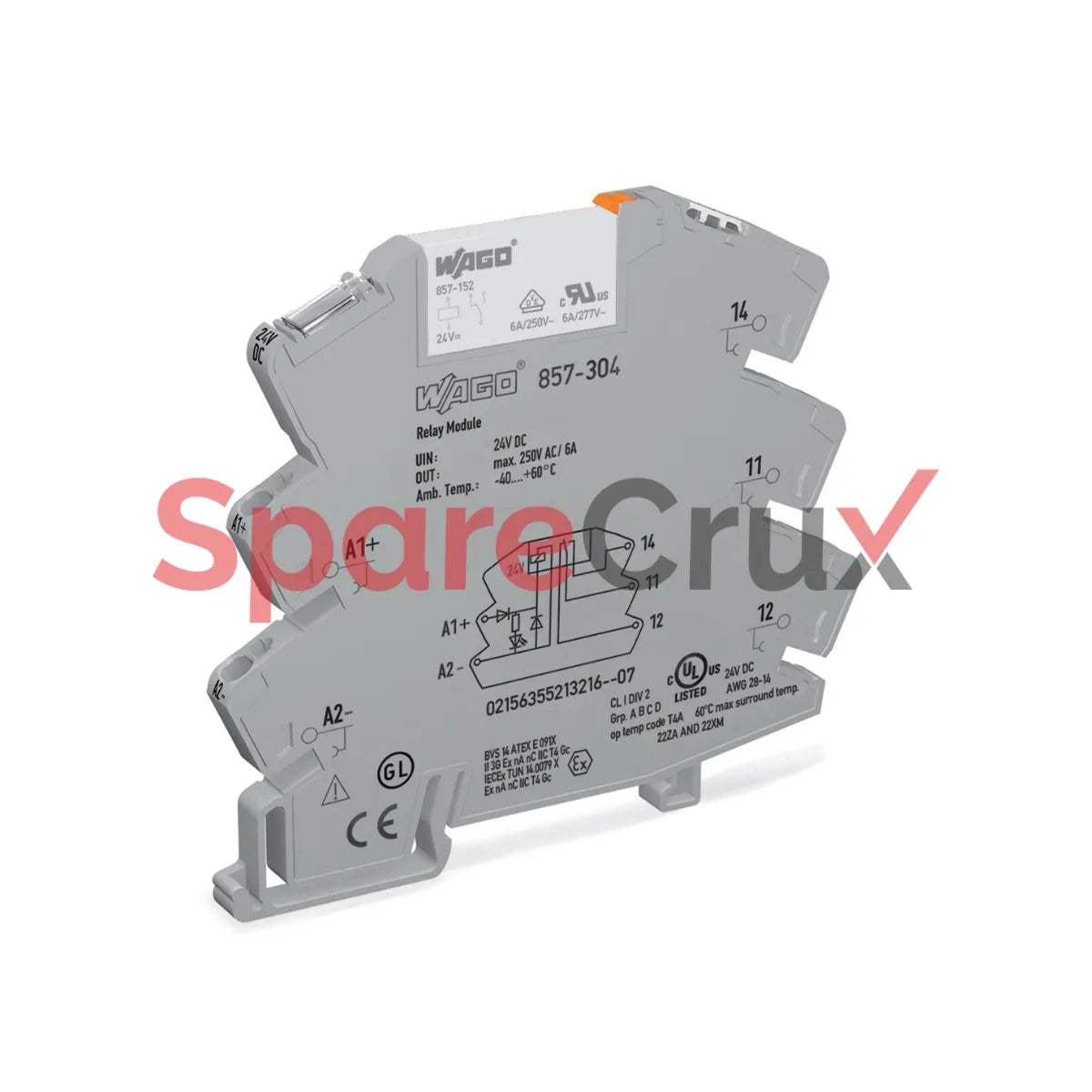

857-304 | WAGO | Relay Module, 24 VDC, 1 CO, 6 A, 6 mm, Yellow LED, Gray

₹ 2,669.56

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

857-304

Original Equipment Manufacturer

WAGO

説明
Property Details
Nominal input voltage (UN) 24 VDC
Input voltage range -15% … +20%
Nominal input current at UN 10 mA
Number of changeover contacts 1
Contact material (relay) AgSnO₂
Limiting continuous current 6 A
Inrush current (resistive) max. 20 A / 0.02 s (AC)
Switching voltage, max. 250 VAC
Switching power (resistive) max. AC: 1500 VA; DC: (see load limit curve)
Switching capacity AC-15: 3 A / 250 VAC; DC-13: 2 A / 24 VDC
Recommended minimum load 10 V / 10 mA; 24 V / 1 mA
Mounting type DIN-35 rail
Mounting position Horizontal (standing/lying); Vertical
Ambient temperature (operation at UN) -40 … +60 °C
Ambient temperature (storage) -40 … +70 °C
Processing temperature -25 … +50 °C
Temperature range of connection cable ≥ (Tambient + 30 K)
Relative humidity 5 … 85% (no condensation permissible)
Operating altitude (max.) 2000 m
