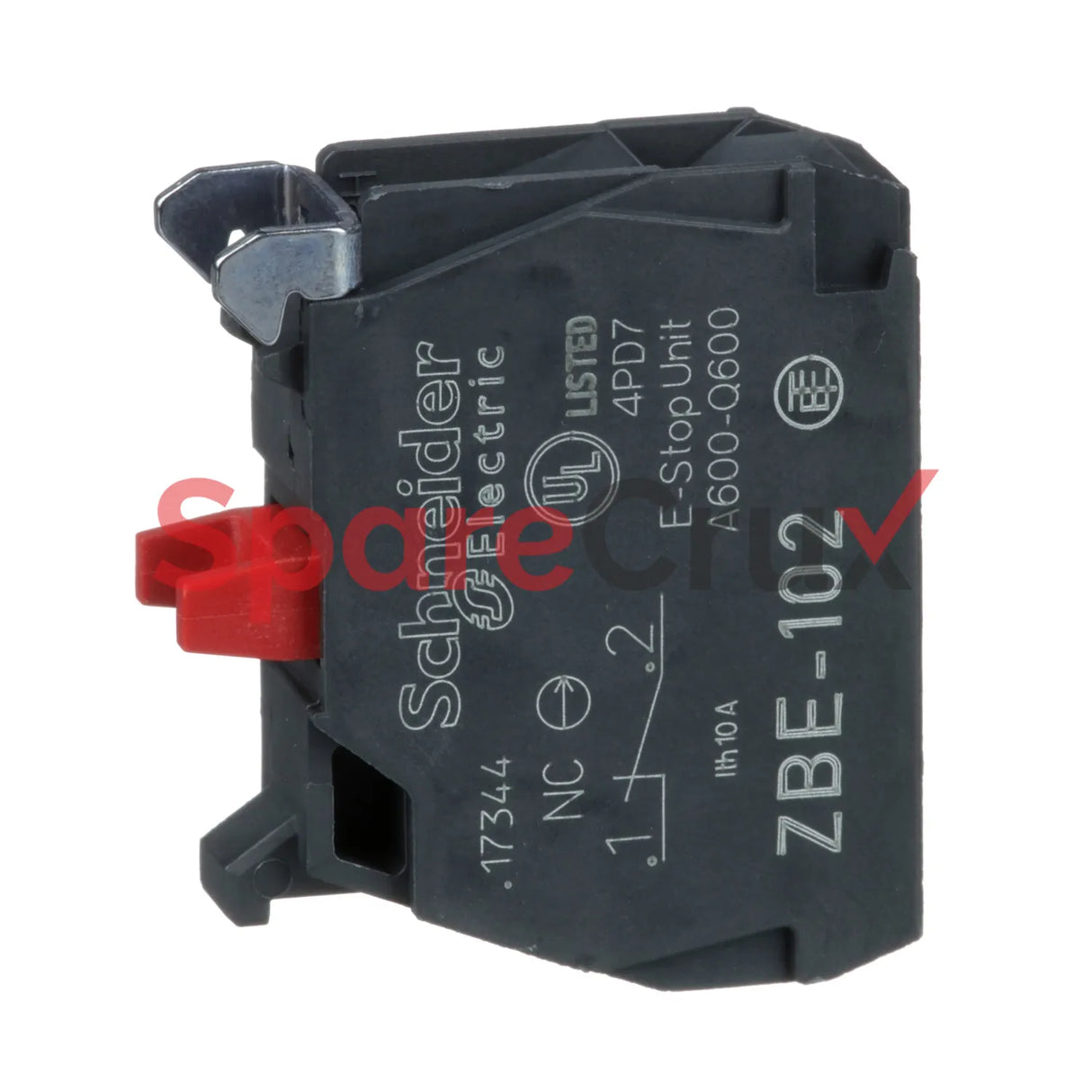

ZBE-102 | SCHNEIDER ELECTRIC | Single contact block, silver alloy, screw clamp terminal, 1 NC

₹ 843.35

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

ZBE-102

Original Equipment Manufacturer

SCHNEIDER ELECTRIC

説明
Range of product Harmony XB4, XB5
Product or component type Contact block
Device short name ZBE102
Sale per indivisible quantity 5
IP degree of protection IP20 (IEC 60529)
Contacts type and composition 1 NC
Contact operation Slow-break
Contact block type Single
Contacts usage Standard contacts
Connections – terminals Screw clamp ≤ 2 × 1.5 mm² with cable end; ≥ 1 × 0.22 mm² without cable end (EN 60947-1)
Positive opening Per EN/IEC 60947-5-1 Appendix K
Operating travel 1.5 mm (NC change); 4.3 mm (total travel)
Operating force 2 N (NC change)
Mechanical durability 10 000 000 cycles
Tightening torque 0.8…1.2 N·m (EN 60947-1)
Shape of screw head Pozidriv No 1; slotted Ø 4 mm & Ø 5.5 mm
Contacts material Silver alloy (AgNi)
Short-circuit protection 10 A gG fuse (IEC 60947-5-1)
Conventional free-air thermal current (Ith) 10 A (EN/IEC 60947-5-1)
Rated insulation voltage (Ui) 600 V (pollution degree 3)
Rated impulse withstand voltage (Uimp) 6 kV (EN 60947-1)
