SPARECRUX is NOT an authorized distributor for DANFOSS

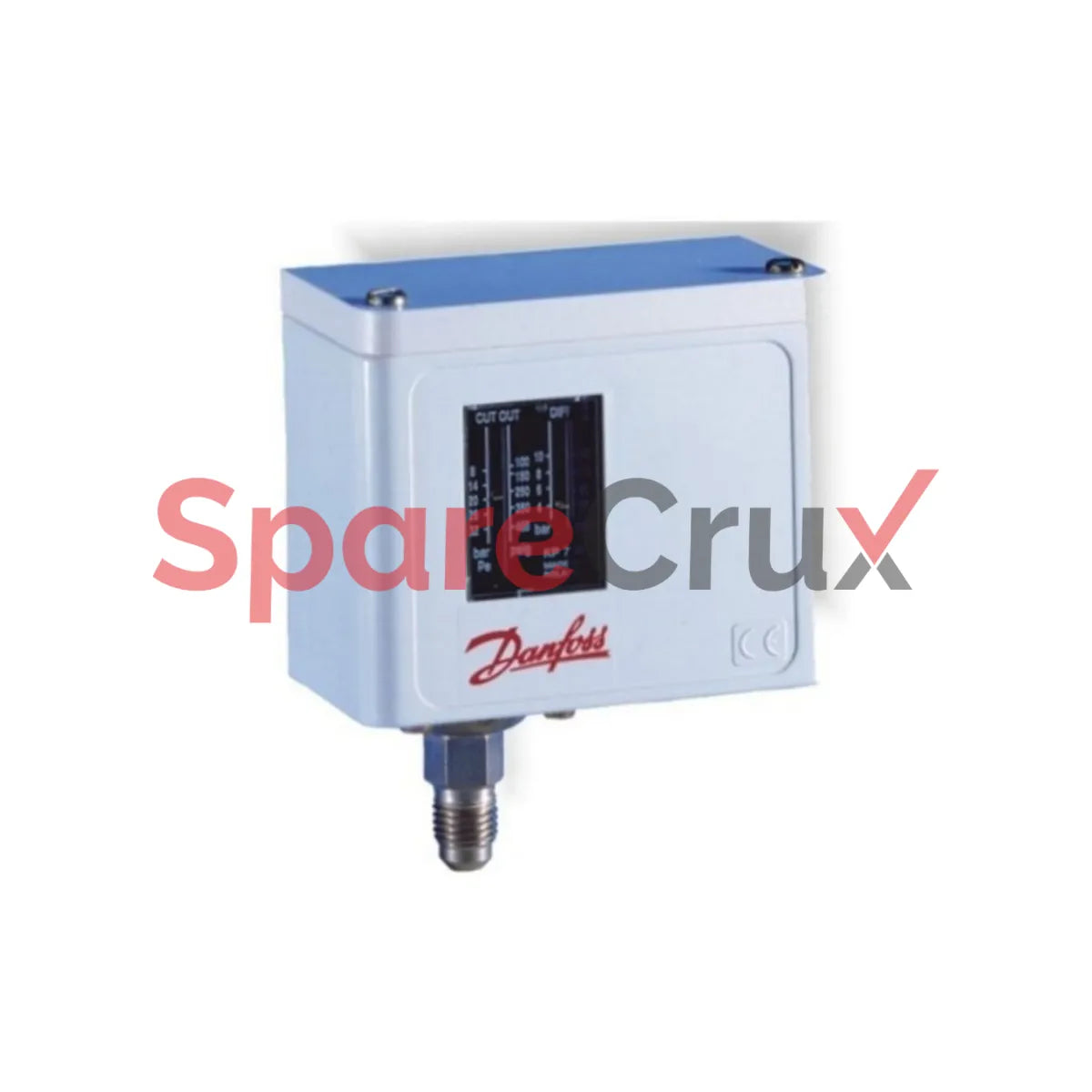

060110366 | DANFOSS | Pressure Switch, KP1

₹ 1,740.91

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

060110366

Original Equipment Manufacturer

DANFOSS

Description
Specification Details
Model 060-110366
Type Differential Pressure Switch (KP1)
Regulation Range -0.9 to 7.0 bar
Differential 0.7 bar
Contact Function SPDT (Single Pole Double Throw)
Reset Function Manual Minimum
Pressure Connection Type Flare
Pressure Connection Size 1/4 inch
Pressure Connection Standard DIN 8906
Pressure Male/Female Male
Enclosure Rating IP30
Max. Working Pressure 17.0 bar (245 psi)
Max. Test Pressure 20.0 bar (290 psi)
Ambient Temperature Range -25°C to +65°C
Ambient Temperature Note 80°C for max 120 minutes
Contact Rating AC15 = 10 A, 400 V; AC1 = 16 A, 400 V; AC3 = 16 A, 400 V; DC13 = 12 W, 220 V; LR = 112 A, 400 V
Electrical Connection Rubber cable gland (6–14 mm)
Electrical Standard EN 60947-5-1
Refrigerant Compatibility R134a, R513A, R515B, R22, R404A, R407A, R407C, R407F, R422B, R422D, R438A, R448A, R449A, R449B, R450A, R452A, R454C, R455A, R507A
Approvals CE, UL, CCC, RoHS, EAC, DNV GL, BV, LR, PED, PZH, RMRS, China RoHS, UKCA, cULus
Packing Format Multi-pack (36 units per pack)
Weight (Net) 0.291 kg
Weight (Gross) 0.328 kg
Volume 0.57 L
EAN/UPC 5702422017486
Product Line Air Conditioning and Commercial Refrigeration
DANFOSS

060110366 | DANFOSS | Pressure Switch, KP1

₹ 1,740.91
Specification Details
Model 060-110366
Type Differential Pressure Switch (KP1)
Regulation Range -0.9 to 7.0 bar
Differential 0.7 bar
Contact Function SPDT (Single Pole Double Throw)
Reset Function Manual Minimum
Pressure Connection Type Flare
Pressure Connection Size 1/4 inch
Pressure Connection Standard DIN 8906
Pressure Male/Female Male
Enclosure Rating IP30
Max. Working Pressure 17.0 bar (245 psi)
Max. Test Pressure 20.0 bar (290 psi)
Ambient Temperature Range -25°C to +65°C
Ambient Temperature Note 80°C for max 120 minutes
Contact Rating AC15 = 10 A, 400 V; AC1 = 16 A, 400 V; AC3 = 16 A, 400 V; DC13 = 12 W, 220 V; LR = 112 A, 400 V
Electrical Connection Rubber cable gland (6–14 mm)
Electrical Standard EN 60947-5-1
Refrigerant Compatibility R134a, R513A, R515B, R22, R404A, R407A, R407C, R407F, R422B, R422D, R438A, R448A, R449A, R449B, R450A, R452A, R454C, R455A, R507A
Approvals CE, UL, CCC, RoHS, EAC, DNV GL, BV, LR, PED, PZH, RMRS, China RoHS, UKCA, cULus
Packing Format Multi-pack (36 units per pack)
Weight (Net) 0.291 kg
Weight (Gross) 0.328 kg
Volume 0.57 L
EAN/UPC 5702422017486
Product Line Air Conditioning and Commercial Refrigeration
