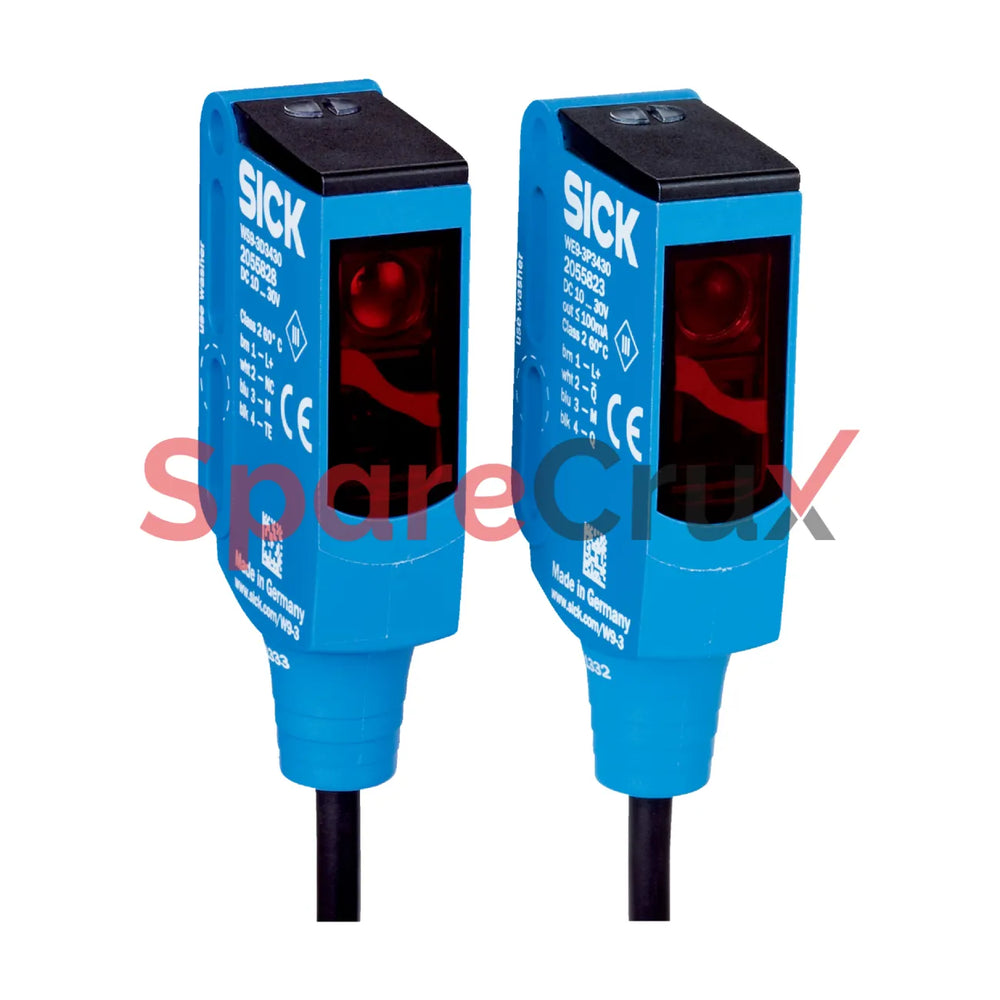

1049075 | SICK SENSORS | WSE9-3P1130 Through Beam Photoelectric Sensor

₹ 20,928.60

Get Best Price on WhatsApp

Product Description

Specification Details
Functional Principle Through-beam photoelectric sensor
Dimensions (W x H x D) 12.2 mm x 50 mm x 23.6 mm
Housing Design (Light Emission) Rectangular
Mounting Hole M3
Sensing Range Max. 0 m ... 10 m
Sensing Range 0 m ... 7 m
Type of Light Visible red light



Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


SPARECRUX is NOT an authorized distributor for SICK SENSORS

Manufacturer Part Number (MPN)

1049075

Original Equipment Manufacturer

SICK SENSORS

PDF Product Datasheet
  • 100% Tested & Verified Products

  • GST Invoice Available

  • Warranty Included

  • Trusted by 5000+ Industrial Buyers

Functional principle - Through-beam photoelectric sensor

Dimensions (W x H x D) - 12.2 mm x 50 mm x 23.6 mm

Housing design (light emission) - Rectangular

Mounting hole - M3

Sensing range max. - 0 m ... 10 m

Sensing range - 0 m ... 7 m

Type of light - Visible red light

Light source - PinPoint LED 1)

Light spot size (distance) - Ø 25 mm (1 m)

Wave length - 650 nm

Adjustment - None

Supply voltage UB - 10 V DC ... 30 V DC 1)

Ripple - < 5 Vpp 2)

Current consumption - 30 mA 3)

Switching output - PNP 4)

Output function - Complementary

Switching mode - Light/dark switching 4)

Output current Imax. - ≤ 100 mA 5)

Response time - < 0.5 ms 6)

Switching frequency - 1,000 Hz 7)

Connection type - Cable, 4-wire, 2 m 8)

Cable material - Plastic, PVC

Conductor cross section - 0.14 mm²

MTTFD - 968 years

DCavg - 0 %

EU declaration of conformity - ✔

UK declaration of conformity - ✔

ACMA declaration of conformity - ✔

Moroccan declaration of conformity - ✔

China RoHS - ✔

ECOLAB certificate - ✔

cULus certificate - ✔

Photobiological safety (DIN EN 62471) certificate - ✔

ECLASS 5.1.4 - 27270903

ECLASS 6.0 - 27270903

ECLASS 7.0 - 27270903

ECLASS 8.0 - 27270903

ECLASS 9.0 - 27270903

ECLASS 10.0 - 27270903

ECLASS 11.0 - 27270903

ECLASS 12.0 - 27270903

ECLASS 13.0 - 27270903

ECLASS 14.0 - 27270903

ECLASS 15.0 - 27270903
