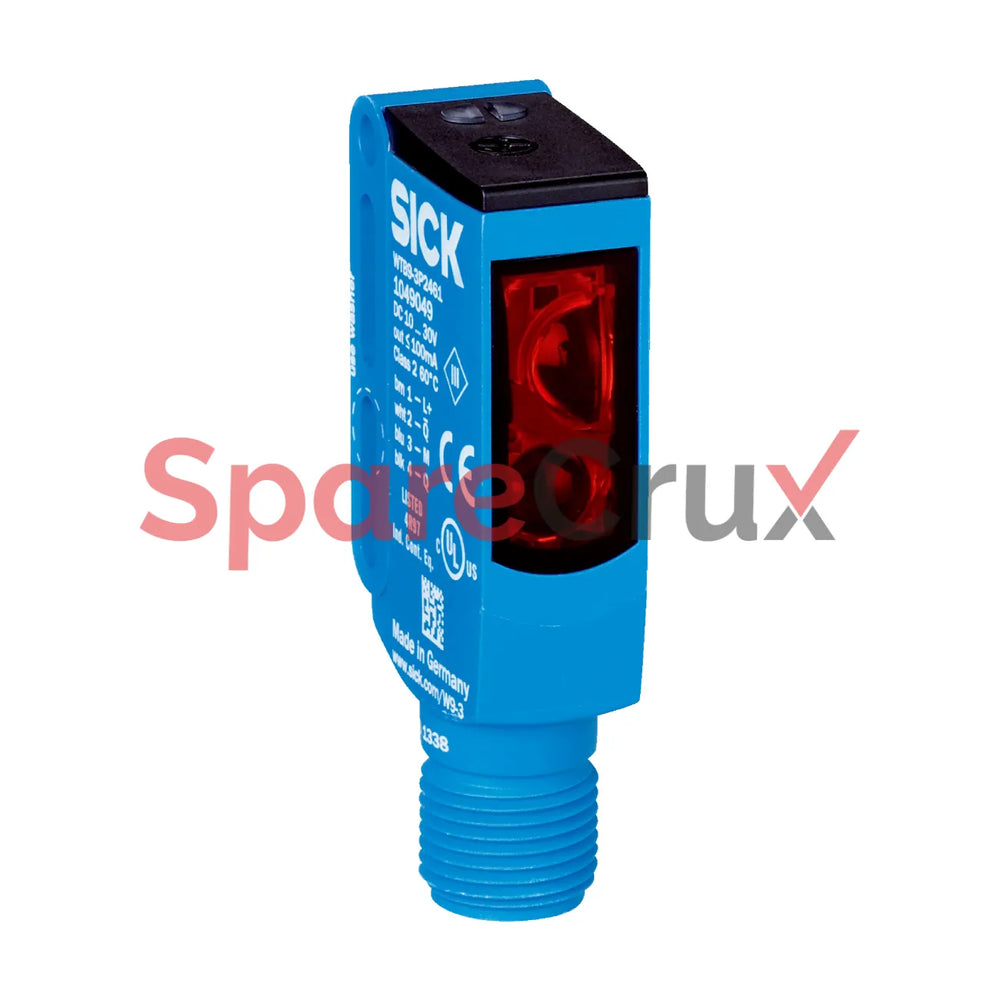

1052172 | SICK SENSORS | WTB9-3P2411S14 Photoelectric Proximity Sensor

₹ 19,744.20
Get Best Price on WhatsApp

Product Description
Specification Details
Functional Principle Photoelectric proximity sensor
Functional Principle Detail Background suppression
Dimensions (W x H x D) 12.2 mm x 52.2 mm x 23.6 mm
Housing Design (Light Emission) Rectangular
Mounting Hole M3
Sensing Range Max. 20 mm ... 800 mm
Sensing Range 20 mm ... 400 mm
Type of Light Infrared light
Supply Voltage UB 10 V DC ... 30 V DC
Ripple < 5 Vpp
Current Consumption 30 mA
Switching Output PNP
Output Function Complementary



Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

SPARECRUX is NOT an authorized distributor for SICK SENSORS

Manufacturer Part Number (MPN)

1052172

Original Equipment Manufacturer

SICK SENSORS

PDF Product Datasheet

  • 100% Tested & Verified Products

  • GST Invoice Available

  • Warranty Included

  • Trusted by 5000+ Industrial Buyers

Functional principle - Photoelectric proximity sensor

Functional principle detail - Background suppression

Dimensions (W x H x D) - 12.2 mm x 52.2 mm x 23.6 mm

Housing design (light emission) - Rectangular

Mounting hole - M3

Sensing range max. - 20 mm ... 800 mm 1)

Sensing range - 20 mm ... 400 mm 2)

Type of light - Infrared light

Light source - LED 3)

Light spot size (distance) - Ø 40 mm (400 mm)

Wave length - 850 nm

Adjustment - Potentiometer, 5 turns

Supply voltage UB - 10 V DC ... 30 V DC 1)

Ripple - < 5 Vpp 2)

Current consumption - 30 mA 3)

Switching output - PNP 4)

Output function - Complementary

Switching mode - Light/dark switching 4)

Output current Imax. - ≤ 100 mA 5)

Response time - < 2.5 ms 6)

Switching frequency - 200 Hz 7)

Connection type - Male connector M12, 4-pin

Not applicable for this product

EU declaration of conformity - ✔

UK declaration of conformity - ✔

ACMA declaration of conformity - ✔

Moroccan declaration of conformity - ✔

China RoHS - ✔

ECOLAB certificate - ✔

cULus certificate - ✔

Photobiological safety (DIN EN 62471) certificate - ✔

ECLASS 5.1.4 - 27270903

ECLASS 6.0 - 27270903

ECLASS 7.0 - 27270903

ECLASS 8.0 - 27270903

ECLASS 9.0 - 27270903

ECLASS 10.0 - 27270903

ECLASS 11.0 - 27270903

ECLASS 12.0 - 27270903

ECLASS 13.0 - 27270903

ECLASS 14.0 - 27270903

ECLASS 15.0 - 27270903
