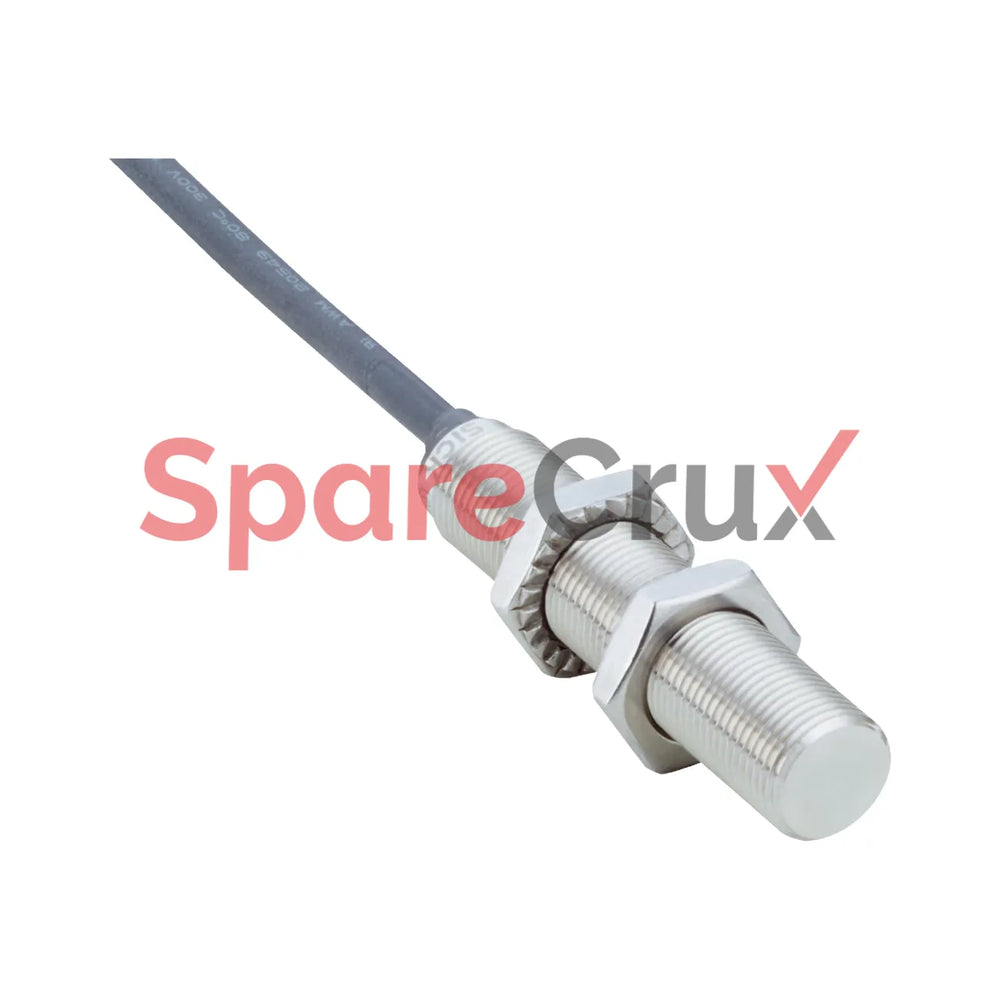

1093893 | SICK SENSORS | IMI12-04BPSVU2S Inductive Proximity Sensors

₹ 7,748.10
Get Best Price on WhatsApp

Product Description
Housing Metric
Thread size M12 x 1
Diameter Ø 12 mm
Sensing range Sn 4 mm
Safe sensing range Sa 3.24 mm
Installation type Flush
Switching frequency 75 Hz
Connection type Cable, 3-wire, 2 m
Housing material Stainless steel V2A, DIN 1.4305 / AISI 303
Sensing face material Stainless steel V2A, DIN 1.4305 / AISI 303
Housing length 58.8 mm
Thread length 54.7 mm
Tightening torque, max. ≤ 32 Nm



Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

SPARECRUX is NOT an authorized distributor for SICK SENSORS

Manufacturer Part Number (MPN)

1093893

Original Equipment Manufacturer

SICK SENSORS

PDF Product Datasheet

  • 100% Tested & Verified Products

  • GST Invoice Available

  • Warranty Included

  • Trusted by 5000+ Industrial Buyers

Housing - Metric

Thread size - M12 × 1

Diameter - Ø 12 mm

Sensing range (Sn) - 4 mm

Safe sensing range (Sa) - 3.24 mm

Installation type - Flush

Switching frequency - 75 Hz

Connection type - Cable, 3-wire, 2 m

Switching output - PNP

Switching output detail - PNP

Output function - NO (Normally Open)

Supply voltage - 10 V DC to 30 V DC

Ripple - ≤ 10%

Voltage drop - ≤ 2 V

Time delay before availability - ≤ 300 ms

Hysteresis - 1% to 20%

Reproducibility - ≤ 2%

Temperature drift (of Sr) - ≤ 10%

EMC - According to EN 60947-5-2

Continuous current (Ia) - ≤ 200 mA

No-load current - ≤ 10 mA

MTTFD - 1,892 years

DCavg - 0%

EU Declaration of Conformity - ✔

UK Declaration of Conformity - ✔

ACMA Declaration of Conformity - ✔

Moroccan Declaration of Conformity - ✔

China RoHS - ✔

IO-Link Certificate - ✔

ECLASS 5.1.4 - 27270101

ECLASS 6.0 - 27270101

ECLASS 7.0 - 27270101

ECLASS 8.0 - 27270101

ECLASS 9.0 - 27270101

ECLASS 10.0 - 27270101

ECLASS 11.0 - 27270101

ECLASS 12.0 - 27274001

ECLASS 13.0 - 27274001
