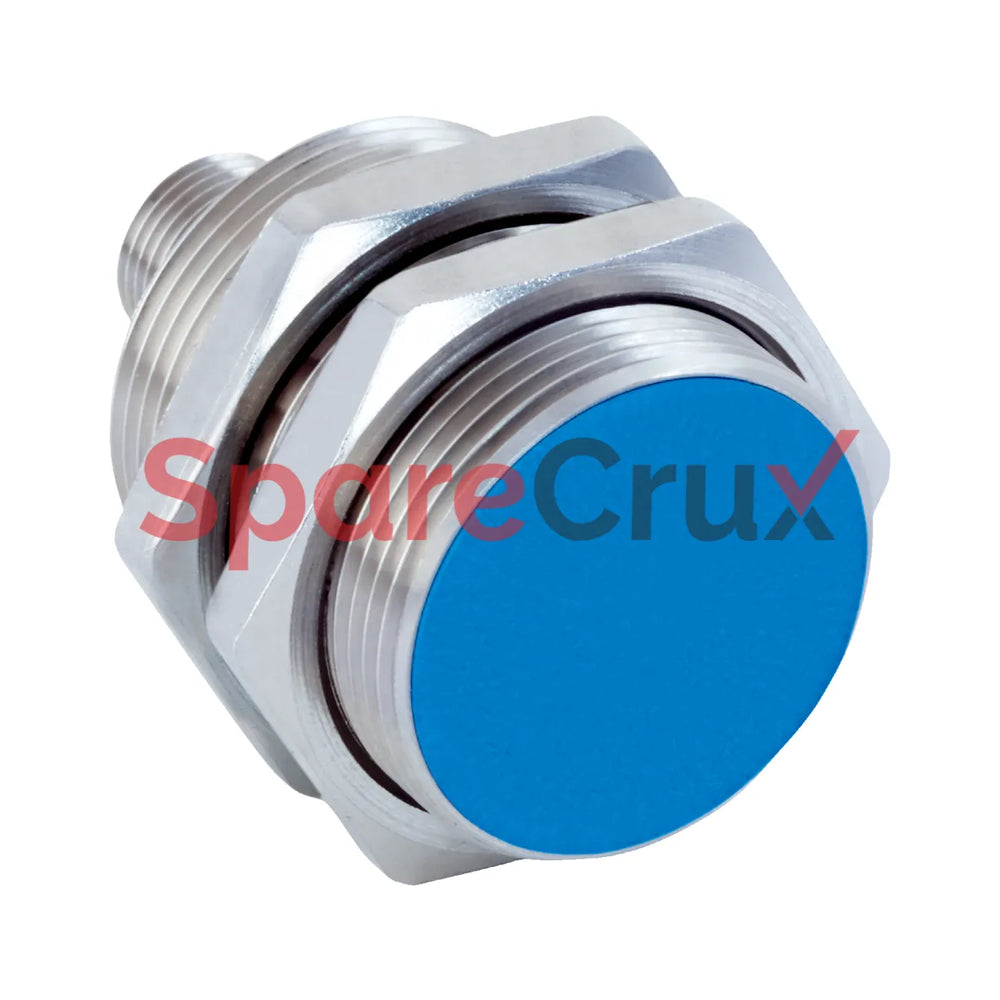

1135611 | SICK SENSORS | IMG30-15BPSZC0K Inductive Proximity Sensors

₹ 4,073.40

Get Best Price on WhatsApp

Product Description

Housing Metric
Housing Short-body
Thread size M30 x 1.5
Diameter Ø 30 mm
Sensing range Sn 15 mm
Safe sensing range Sa 12.15 mm
Installation type Flush
Switching frequency 500 Hz
Connection type Male connector M12, 4-pin
Housing length 50.7 mm
Thread length 32.7 mm
Tightening torque, max. ≤ 70 Nm
Protection class III



Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


SPARECRUX is NOT an authorized distributor for SICK SENSORS

Manufacturer Part Number (MPN)

1135611

Original Equipment Manufacturer

SICK SENSORS

PDF Product Datasheet
  • 100% Tested & Verified Products

  • GST Invoice Available

  • Warranty Included

  • Trusted by 5000+ Industrial Buyers

Housing - Short-body

Thread size - M30 × 1.5

Diameter - Ø 30 mm

Sensing range Sn - 15 mm

Safe sensing range Sa - 12.15 mm

Installation type - Flush

Switching frequency - 500 Hz

Connection type - Male connector M12, 4-pin

Switching output - PNP

Supply voltage - 10 V DC ... 30 V DC

Ripple - ≤ 10%

Voltage drop - ≤ 2 V 1)

Time delay before availability - ≤ 100 ms

Hysteresis - 3% ... 20%

Reproducibility - ≤ 2% 2) 3)

Temperature drift (of Sr) - ±10%

EMC - According to EN 60947-5-2

MTTFD - 1,820 years

DCavg - 0%

TM (mission time) - 20 years

EU declaration of conformity - ✔

UK declaration of conformity - ✔

ACMA declaration of conformity - ✔

Moroccan declaration of conformity - ✔

China RoHS - ✔

cULus certificate - ✔

ECLASS 5.1.4 - 27270101

ECLASS 6.0 - 27270101

ECLASS 7.0 - 27270101

ECLASS 8.0 - 27270101

ECLASS 9.0 - 27270101

ECLASS 10.0 - 27270101

ECLASS 11.0 - 27270101

ECLASS 12.0 - 27274001
