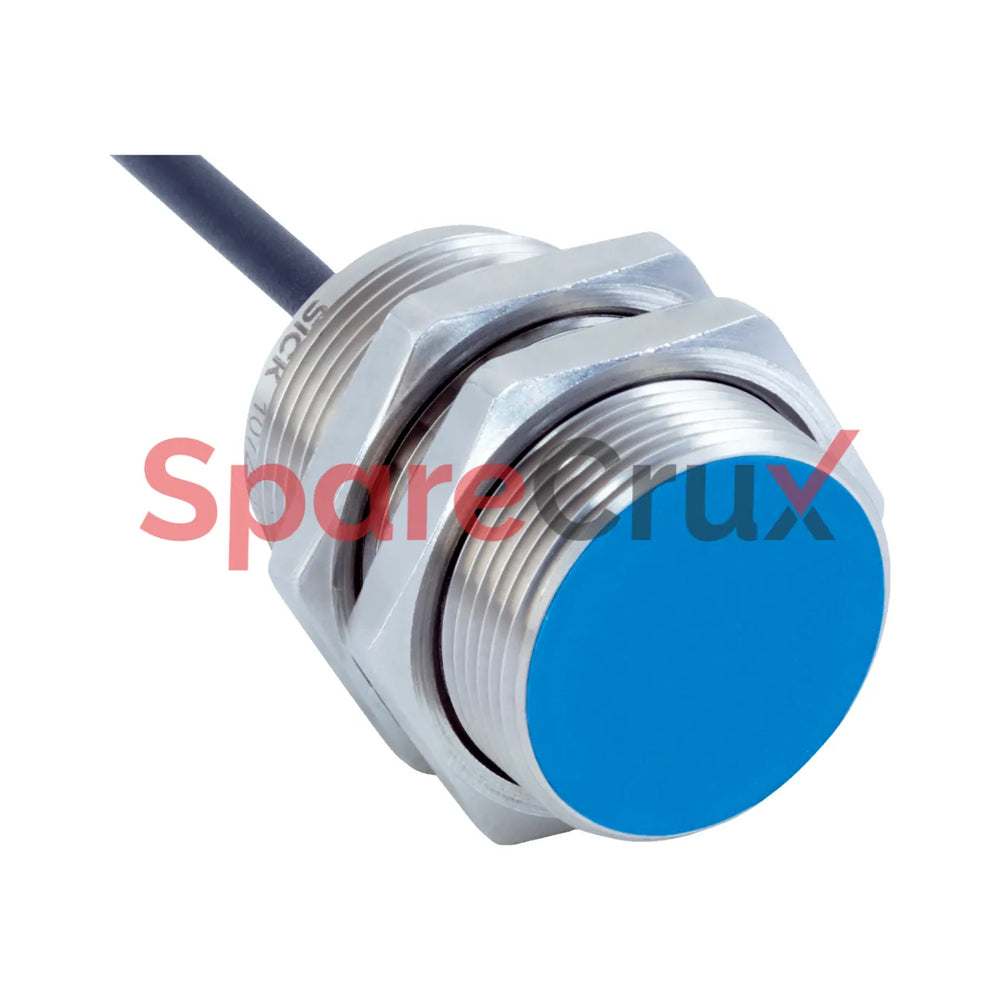

1135612 | SICK SENSORS | IMG30-15BPSZU2K Inductive Proximity Sensors

₹ 4,073.40
Get Best Price on WhatsApp

Product Description
Housing Metric
Housing Short-body
Thread size M30 x 1.5
Diameter Ø 30 mm
Sensing range Sn 15 mm
Safe sensing range Sa 12.15 mm
Installation type Flush
Switching frequency 500 Hz
Connection type Cable, 3-wire, 2 m
Housing material Nickel-plated brass
Sensing face material Plastic, LCP
Housing length 40.7 mm
Thread length 36.2 mm
Tightening torque, max. ≤ 70 Nm



Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

SPARECRUX is NOT an authorized distributor for SICK SENSORS

Manufacturer Part Number (MPN)

1135612

Original Equipment Manufacturer

SICK SENSORS

PDF Product Datasheet

  • 100% Tested & Verified Products

  • GST Invoice Available

  • Warranty Included

  • Trusted by 5000+ Industrial Buyers

Housing - Short-body

Thread size - M30 × 1.5

Diameter - Ø 30 mm

Sensing range Sn - 15 mm

Safe sensing range Sa - 12.15 mm

Installation type - Flush

Switching frequency - 500 Hz

Connection type - Cable, 3-wire, 2 m

Switching output - PNP

Supply voltage - 10 V DC ... 30 V DC

Ripple - ≤ 10%

Voltage drop - ≤ 2 V 1)

Time delay before availability - ≤ 100 ms

Hysteresis - 3% ... 20%

Reproducibility - ≤ 2% 2) 3)

Temperature drift (of Sr) - ±10%

EMC - According to EN 60947-5-2

Environmental test - Quick temperature change EN 60068-2-14, Na: TA = –25 °C, TB = 75 °C, t1 = 40 min, t2 < 10 s, 300 cycles

Corrosion test - Salt spray test EN 60068-2-52: severity 5, 4 cycles

MTTFD - 1,820 years

DCavg - 0%

TM (mission time) - 20 years

EU declaration of conformity - ✔

UK declaration of conformity - ✔

ACMA declaration of conformity - ✔

Moroccan declaration of conformity - ✔

China RoHS - ✔

cULus certificate - ✔

ECLASS 5.1.4 - 27270101

ECLASS 6.0 - 27270101

ECLASS 7.0 - 27270101

ECLASS 8.0 - 27270101

ECLASS 9.0 - 27270101

ECLASS 10.0 - 27270101

ECLASS 11.0 - 27270101

ECLASS 12.0 - 27274001
