SPARECRUX is NOT an authorized distributor for FESTO

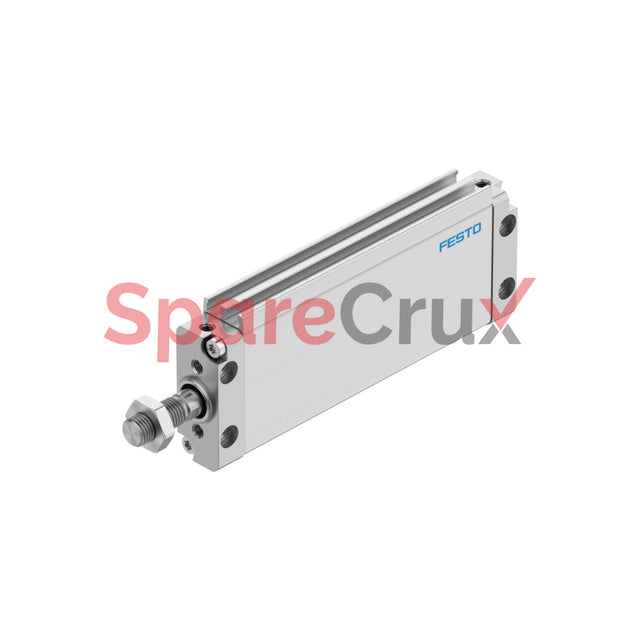

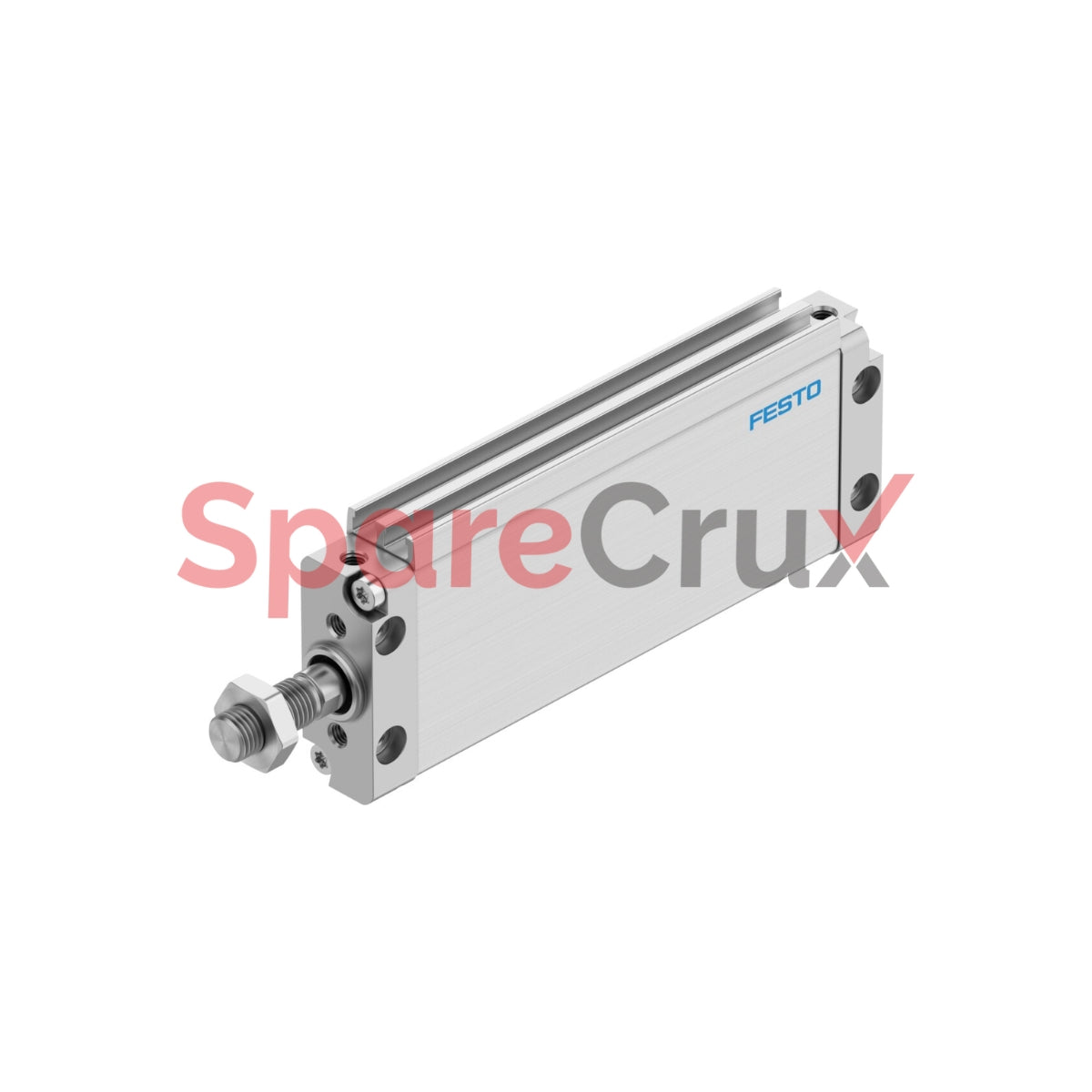

161254 | FESTO | DZF-25-80-A-P-A Flat Cylinder

₹ 32,000.00

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

161254

Original Equipment Manufacturer

FESTO

Description
Parameter Specification
Brand Festo
Model 161254
Type Flat pneumatic cylinder
Series DZF
Bore Diameter 25 mm
Stroke 80 mm
Operation Double-acting
Design Flat / compact body
Piston Type Oval piston (anti-rotation design)
Mounting Position Any
Cushioning Elastic cushioning rings/plates at both ends
Operating Pressure 1 – 10 bar
Operating Medium Compressed air (ISO 8573-1:2010 [7:4:4])
Port Size M5
Rod Thread M10 × 1.25
Position Detection Proximity sensor compatible
Anti-rotation Yes (oval piston design)
Max Torque Protection ~0.5 Nm
Max Speed ~0.8 m/s
Material Aluminum housing, steel rod
Weight ~0.33 kg
