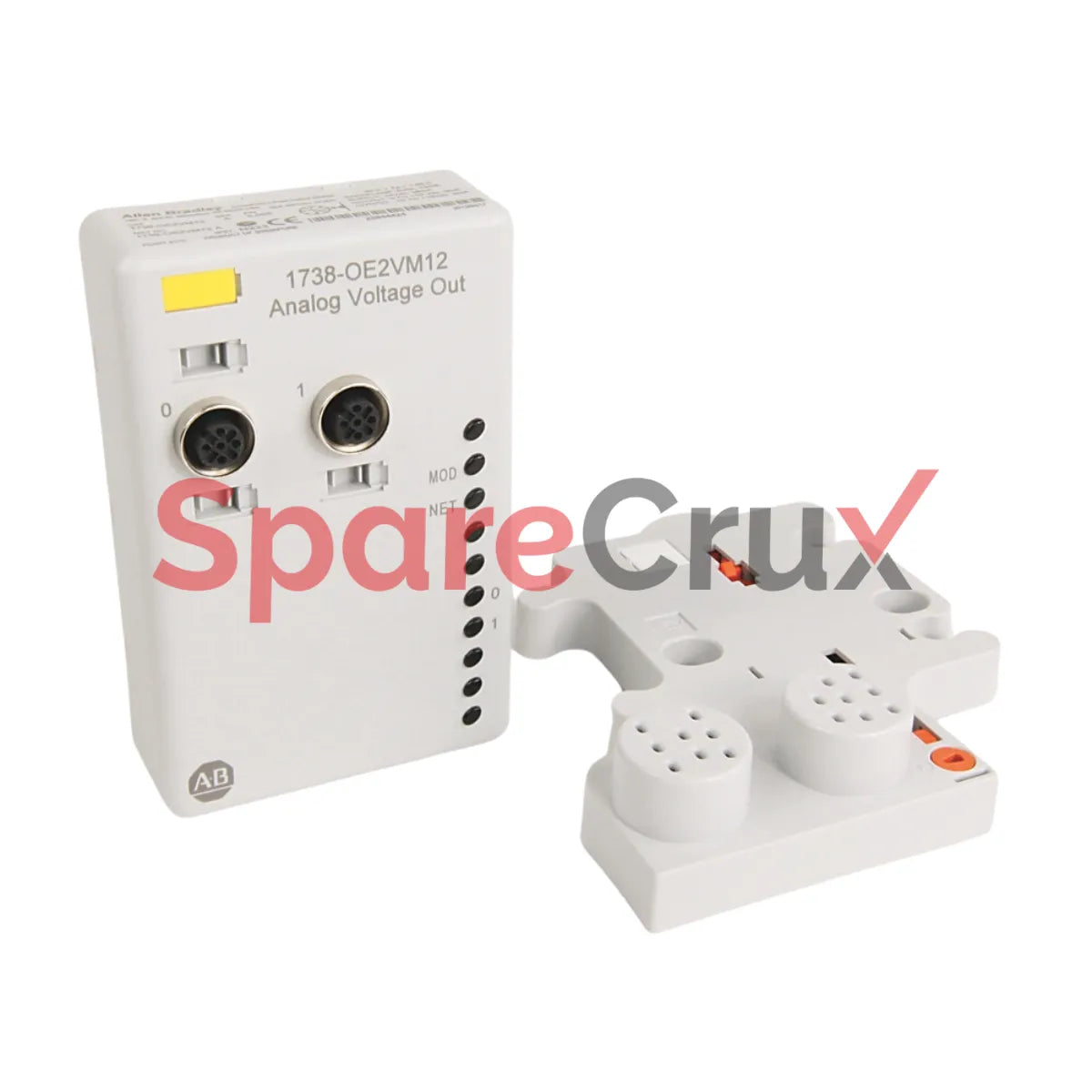

1738-OE2VM12 | ALLEN BRADLEY | ArmorPoint I/O 2-Channel Voltage Output Module with M12 Connectors

₹ 26,538.69

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.

Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

1738-OE2VM12

Original Equipment Manufacturer

ALLEN BRADLEY

Description
Attribute Value
Number of Outputs 2 single-ended, non-isolated
Output Voltage Range 0…10V DC
Resolution 12 bits – 2.5 mV/count
Absolute Accuracy 0.1% full scale @ 25 °C
Accuracy Drift with Temperature 5 ppm/°C
Current Load on Output (Maximum) 3 mA
Conversion Type Digital-to-analog converter
Conversion Rate 20 μs
Data Format Signed integer
Calibration Factory-calibrated
Power Dissipation 1.23 W (750 Ω load on each output); 1.83 W (0 Ω load on each output) at 28.8V DC
Dimensions (HxWxD) 31.75 x 66.80 x 107.95 mm (1.25 x 2.63 x 4.25 in.)
Weight 0.289 kg (0.637 lb)
LED Indicators 1 green/red – module status indicator, logic side; 1 green/red – network status indicator, logic side; 2 green/red – output status indicators, logic side
Wiring Category 1 – on signal ports
Keyswitch Position 4
Enclosure Type Rating Meets IP65/66/67 (when marked)
