SPARECRUX is NOT an authorized distributor for PHOENIX CONTACT

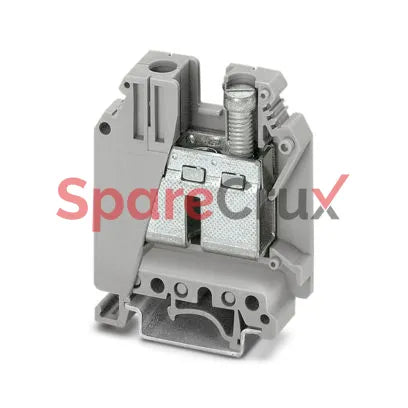

3008012 | PHOENIX CONTACT | Feed-Through Terminal Block

₹ 30,948.75

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

3008012

Original Equipment Manufacturer

PHOENIX CONTACT

Description

Product type Feed-through terminal block
Product family UK
Number of connections 2
Number of rows 1
Potentials 1
Rated surge voltage 8 kV
Maximum power dissipation for nominal condition 4.06 W
Number of connections per level 2
Nominal cross section 35 mm²
Rated cross section AWG 2
Connection method Screw connection
Nominal current 125 A
Color gray (RAL 7042)
Flammability rating according to UL 94 V0
Insulating material group I
Insulating material PA
Static insulating material application in cold -60 °C
