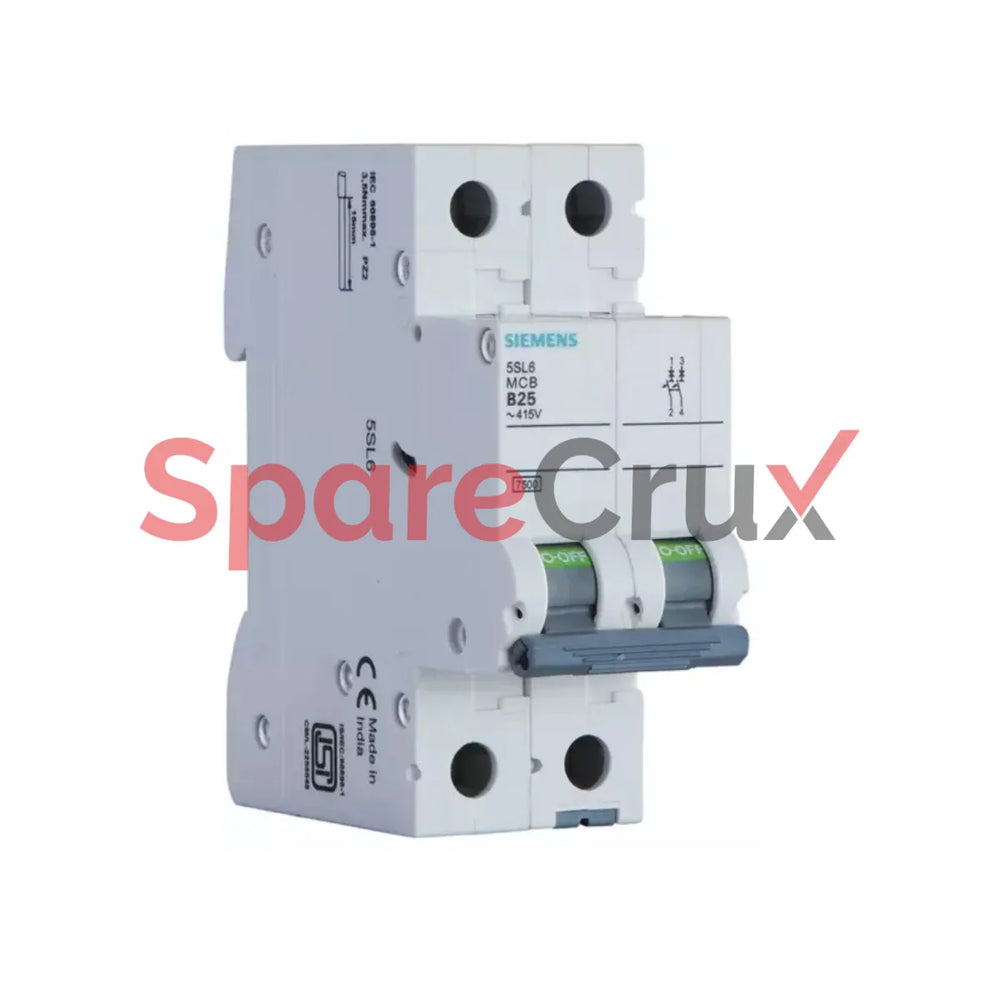

5SL4225-7RC | SIEMENS | 25 A Two Pole MCB

₹ 740.05

Warranty

We provide a 1-year warranty from the date of purchase for new products. Additionally, surplus / used items come with a 30-day warranty.

Delivery and Shipping

We aim to process orders within 5-7 business days. Shipping options vary by location with tracking provided; international shipping available with customs duties responsibility on customers.


Enquire Now
Interested in this product? Submit your enquiry by entering your details.

Manufacturer Part Number (MPN)

5SL4225-7RC

Original Equipment Manufacturer

SIEMENS

Description

Product Type Miniature Circuit Breaker (MCB)
Model Number 5SL42257RC
Rated Current 25 A
Curve Type C
Insulation Voltage 250/440 V AC
Protection Class IP-20
Relative Humidity 95%
Applied Connection Torque 2–3 Nm
Standard IS/IEC 60898-1:2002
Features Highly effective touch protection against accidental contact.
Ergonomically designed lever for effortless switching.
Patented SLR (Slide Latch-Release) for tool-free removal from DIN rail.
Allows individual MCB removal from bus mounted assembly.
Firm mounting of Bus bar with front access to wires for safer installation.
Color-coded ON-OFF embedded on grey lever for exact switching position.
Modular Width 2 (18 mm/module)
Breaking Capacity 7.5 kA
Ambient Temperature -25°C to +55°C
Frequency 50/60 Hz
Rated Voltage 240/415 V
Number of Poles 2 Pole
Brand Siemens
